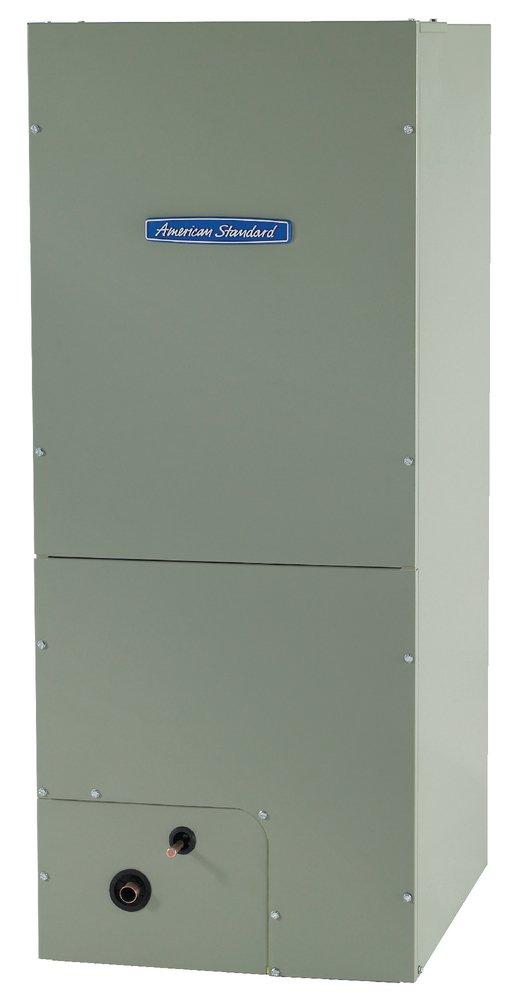

American Standard TEM6B0C60H51SA Silver Series Air Handler 5.0 Ton (57.4 in L x 23.5 in W x 21.1 in H) TEM6B0C60H51SA

Product Description

American Standard TEM6B0C60H51SA is a Silver Series convertible air handler with a 5.0 ton nominal capacity. It features a variable-speed ECM motor and Vortica air blower supplying up to 2,000 cfm, TXV refrigeration control for R-410A systems, and an all-aluminum coil to reduce refrigerant leak risk. The painted metal cabinet includes captured foil-faced insulation and polymer drain pans and supports upflow, downflow, and horizontal left/right installations.

• Variable-speed ECM motor and Vortica air blower providing up to 2,000 cfm airflow
• Convertible four-way configuration: upflow, downflow, horizontal left/right
• All-aluminum coil with TXV refrigeration control for R-410A; painted metal cabinet with captured foil-faced insulation and polymer drain pans

Product Highlights

5.0 ton convertible air handler with ECM motor, Vortica airflow, all-aluminum coil, and TXV control for R-410A

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: TEM6B0C60H51SA

Technical Specifications

• Manufacturer: Trane International Inc
• Brand: American Standard
• MPN: TEM6B0C60H51SA
• Part Number: 385529
• Model: TEM6
• Series: Silver Series
• Tonnage: 5.0 Ton
• BTU Rating: 60,000 Btu/hr
• CFM Rating: 2,000 cfm
• Configuration: Upflow, Downflow, Horizontal Left/Right
• Dimensions: 57.4 in L x 23.5 in W x 21.1 in H
• Width: 23.5 in
• Depth: 21.1 in
• Motor Type: ECM (variable-speed)
• Blower Type: Vortica variable-speed
• Fan Speeds: 16
• Horsepower: 3/4 hp
• AMP: 6.8
• Phase: Single Phase
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Power Source: Electric
• Refrigerant Type: R-410A
• Refrigeration Control: TXV
• Coil Type: All-aluminum coil
• Material: Painted metal
• Finish: Painted
• Number of Stages: Single
• Rotational Speed: Variable rpm
• Weight: 174 lb
• Liquid Line OD: 3/8 in
• MBH: 60
• A2L Compatible: No
• UL Listed: No
• Collection: TEM6 Series
