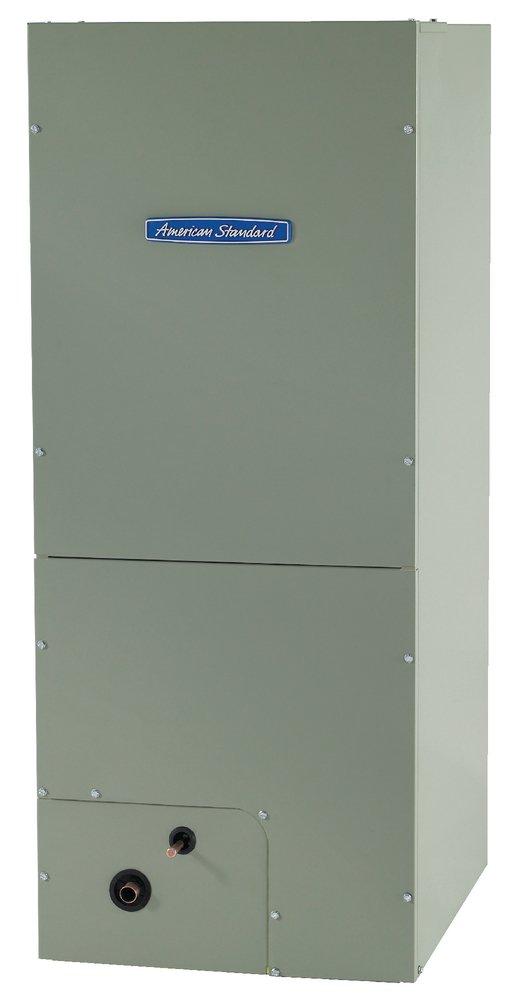

American Standard TEM6A0C48H41SC Air Handler 4 Ton (48,000 Btu/hr) ATEM6A0C48H41SC

Product Description

The American Standard TEM6A0C48H41SC is a TEM6 series air handler with a nominal 4 ton (48,000 Btu/hr) capacity, designed for 208/230 V, 60 Hz single-phase systems. It features a multi-position 4-way cabinet for downflow, upflow, horizontal left and right installations, brazed connections for R-410A refrigerant, and a 16-speed ECM blower.

• 16-speed ECM motor / variable-speed blower; 3/4 hp, 6.8 A operating at 208/230 V and 60 Hz
• Convertible 4-way cabinet supports downflow, upflow, horizontal left and right installations; dimensions 51-3/8 in H x 23-1/2 in W x 21-1/8 in D
• Brazed connections for R-410A with TXV refrigeration control, liquid line 3/8 in OD and suction line 7/8 in OD

Product Highlights

Multi-position 4-way 4 ton air handler with 16-speed ECM blower, brazed R-410A connections, and TXV control

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: TEM6A0C48H41SC

Technical Specifications

• Brand: American Standard
• Manufacturer: Trane International Inc
• MPN: TEM6A0C48H41SC
• Collection: TEM6 Series
• Nominal Capacity: 4 ton
• Cooling Capacity: 48,000 Btu/hr
• Tonnage: 4 Ton
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: Single phase
• Amperage Rating: 6.8 A
• Horsepower: 3/4 hp
• Motor Type: ECM
• Blower Type: Variable-speed (Vortica noted in some sources)
• Number of Speeds: 16
• Configuration: Multi-position 4-way (Downflow, Upflow, Horizontal Left, Horizontal Right)
• Refrigerant Type: R-410A
• Refrigeration Control Type: TXV
• Connection Type: Brazed
• Liquid Line Size (OD): 3/8 in
• Suction Line Size (OD): 7/8 in
• Coil Material: Aluminum (all-aluminum coil)
• Cabinet Material: Metal
• Dimensions: 51.375 in H x 23.5 in W x 21.125 in D
• Weight: 174 lb
• Fuse Rating: 15 A
• Stages: Single
• Power Source: Electric
