American Standard TEM6A0B30H21SC Silver Series TEM6 Air Handler 30,000 Btu/hr (46.8 in L x 18.5 in W x 21.1 in H) TEM6A0B30H21SA

Product Description

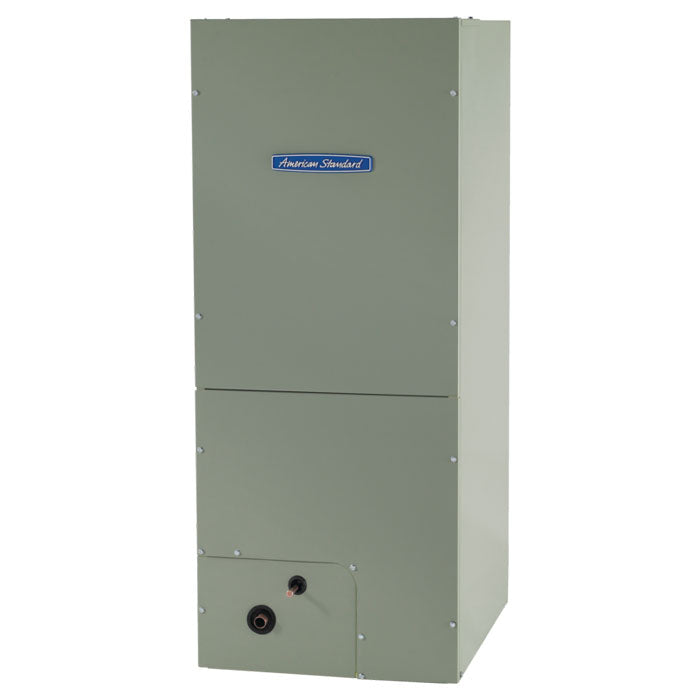

American Standard TEM6A0B30H21SC is a Silver Series TEM6 convertible air handler rated at 30,000 Btu/hr (2.5 ton) with approximately 1000 cfm airflow. The unit uses a variable-speed ECM motor and a Vortica blower, supports upflow, downflow and horizontal left/right installations, and employs R-410A refrigerant with TXV control. It is configured for 208/230 V, 60 Hz, single-phase systems and includes all-aluminum coils, a painted metal cabinet, and 24 VAC standard control.

• Variable-speed ECM motor with Vortica blower for adjustable airflow and quieter operation
• Convertible 4-way multi-position design (upflow, downflow, horizontal left/right) for flexible installation
• R-410A refrigerant with TXV control, all-aluminum coils, painted metal cabinet, and 24 VAC standard system control

Product Highlights

30,000 Btu/hr convertible air handler with variable-speed ECM motor, R-410A TXV control, all-aluminum coils, and multi-position installation capability.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: TEM6A0B30H21SC

Technical Specifications

• Brand: American Standard
• Manufacturer: Trane International Inc
• MPN: TEM6A0B30H21SC
• Part Number: 385525
• Model: TEM6
• Series: Silver Series
• Family: TEM6
• Cooling Capacity: 30,000 Btu/hr
• Tonnage: 2.5 Ton
• Airflow: 1000 cfm (approx.)
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: 1
• Power Rating: 1/2 HP (blower motor equivalence)
• Current Rating: 4.3 Amp FLA (fan) — nominal; actual running current varies with motor speed
• Motor Type: ECM, variable speed, direct drive
• Number of Speeds: 16 (ECM multi-speed/settings)
• Fan Type: Centrifugal (draw-through Vortica blower)
• Coil Type: Aluminum plate fin
• Coil Material: All-aluminum coils
• Number of Rows: 4
• Fins per Inch: 14
• Refrigerant Type: R-410A
• Refrigerant Control: TXV (thermal expansion valve)
• Refrigerant Line Size: 3/4" (suction/gas), 3/8" (liquid)
• Refrigerant Line Connection Type: Brazed
• Refrigerant Connections: Brazed refrigerant line connections
• Configuration / Mounting Type: Convertible 4-way multi-position; upflow, downflow, horizontal left/right
• Dimensions: 46.8 in L x 18.5 in W x 21.1 in H
• Weight: 117 lb
• Enclosure Material: Painted metal
• Enclosure Finish: Painted with captured foil-faced insulation (R-4.2 insulating value)
• Includes: 24 VAC standard system control, low voltage pigtail connection
• Approval / Certifications: UL (Canada and US)
• Applicable Standard: AHRI 210/240
• Additional Information: Entry level variable speed tier; draw-through design; centrifugal fan; fused 24V power; thermostat temperature control
