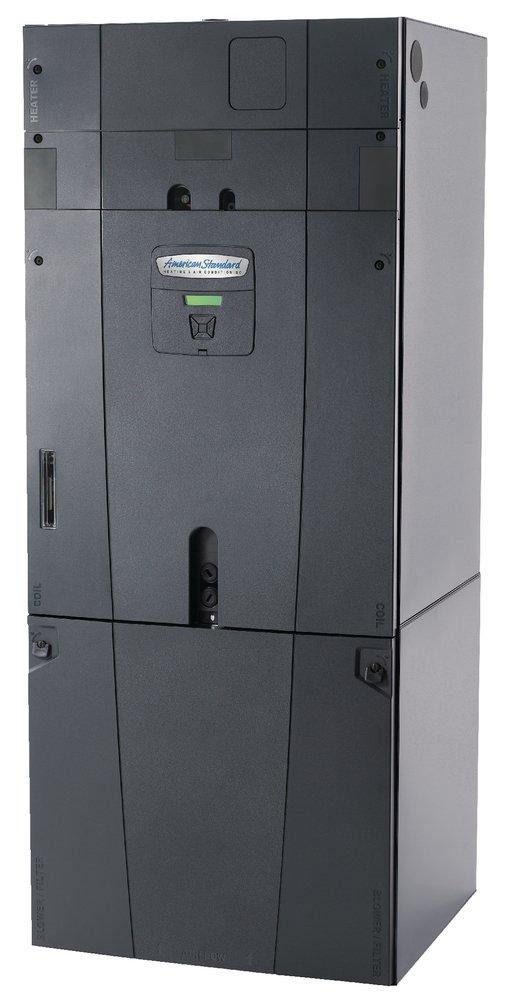

American Standard TAM9A0A24V21DA Multi-Position 4-Way Convertible Air Handler 2 Ton (49.9 in H x 39.6 in W x 21.8 in D) TAMXB0A24V21DA

Product Description

American Standard TAM9A0A24V21DA is a 2 ton, multi-position 4-way convertible air handler with a 24,000 Btu/hr cooling capacity. It operates on 208 to 230 VAC, 60 Hz, single phase and draws 3 A, using an ECM variable-speed blower rated 255 to 1,358 CFM. The unit is R-410A compatible with EEV refrigerant control, accepts a 16 x 20 x 1 in filter, and has aluminum cabinet construction and integrated drain pans.

• Multi-position convertible configuration (upflow, downflow, horizontal left, right) with nominal 2 ton / 24,000 Btu/hr capacity and 255–1,358 CFM range
• Electrical: 208–230 VAC, 60 Hz, single phase, 3 A; ECM variable-speed blower; 1/2 hp
• R-410A compatible with EEV refrigerant control; connections: 3/8 in liquid line, 3/4 in suction and service connections; accepts 16 x 20 x 1 in filter

Product Highlights

2 ton variable-speed multi-position air handler, 24,000 Btu/hr, 255–1,358 CFM, 208–230 V 1 ph 60 Hz, R-410A compatible with EEV control, aluminum cabinet, dimensions 49.9 H x 39.6 W x 21.8 D in

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: TAM9A0A24V21DA

Technical Specifications

• Manufacturer: American Standard (Trane)
• Brand: American Standard
• MPN: TAM9A0A24V21DA
• Model: TAM9A0A24
• Replacement MPN: TAMXB0A24V21DA
• Nominal Capacity: 2 ton
• Cooling Capacity: 24000 Btu/hr
• CFM Rating: 255 to 1358 cfm
• Configuration: Upflow; Downflow; Horizontal Left; Horizontal Right (multi-position convertible)
• Input Voltage: 208 to 230 VAC
• Frequency: 60 Hz
• Phase: 1 phase
• Input Current: 3 A
• Horsepower: 1/2 hp
• Blower Type: ECM variable-speed blower
• Motor Type: ECM
• Refrigerant Type: R-410A
• Refrigerant Control: EEV refrigerant control
• Filter Size: 16 x 20 x 1 in
• Liquid Line Size (OD): 3/8 in
• Suction Line Size (OD): 3/4 in
• Service Connection Size: 3/4 in
• Connection Type: NPT
• Cabinet Material: Aluminum
• Sound Level: 76 to 79 dB
• Dimensions (H x W x D): 49.9 in x 39.6 in x 21.8 in
• Weight: 126 lb
• Coil: Epoxy coated coil
• Communicating Capability: AccuLink or 24V connectivity
• Control Options: Communicating or 24 V control
• Mounting Type: Multi-position (convertible)
• Certifications: ETL Listed
• Insulation: Refrigerator-style fully enclosed insulation; double-wall foamed cabinet
