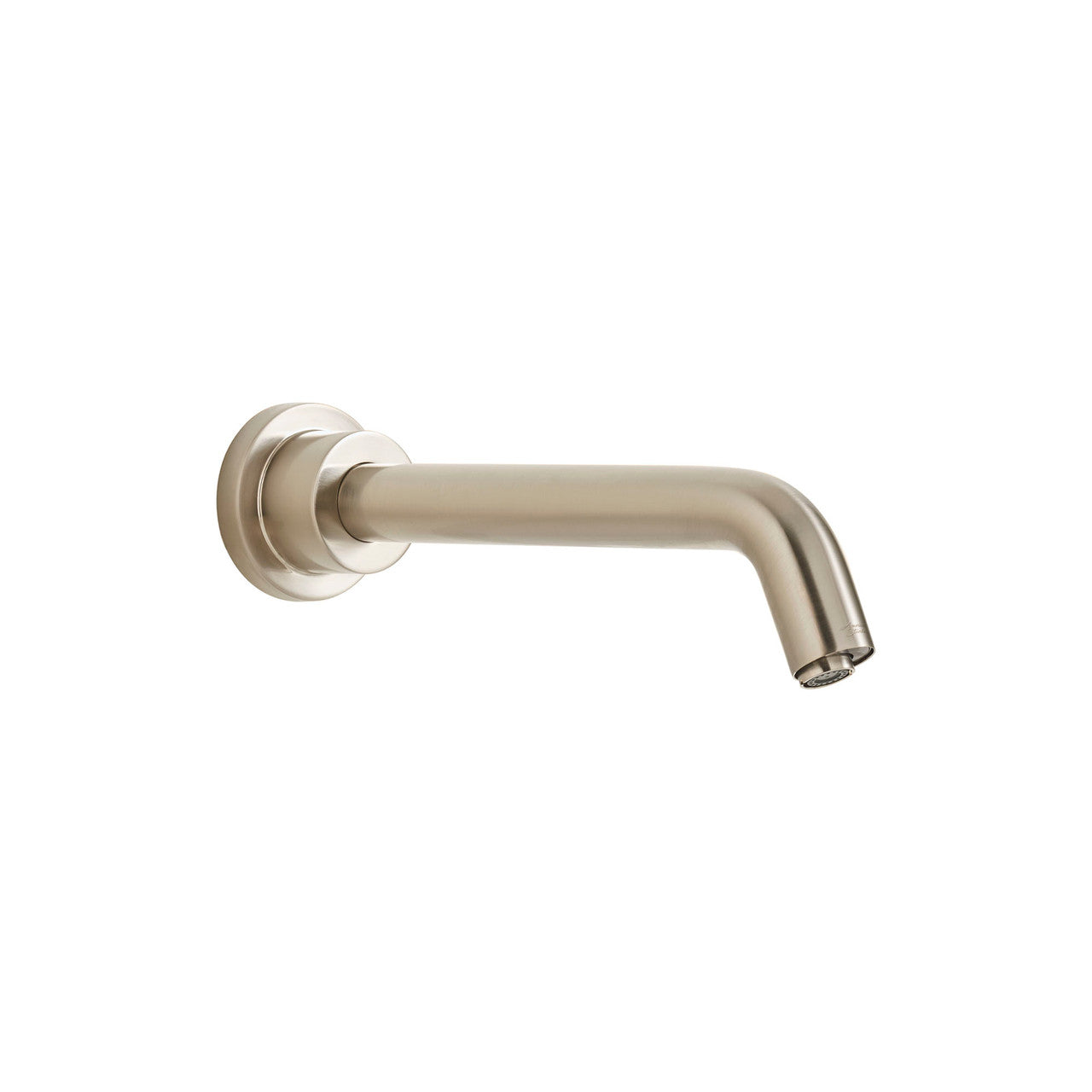

American Standard t06b306.295 Wall-mount Faucet Trim 0.35 Gpm

Product Description

The AMERICAN STANDARD t06b306.295 is a touchless wall-mount faucet trim designed for commercial restroom applications. Operating at 0.35 gallons per minute (GPM) with a pressure-compensating multi-laminar spray, this trim kit delivers consistent, low-flow water delivery without manual contact. The sensor is positioned in the spout tip for a clean, streamlined profile and reduced vandalism risk. A self-adjusting sensor automatically calibrates detection range for reliable, hands-free activation. A built-in safety timer cuts water flow after 55 seconds, preventing waste. Licensed plumbers and commercial facility technicians typically install this trim as part of a complete sensor faucet assembly.

This trim is suited for commercial restrooms, public facilities, healthcare environments, and institutional settings where hygiene and vandal resistance are priorities. The spout reach is field-adjustable from 6 inches to 9 inches to accommodate different sink basin depths and wall setback conditions. The single-inlet design accepts cold or tempered water supply, making it compatible with standard commercial lavatory rough-in configurations. Note that a power kit and the R350 rough valve must be purchased separately before installation can be completed.

Key Features

• Touchless sensor operation limits contact and reduces germ transmission in high-traffic restrooms
• Self-adjusting sensor sets detection range automatically for consistent activation
• Sensor located in spout tip for vandal-resistant, low-profile design
• Adjustable spout reach: 6 inches to 9 inches for flexible positioning
• Safety timer shuts off flow automatically after 55 seconds
• Pressure-compensating multi-laminar spray at 0.35 GPM for water efficiency
• Vandal-resistant brass spout construction for commercial durability

Compatibility

Designed for use with the American Standard R350 rough valve (sold separately). Requires a compatible power kit purchased separately. Intended as trim-only for commercial wall-mount sensor faucet rough-in assemblies.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and verify the rough valve and power kit are in place before mounting the trim. Do not overtighten connections to the brass spout. Confirm sensor functionality and adjust spout reach before finalizing the installation.

Technical Specifications

• Flow Rate: 0.35 GPM / 1.3 Lpm
• Spout Reach (Adjustable): 6 inches to 9 inches
• Safety Timer: Automatic shutoff at 55 seconds
• Spray Type: Pressure-compensating multi-laminar
• Inlet Configuration: Single inlet, cold or tempered water
• Spout Material: Brass
• Mount Type: Wall-mount
• Product Group: Commercial
• Product Type: Wall-Mount Trim

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: t06b306.295
