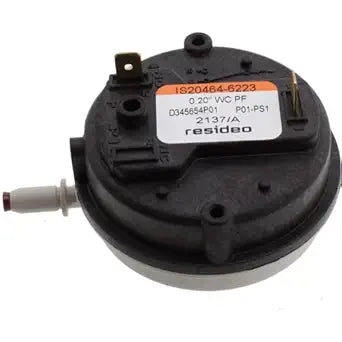

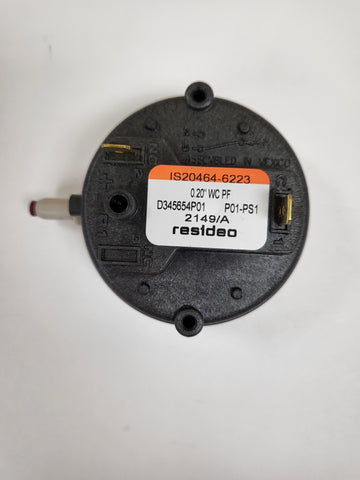

American Standard SWT03924 Pressure Switch 0.2 in WC

Product Description

The American Standard SWT03924 is a pressure switch designed for reliable automatic operation in heating systems. It features SPDT switch action, ensuring efficient control. With a differential of 0.2 in WC, this switch is suitable for HVAC applications. The device operates well in a temperature range from negative forty to one hundred ninety degrees Fahrenheit, meeting various operational needs. This switch is compatible with Trane American Standard systems.

• SPDT switch action for effective control
• Operates between -40 to 190 degrees Fahrenheit
• Rated for 28 VA at 24 VAC and 125 VA at 120 VAC

Product Highlights

This pressure switch is built for durability and precision, making it a vital component in furnace air pressure regulation.

Product Information

Standard Information

• Operation Mode: automatic
• Switch Type: Pressure Switch

Technical Specifications

• Actuator Type: Plunger
• Contact Material: Copper
• Switch Action: SPDT
• Differential Pressure: 0.2 in WC
• Operating Temperature: -40 to 190 deg F
• Model: Fits SWT03924 SWT3924
• Type: Furnace Air Pressure Switch
• Pilot Duty Rating @ 24 VAC: 28 VA
• Pilot Duty Rating @ 120 VAC: 125 VA
