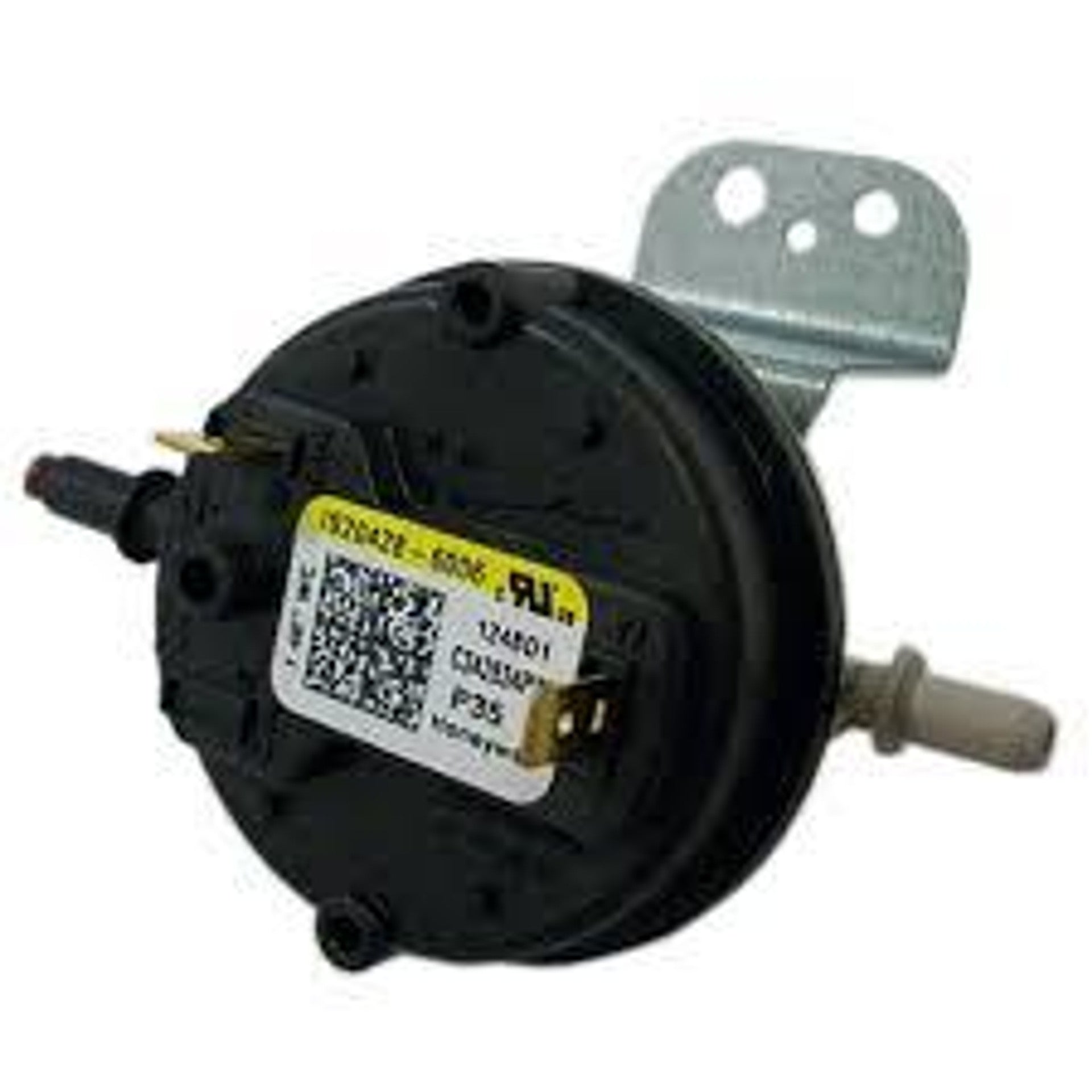

AMERICAN STANDARD SWT03221 Switch Pressure 28VA Pilot Duty 24 VAC Replacement MPN

Product Description

The American Standard SWT03221 is a pressure switch designed for heating and air conditioning applications. It operates on a pilot duty of 28VA at 24 VAC and 125 VA at 120 VAC. This switch can control a load of up to 1/10 HP, with a full load amperage rating of 3 FLA and a locked rotor amperage rating of 18 LRA at 24 VAC. The switch opens at -1.36 W.C. and closes at -1.55 W.C.

• Operates at low voltage with reliable switching capabilities.
• Suitable for HVAC systems requiring precise pressure control.
• Compact and robust design for long-lasting performance.

Product Highlights

This switch is ideal for maintaining optimal system pressure in HVAC systems. Its precise pressure settings ensure efficient operation.

Product Information

Standard Information

• Manufacturer: American Standard Heating & Air Conditioning
• Brand: American Standard
• Part Number: SWT03221

Technical Specifications

• Type: Pressure Switch
• Pilot Duty Voltage: 24 VAC and 120 VAC
• Wattage: 28 VA and 125 VA
• Horsepower: 1/10 HP
• Full Load Amperage (FLA): 3 FLA
• Locked Rotor Amperage (LRA): 18 LRA
• Open Pressure: -1.36 W.C.
• Close Pressure: -1.55 W.C.
