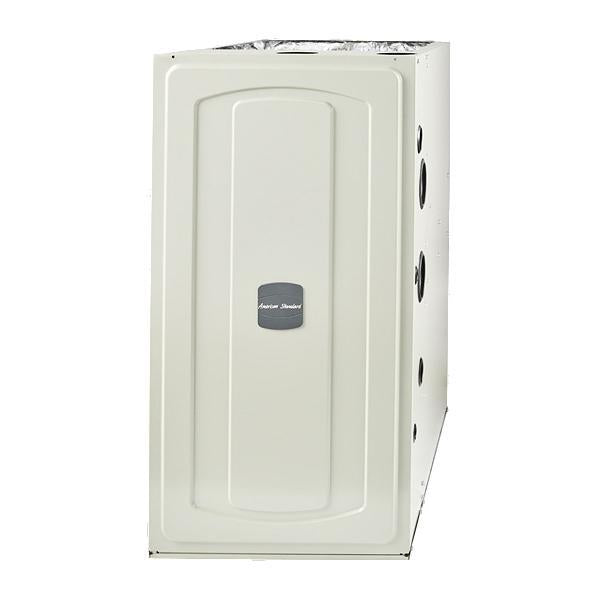

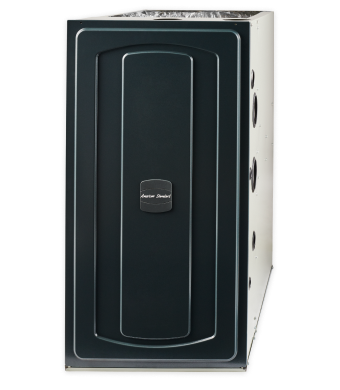

American Standard S9B1B060U4PSAA S9B1 gas furnace 4 Ton (34 x 17.5 x 28.8 in) 385449

Product Description

The American Standard S9B1B060U4PSAA is a single-stage S9B1 series gas furnace with a 4 ton capacity and approximately 92% AFUE. It uses the Vortica II blower to provide steady, quiet airflow and supports pairing with a heat pump for hybrid systems. The unit features a durable steel cabinet and compact dimensions of 34 x 17.5 x 28.8 inches for installation in constrained spaces.

• Single-stage operation with 92% AFUE and 4 ton capacity (60,000 Btu/hr input)
• Vortica II blower for precise, quiet airflow and consistent temperature control
• Configurable for upflow or horizontal installation; compact cabinet 34 x 17.5 x 28.8 in

Product Highlights

Single-stage 4 ton gas furnace, 92% AFUE, Vortica II blower, upflow/horizontal configuration

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: S9B1B060U4PSAA

Technical Specifications

• Brand: American Standard
• MPN: S9B1B060U4PSAA
• Replacement Part Number: 385449
• Model Number: S9B1
• Series: S9B1 / S Series
• AFUE: 92%
• Number of Stages: Single
• Tonnage: 4.0 Ton
• Input BTU: 60,000 Btu/hr
• BTU Heat Rating: 58,300 Btu/h
• Fuel Type: Natural Gas
• Condensing: Yes
• Blower: Vortica II blower
• Motor Type: PSC
• Ignition Type: Silicon Nitride
• Configuration: Upflow, Horizontal Left, Horizontal Right
• Dimensions (HxWxD): 34 x 17.5 x 28.8 in
• Height: 34 in
• Width: 17.5 in
• Depth: 28.75 in
• Weight (shipping): 130 lbs
• Material: Steel
• Power Source: Gas
• Voltage Rating: 115/120 V
• Phase: Single Phase
• Frequency: 60 Hz
• Max Fuse / Fuse Rating: 15 A
• Horsepower: 3/4 hp
• Current (Amp): 8.4 A
• Airflow: At least 400 CFM/ton at 0.5 in. H2O external static pressure
• Heat Exchanger: Stainless steel primary and secondary tubular
• Flue Size: 4 in
• Collection: S9B1 Series
• Manufacturer: Trane International Inc
