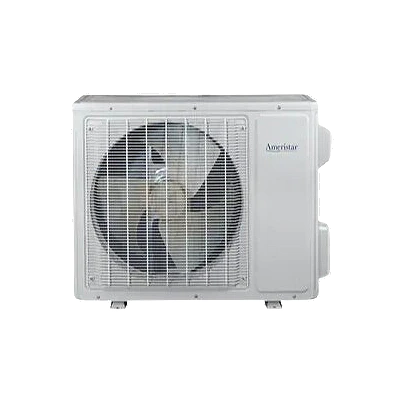

American Standard M4THS1724A11NA 17 Series Single-Zone Heat Pump Outdoor Unit 24000 Btu/hr (1 ph)

Product Description

American Standard M4THS1724A11NA is a 17 Series single-zone heat pump outdoor unit rated for 24,000 Btu/hr heating and 22,000 Btu/hr cooling. It operates at 208-230 V, 60 Hz, 1-phase and draws 9 A (2051 W). The unit uses R-410A refrigerant with a rotary compressor and delivers 3200 cfm in heating mode. Ratings include 10 SEER, 10 HSPF and 3.43 EER; features include base pan heaters and Blue Fin coastal coating.

• Operates at 208-230 V, 60 Hz, 1-phase; current 9 A (2051 W)
• Capacity: 24,000 Btu/hr heating, 22,000 Btu/hr cooling; SEER 10, HSPF 10, EER 3.43
• R-410A refrigerant with rotary compressor; liquid line 1/4 in, suction line 5/8 in; heating airflow 3200 cfm

Product Highlights

Single-zone outdoor heat pump, 24,000 Btu/hr heating, 208–230 V 1-phase, R-410A rotary compressor, galvanized steel with base pan heaters and Blue Fin coating

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: M4THS1724A11NA

Technical Specifications

• Manufacturer: Trane International Inc
• Brand: American Standard
• MPN: M4THS1724A11NA
• Series: 17 Series
• Product Type: Single-zone heat pump outdoor unit
• Input Voltage: 208-230 V
• Frequency: 60 Hz
• Phase: 1 ph
• Input Current: 9 A
• Power Consumption: 2051 W
• Cooling Capacity: 22000 Btu/hr
• Heating Capacity: 24000 Btu/hr
• SEER Rating: 10
• HSPF Rating: 10
• EER Rating: 3.43
• Refrigerant Type: R-410A
• Compressor Type: Rotary
• Heating Airflow: 3200 cfm
• Liquid Line Size: 1/4 in
• Suction Line Size: 5/8 in
• Fuse Rating: 20 A
• Finish: Galvanized steel
• Material: Steel
• Operating Temperature (Heating): -4 to 75 deg F
• Operating Temperature (Cooling): 0 to 115 deg F
• Heating Sound Level: 67 dB
• Dimensions (L x W x H): 15-53/64 in x 37.71 in x 25-63/64 in
• Certifications: AHRI Certified Systems
