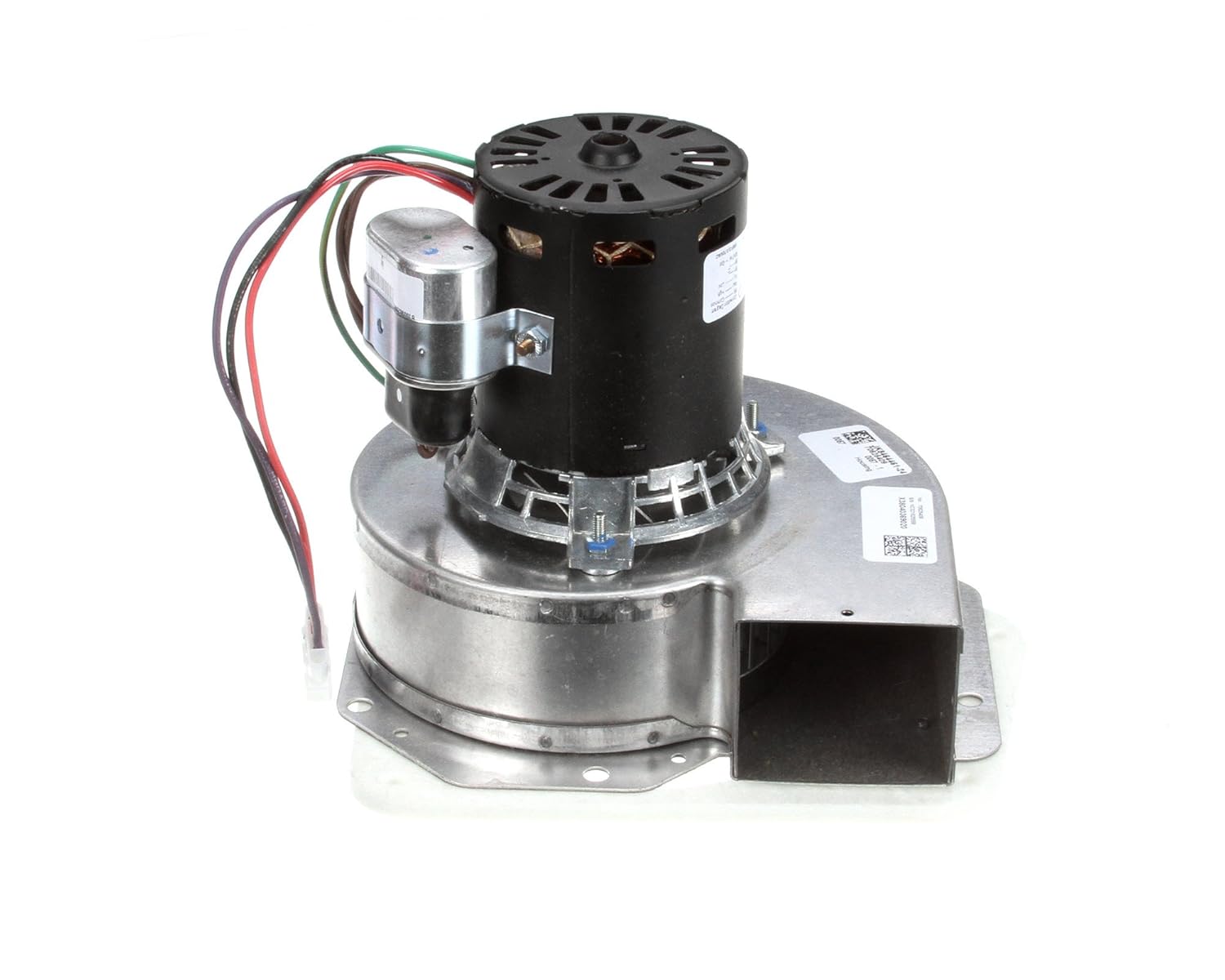

AMERICAN STANDARD FAN03130 Air Conditioner Fan 4.72 Inch REPLACEMENT YSC092H3RZA03C0B1A1B000A0A000D

Product Description

The AMERICAN STANDARD FAN03130 is an air conditioner fan with a 4.72 inch outer diameter wheel. It is engineered to function efficiently at 208/230 VAC and 50/60 Hz one-phase, consuming 0.42/0.5 A. This fan has a power rating of 1/15 HP and operates at speeds ranging from 2800 to 3350 RPM. A 3 microfarad capacitor at 370 V is included for optimal performance. The FAN03130 is suitable for use in combustion air blowers and packaged rooftop air conditioning systems.

• 4.72 inch outer diameter wheel
• Operates at 208/230 VAC, 50/60 Hz, single-phase
• Designed for combustion air blowers and packaged rooftop air conditioners

Product Highlights

This fan is a reliable choice for replacing older units in HVAC systems, ensuring efficient airflow and optimal system performance.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Item: Fan

Technical Specifications

• Size: 4.72 inch outer diameter (wheel)
• Used On Item: Combustion air blower, packaged rooftop air conditioner
• Used On Item Part No: YSC092H3RZA03C0B1A1B000A0A000D/YSC092H3RZA03D1B1A1A000A0A000D
• Shipping Height: 8.300 inch
• Shipping Length: 11.700 inch
• Shipping Width: 8.500 inch
• Carton Quantity: 1 per pack
