American Standard ASD-LSB5-150D50BR-SF Led Area Light 150W 5000K

Product Description

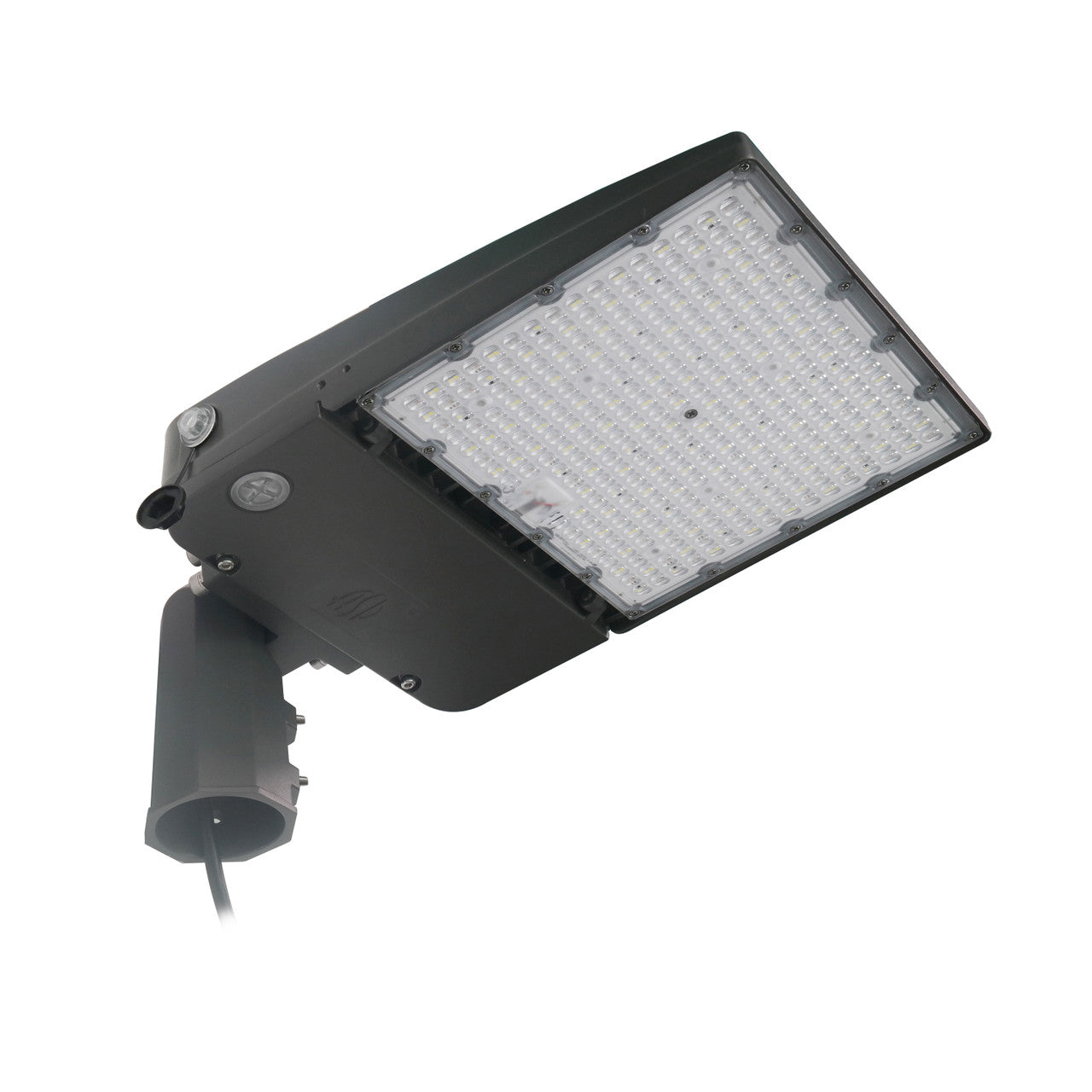

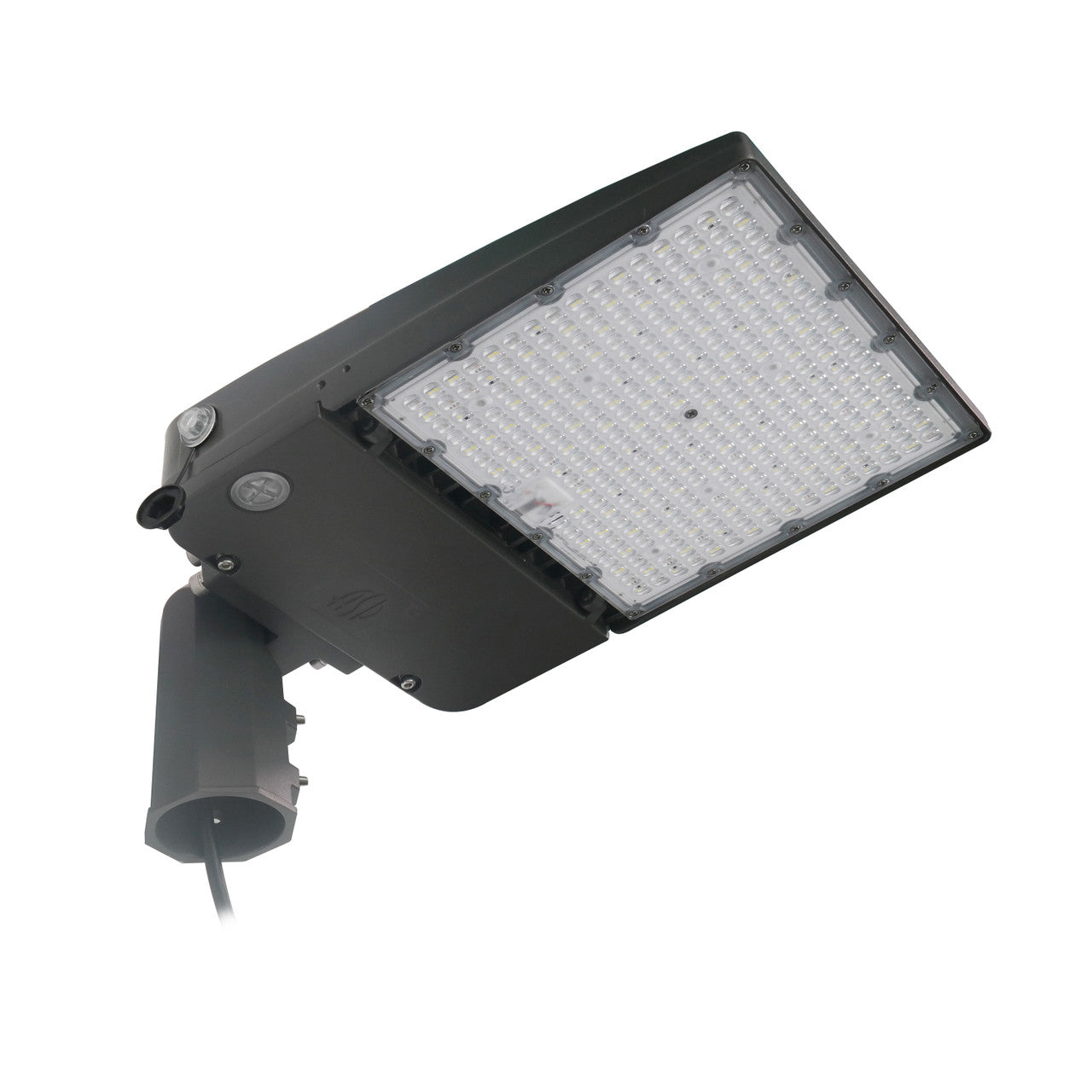

The AMERICAN STANDARD ASD-LSB5-150D50BR-SF is a 150-watt LED area light built for commercial and industrial outdoor lighting applications. Operating on a wide voltage range of 120 to 277 volts, it delivers a 5000K daylight color temperature suited for parking lots, roadways, and large exterior work areas. The bronze finish housing integrates a factory-installed photocell for automatic dusk-to-dawn operation and a slip fitter mount for standard pole tops. Dimming capability allows integration with lighting control systems. UL listing and DLC Premium certification confirm it meets quality and energy standards required for utility rebate programs.

This LED area light is designed for outdoor commercial and municipal installations where reliable, high-output area illumination is required. Typical applications include parking structures, commercial property perimeters, warehouse yards, and roadway lighting. The 120 to 277 volt input range makes it compatible with standard single-phase commercial electrical services without additional transformers. The slip fitter mount fits common tenon pole configurations used in site lighting projects. Licensed electricians handle installation in accordance with NEC requirements for outdoor wet-location luminaires.

Key Features

• 150-watt LED output for high-lumen area illumination
• 5000K daylight color temperature for clear visibility in outdoor environments
• Wide voltage input: 120 to 277 volts for broad electrical service compatibility
• Integrated photocell for automatic dusk-to-dawn operation
• Slip fitter mount for standard tenon pole top installation
• Dimmable for use with compatible lighting control systems
• UL listed and DLC Premium certified for utility rebate eligibility

Compatibility

Designed as an OEM-style replacement or new-installation LED area light for standard slip fitter pole top mounts used in commercial outdoor lighting systems.

Installation Notes

Installation must be performed by a licensed electrician in compliance with NEC Article 410 for luminaires and local wet-location wiring requirements. Power down and lock out the circuit at the panel before mounting or wiring the fixture. Verify the pole tenon diameter matches the slip fitter specification before mounting. Connect the dimming leads only if a compatible 0-10 volt dimming control system is present; cap unused leads if dimming is not used.

Technical Specifications

• Wattage: 150 watts
• Input Voltage: 120 to 277 volts
• Color Temperature: 5000K
• Finish: Bronze
• Mount Type: Slip Fitter
• Dimming: Dimmable
• Photocell: Included
• Certifications: UL Listed, DLC Premium

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: ASD-LSB5-150D50BR-SF
