American Standard 6550.001.020 14-5/16 x 21-1/2, 3/4 Spud Inlet Urinal

Product Description

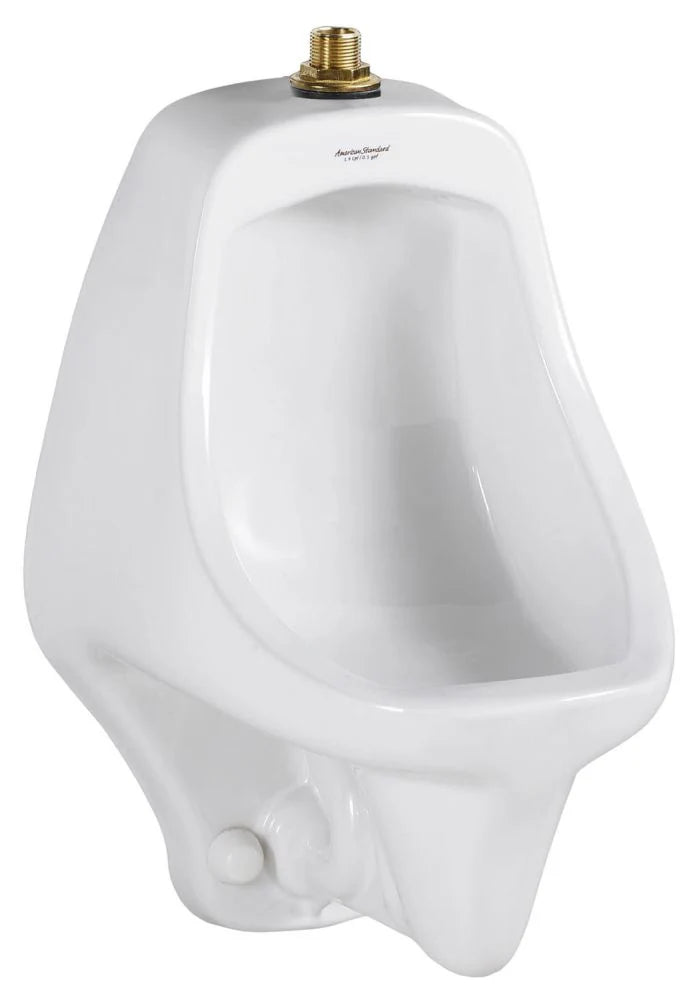

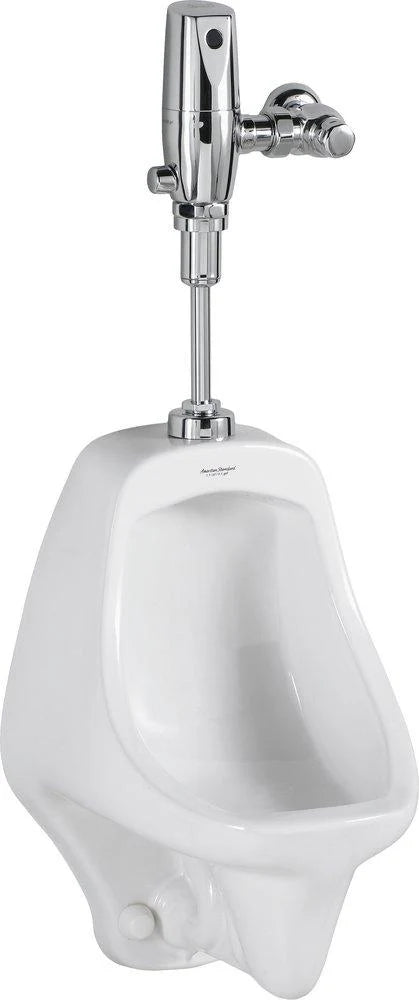

The American Standard 6550.001.020 urinal offers high-efficiency in a range of 0.5 to 1.0 gallons per flush (GPF). Crafted from durable vitreous china, it features a siphon jet flush action and a flushing rim. Designed for wall-mount installation, this urinal includes a top spud inlet and a rear outlet. Ideal for commercial applications, it meets ADA, ANSI, and other standards.

• High-efficiency operation
• Siphon jet flush action
• Wall-mount installation

Product Highlights

High-efficiency urinal with a flushing rim and siphon jet action. Wall-mount with top spud inlet and rear outlet.

Product Information

Standard Information

• Part Number: 6550.001.020
• UPC: 03305629416
• Manufacturer: American Standard
• Category: Plumbing, Bathroom, Commercial Bathroom, Commercial Bathroom Urinals

Technical Specifications

• Material: Vitreous China
• Color/Finish: White
• Dimensions: 14-5/16 x 14-5/16 x 21-1/2 inches
• Inlet Connection: 3/4 Inch Spud
• Outlet Connection: 2 Inch Female Threaded
• Gallons Per Flush: 0.5 to 1
• Mounting Type: Wall Mount
• Applicable Standards: ADA, ANSI A117.1, ASME A112.19.2/CSA B45.1, CEC, EPA
• Recommended Working Pressure: 20 PSI (Flush), 80 PSI (Static)
