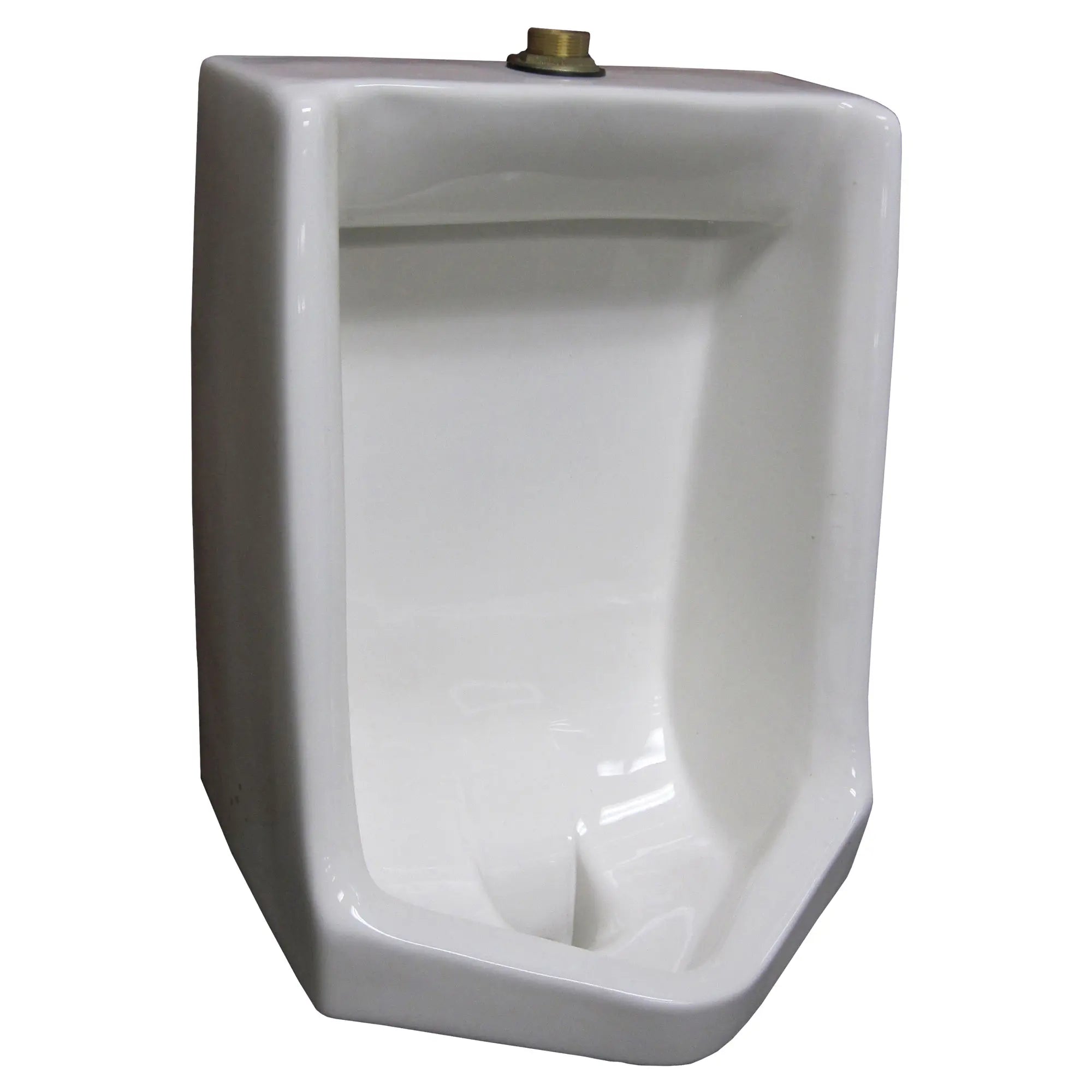

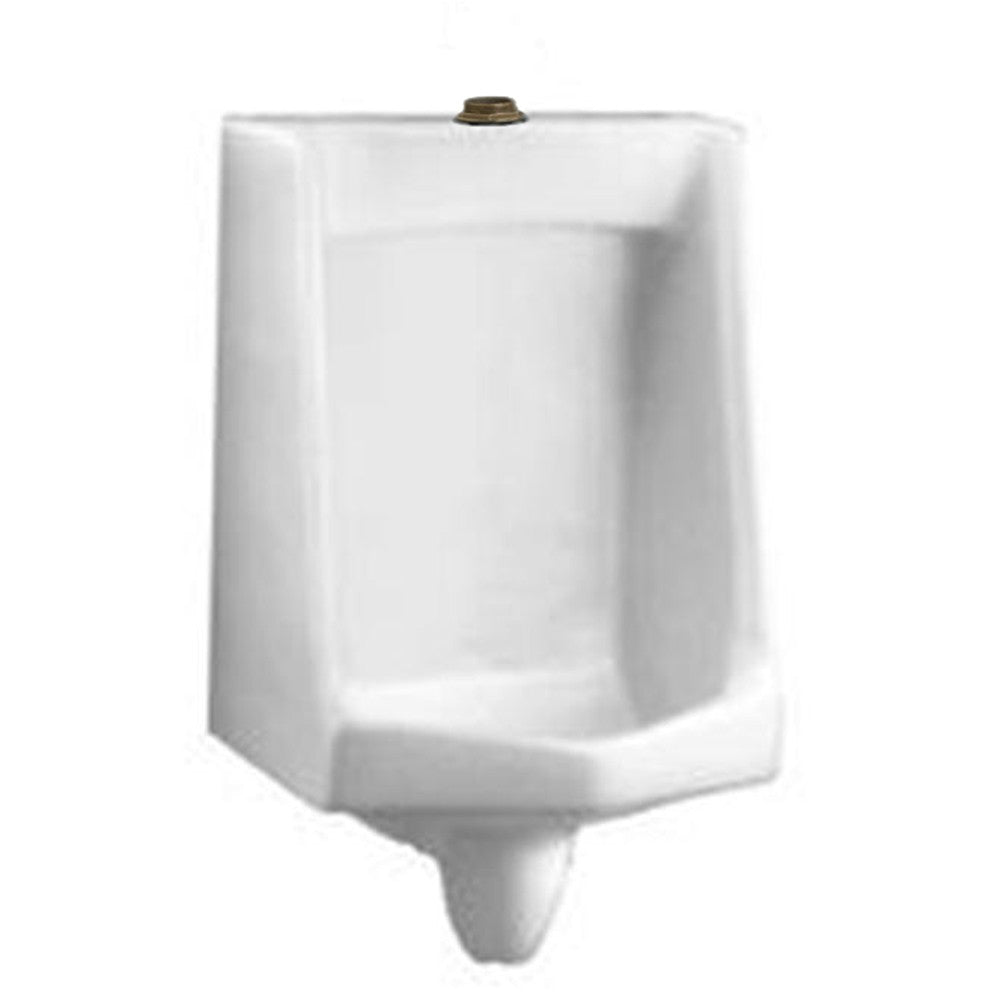

American Standard 6601.012.020 Lynbrook Urinal 0.85 - 1.0 Gpf

Product Description

The AMERICAN STANDARD 6601.012.020 Lynbrook urinal uses just 1.0 gallon per flush. Features include a flushing rim and a blowout flush action for effectiveness, plus integral privacy shields. Its practical design makes it ideal for commercial applications that don't have privacy walls between urinals. Low water usage (1.0 GPF/3.8 LPF).

• Low consumption urinal
• Flushing rim
• Blowout flush action
• Integral privacy shields

Product Highlights

This urinal is ideal for commercial applications. It features a flushing rim, blowout flush action, and integral privacy shields.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 6601.012.020
• Country of Origin: United States

Technical Specifications

• GPF Maximum: 1 gpf
• GPF Minimum: 1 gpf
• Length (Inches): 18.5"
• Gallons Per Flush: 1
• Material: Porcelain
• Finish: White
• ADA Compliance: Yes
• Width: 18-1/2 in
• Depth: 14 in
• Height: 28-3/4 in
• Spud Size: 1-1/4 in
• Liters per Flush: 3.8
• Flush Type: Blowout
• PSI: 20-80 psi
• Spud Placement: Top
• Brand: American Standard
• Mounting: Wall
• Connection Type: Top Spud Inlet
• Outlet Size: 2 IN NPTF
• Item Name: Urinal
• Spud Inlet Size: 1-1/4 IN
• Flushing System: Blowout
• Industry Standards: ANSI, ASME A112.19.2, EPA WaterSense Compliant
• Product Dimensions: 14"D x 18.5"W x 28.75"H
• Model Number: 6601012.020
• Manufacturer Part Number: 6601012.020
• Item Type Name: Urinal with 1-1/4-In Top Spud
• Included Components: Urinal with 1-1/4-In Top Spud
• Installation Method: Wall Mounted
