American Standard 6590.001.020 Washbrook FloWise Urinal 0.125 - 1.0 GPF Vitreous China Wall Mount

Product Description

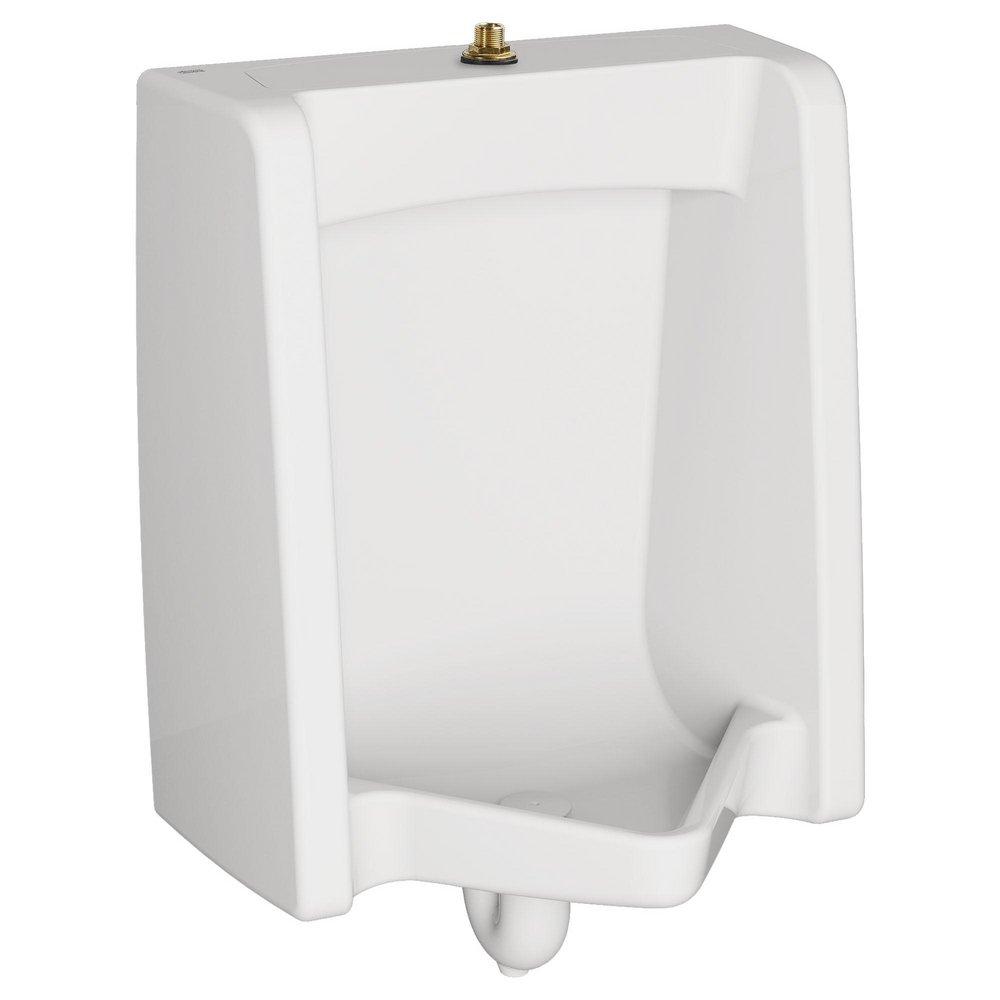

The American Standard Washbrook FloWise Urinal 6590.001.020 offers high efficiency and low water consumption. Made from durable vitreous china, this wall-mounted urinal operates within a water range of 0.125 to 1.0 gallons per flush (GPF). The universal design includes a top spud inlet and rear outlet for versatile installation.

• High-efficiency, low-consumption
• Operates within 0.125 to 1.0 GPF
• Wall-mounted

Product Highlights

Designed for commercial applications, the Washbrook urinal features a washout flush action and extended sides for user privacy. It includes a flushing rim and comes with two wall hangers for easy installation.

Product Information

Standard Information

• Manufacturer: American Standard
• UPC: 03305685294

Technical Specifications

• Part Number: 6590.001.020
• Material: Vitreous China
• Color: White
• Mounting Type: Wall Mount
• Height: 28-1/8 inches
• Length: 18-7/8 inches
• Depth: 14-1/8 inches
• Spud Inlet: 3/4 inch
• Outlet Connection: 2 inch Female Threaded
• Gallons Per Flush: 0.125 to 1
• Recommended Working Pressure: 20 PSI (Flush), 80 PSI (Static)
• Certifications: ADA, ANSI A117.1, ASME A112.19.2/CSA B45.1, CEC, EPA
• Inclusions: (2) Wall Hanger, Strainer
