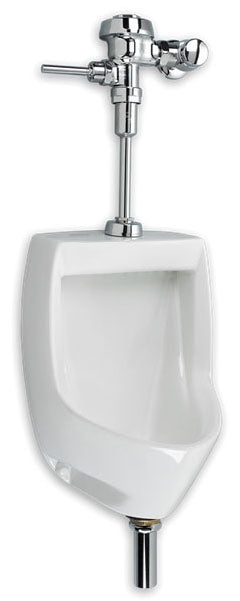

American Standard 6581.001.020 Maybrook Universal Urinal 0.125 - 1 gpf

Product Description

The American Standard 6581.001.020 Maybrook Universal Urinal features a high-efficiency design that uses only 0.125 gallons per flush. This model is ideal for commercial applications prioritizing water usage reduction. It has a wall-mount installation and includes a flushing rim and washout flush action for effective performance.

• Universal washout flush action design
• Wall mount configuration
• Water-efficient, compliant with ADA standards

Product Highlights

This urinal is designed for environments seeking high efficiency and low water consumption. It meets various industry standards and is suitable for both residential and commercial use.

Product Information

Standard Information

• Brand Name: American Standard
• Model Number: 6581.001.020

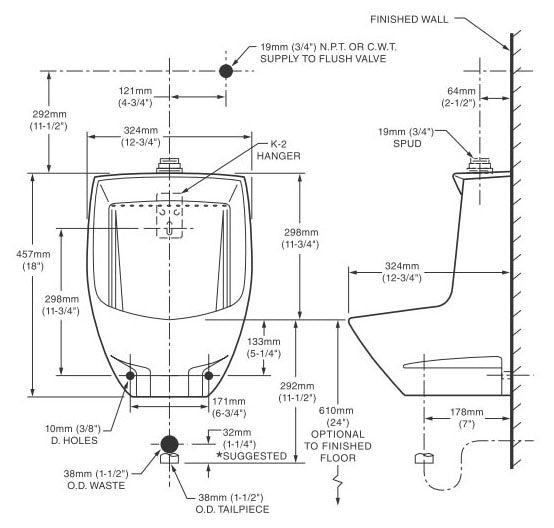

Technical Specifications

• Type: Universal, Washout Flush Action
• Height: 18 inches
• Length: 12-3/4 inches
• Depth: 12-3/4 inches
• Material: Vitreous China
• Color/Finish: White
• Gallons Per Flush: 0.125 to 1
• Recommended Working Pressure: 20 PSI (Flush), 80 PSI (Static)
• Rough-In: 7 inches
• Inlet Connection: 3/4 inch
• Applicable Standards: ADA, ASME A112.19.2, CSA B45.1-08, ANSI A112.19.2, EPA, CEC
• Inclusions/Features: Wall Hanger, Integral Strainer, Flushing Rim
