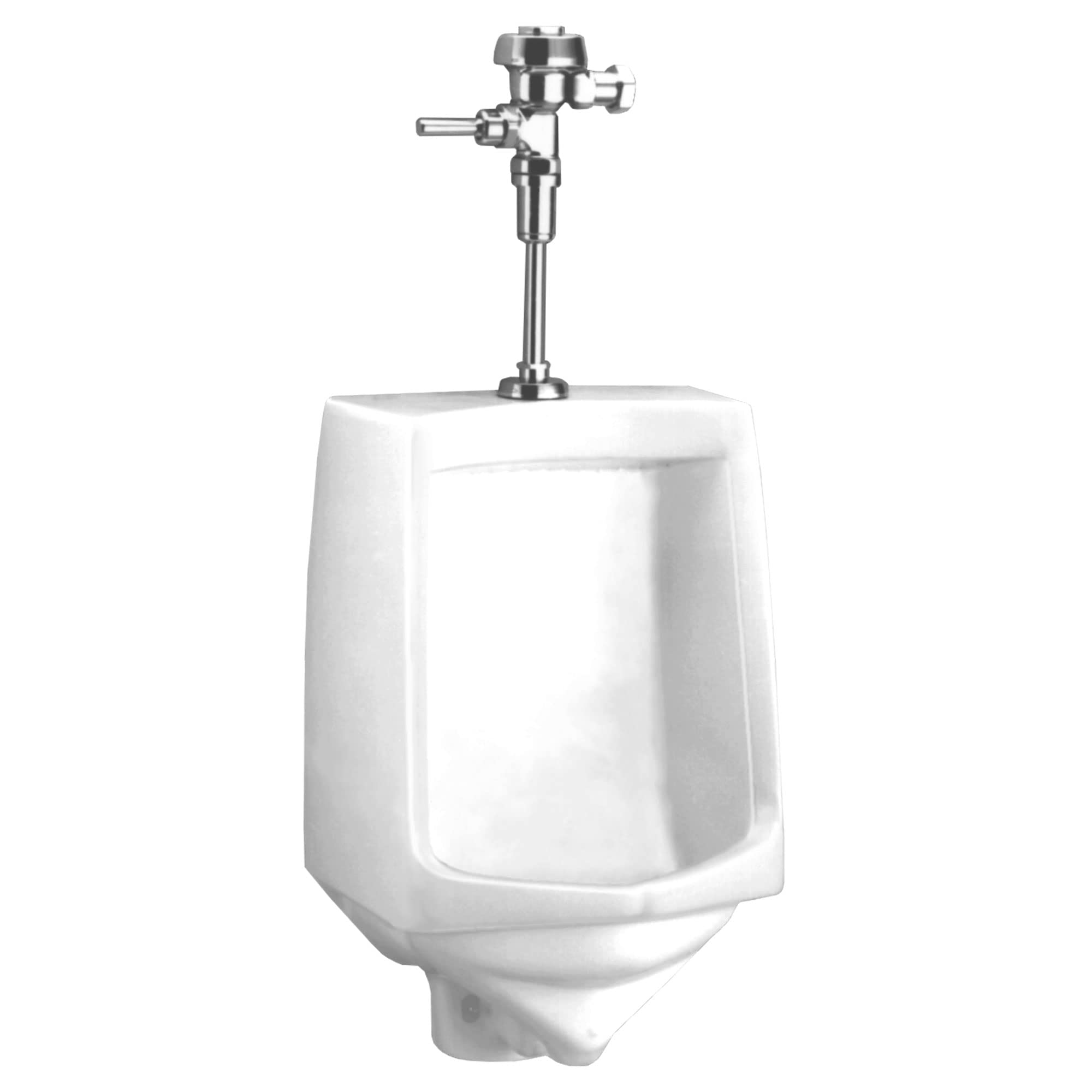

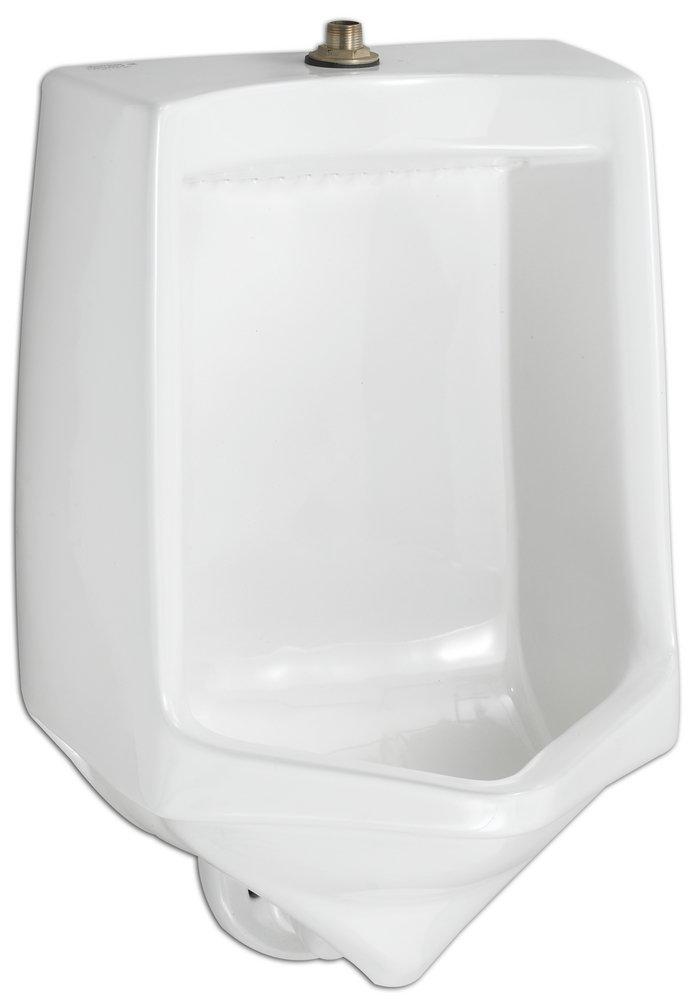

American Standard 6561017.020 Trimbrook 1 Gpf Siphon Jet Urinal White

Product Description

The American Standard 6561017.020 Trimbrook 1 gpf Siphon Jet Urinal in White offers efficient and reliable performance. This urinal uses just 1 gallon per flush, making it a low-consumption option suitable for commercial use.

• Low consumption (1.0 gpf/3.8 Lpf)
• Flushing rim
• Siphon jet flush action

Product Highlights

This urinal is constructed of durable vitreous china and features extended sides for added privacy. It is designed to comply with ANSI flush requirements and meets ADA standards with the rim set at 17 inches from the finished floor.

Product Information

Standard Information

• Manufacturer: American Standard
• Model: 6561017.020
• Color: White

Technical Specifications

• Quantity: 1
• Gallons Per Flush: 1.0
• Material: Vitreous China
• Inlet Spud: 3/4 inches
• Outlet Connection: 2 inches (NPTF), threaded
• Includes: Two wall hangers
• Bowl Height: 26 3/4 inches
• Mounting Type: Wall
• Certifications: ADA, ANSI
