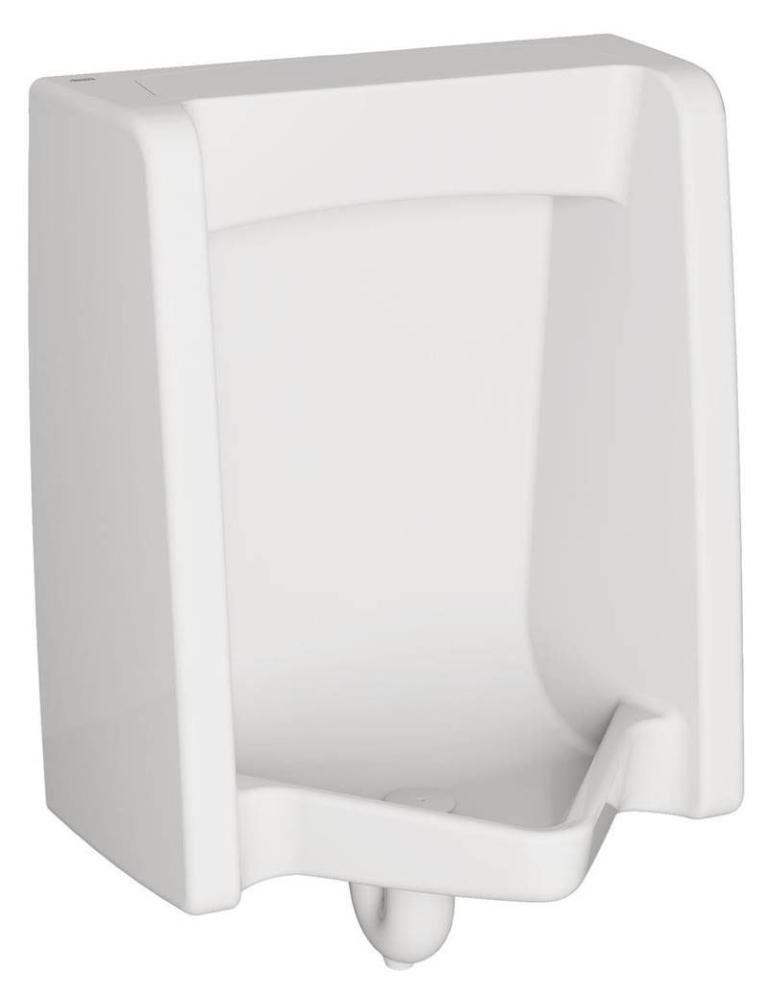

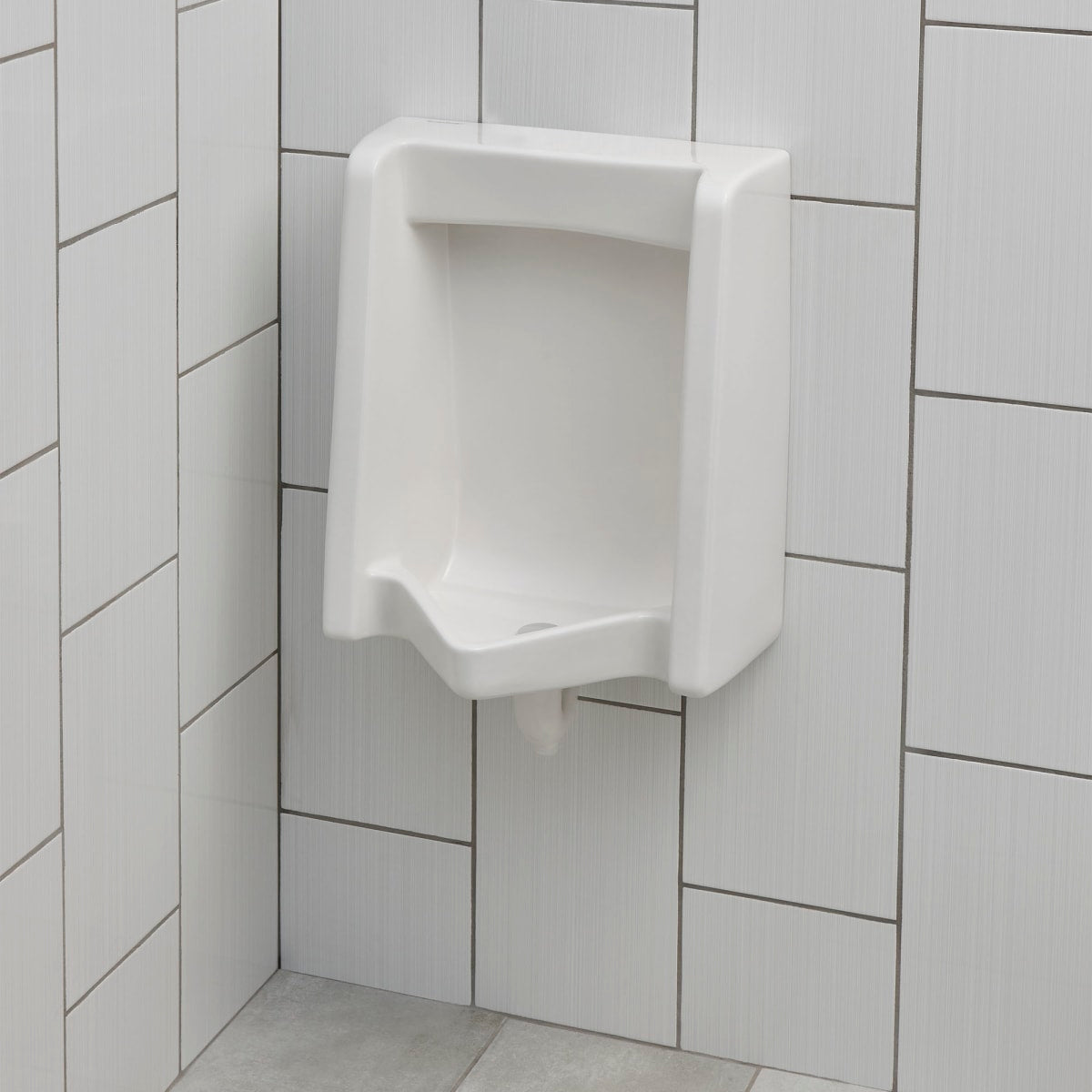

American Standard 6515.001.020 Washbrook 0.125 -1.0 gpf (0.47 - 3.8 Lpf) Back Spud Urinal

Product Description

The American Standard 6515.001.020 Washbrook Wash Out Urinal is designed for efficient water use while ensuring reliability. This ultra-high-efficiency urinal operates with a flow range of zero point one two five gallons per flush to one gallon per flush. It features a flushing rim and washout flush action, contributing to effective performance and cleanliness. The elongated fourteen inch rim is positioned from the finished wall for comfort and function. Extended sides provide added privacy.

• High Efficiency Urinal (HEU) with water-saving capabilities
• Operates from zero point one two five gpf to one gpf
• Includes wall hangers for installation

Product Highlights

WaterSense certified for reduced water consumption. ADA compliant for accessibility. Ideal for commercial restroom facilities.

Product Information

Standard Information

• Manufacturer: American Standard
• Model Number: 6515.001.020

Technical Specifications

• Width: eighteen and seven eighths inches
• Height: twenty six and one eighth inches
• Length: fourteen and one eighth inches
• Flow Rate: zero point one two five to one gpf
• WaterSense Certified: Yes
• Color: White
• Commercial or Residential: Primarily Commercial
• Inlet Spud: three fourths inch
• Threaded Outlet Connection: two inches
