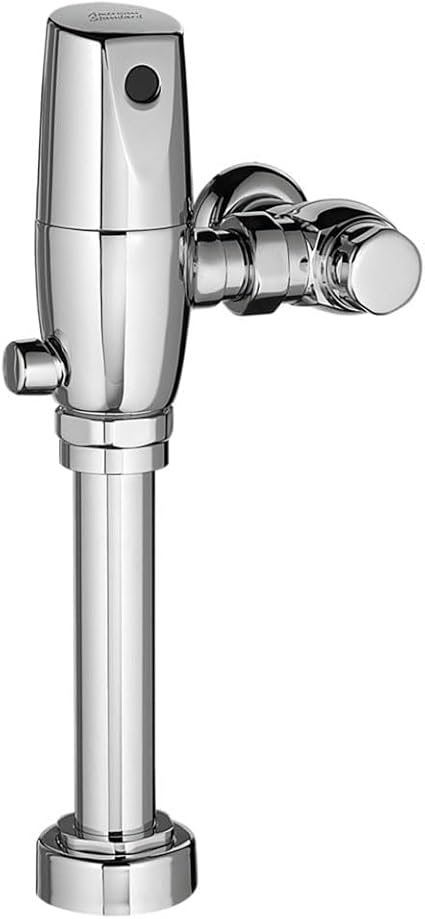

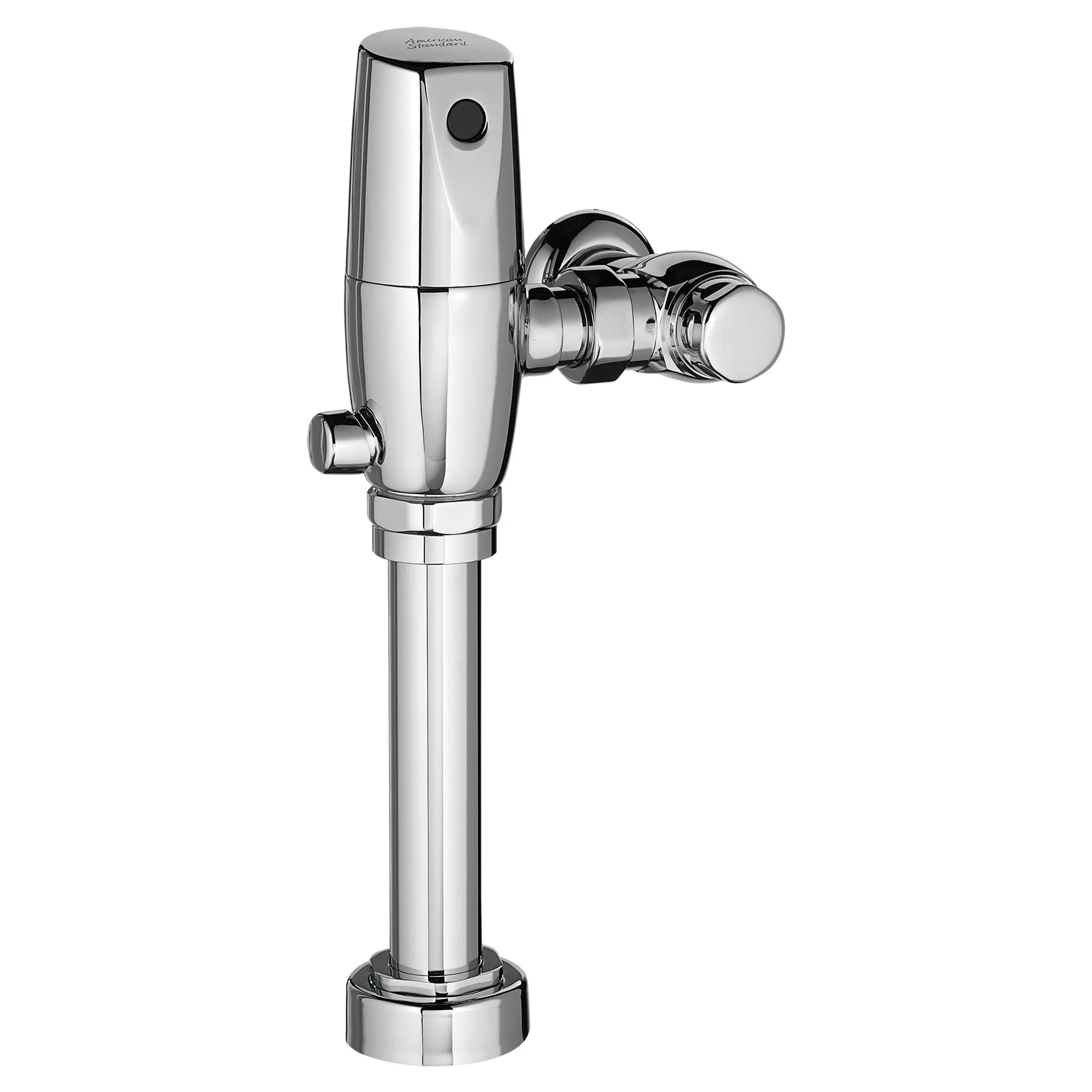

American Standard 6066761.002 Selectronic Dual Flush Valve 1.6/1.1 GPF

Product Description

The AMERICAN STANDARD 6066761.002 Selectronic dual flush valve features a dezincification resistant semi-red brass alloy. The Selectronic proximity system with universal sensor provides hygienic, hands-free operation. The self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance. The fail-safe valve automatically closes upon loss of power or water pressure.

• Dezincification resistant semi-red brass alloy
• Selectronic proximity system with universal sensor provides hygienic, hands free operation
• Self-cleaning piston with integral wiper spring significantly reduces clogging and maintenance

Product Highlights

This dual flush valve has adjustable sanitary flush, state-of-the-art electronics to prevent ghost flushing, and a fully mechanical manual override button.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 6066761.002
• Country of Origin: Mexico

Technical Specifications

• Item [Specifications]: Selectronic Dual Flush Valve
• Finish [Specifications]: Polished chrome
• Series [Specifications]: Selectronic
• Includes [Specifications]: Sweat Solder Kit, 1" Angle Stop
• Rough-In [Specifications]: 11-1/2"
• Standards [Specifications]: ADA Compliant, ANSI/ASME 112.19.2, ASSE 1037
• Flush Mode [Specifications]: Double Flush
• Inlet Size [Specifications]: 1" IPS
• Battery Life [Specifications]: 10 yr.
• Fixture Type [Specifications]: Toilet
• Power Source [Specifications]: Battery
• Sensor Range [Specifications]: 15-3/4" to 31-1/2"
• Valve Design [Specifications]: Piston
• Spud Coupling [Specifications]: 1-1/2"
• Pressure Range [Specifications]: 20 to 125 psi
• Brand and Series [Specifications]: American Standard Selectronic
• Exposed/Concealed [Specifications]: Exposed
• Gallons per Flush [Specifications]: 1.1/1.6
• Basic Power Source [Specifications]: Battery
• Fixture Connection [Specifications]: Top Spud
• Fitting Connection Size: 25.40 mm
• Fitting Material: Brass
• Flow Rate: 1.1 - 1.6 GPF
• Batteries Included: Yes
• Batteries Required: Yes
• Battery Lifetime: 384000
• Brand: American Standard
• Material: Brass
• Exterior Finish: Brass
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: NPT
• Number of Ports: 2
• Outlet Connection Size: 1.5 Inches
• Specification Met: RoHS
• Number of Packs: 1
• Thread Type: NPT
• Thread Size: 1/2 inch
• Valve Type: Piston Valve
• Size: 1.6/1.1 GPF
• Model: 6066761.002
• Condition: New
• Installation: Exposed
• Flush Action: Electronic
• Flush Type: Sensor
