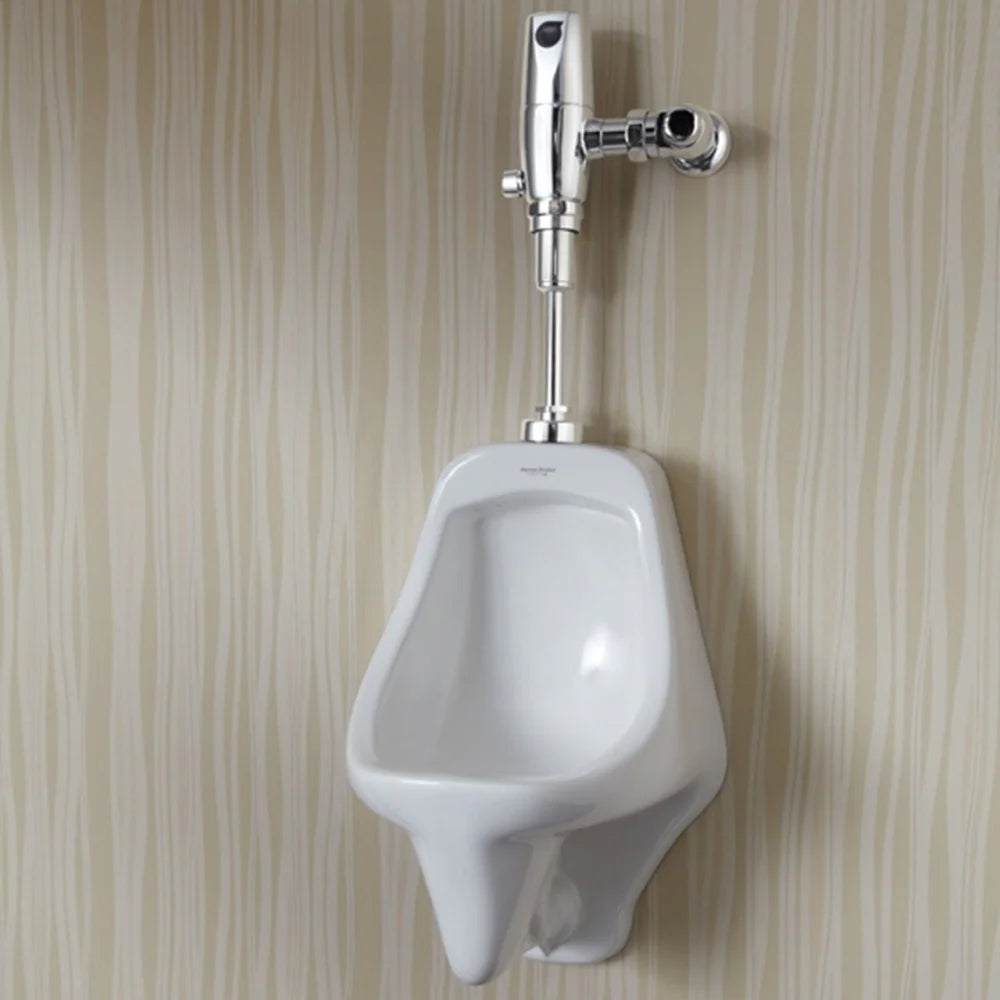

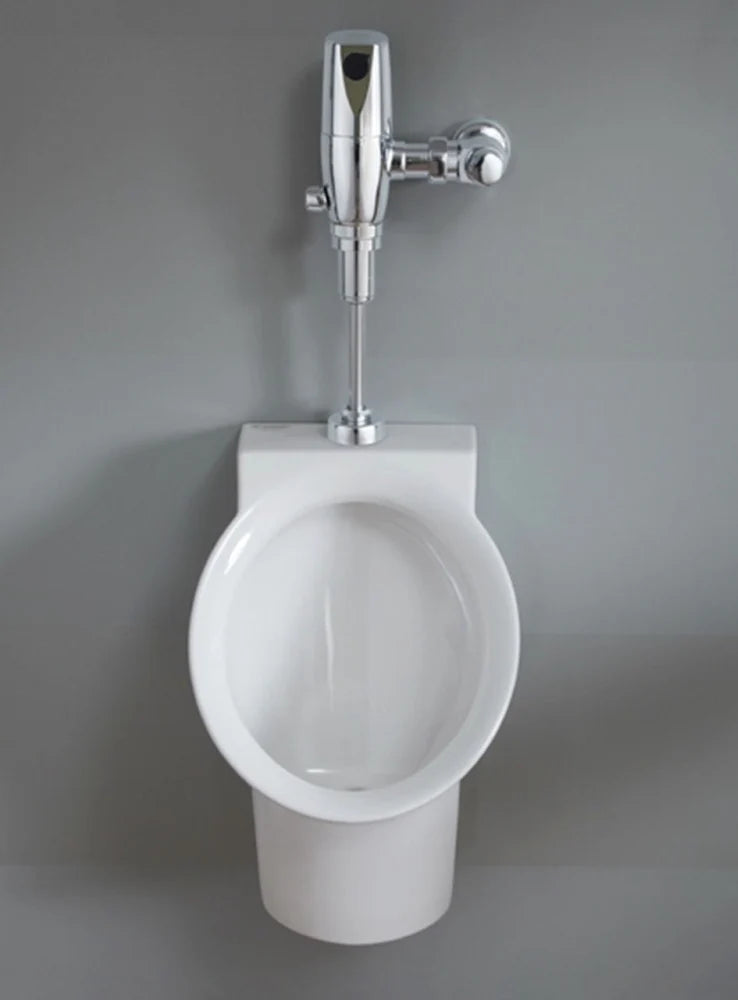

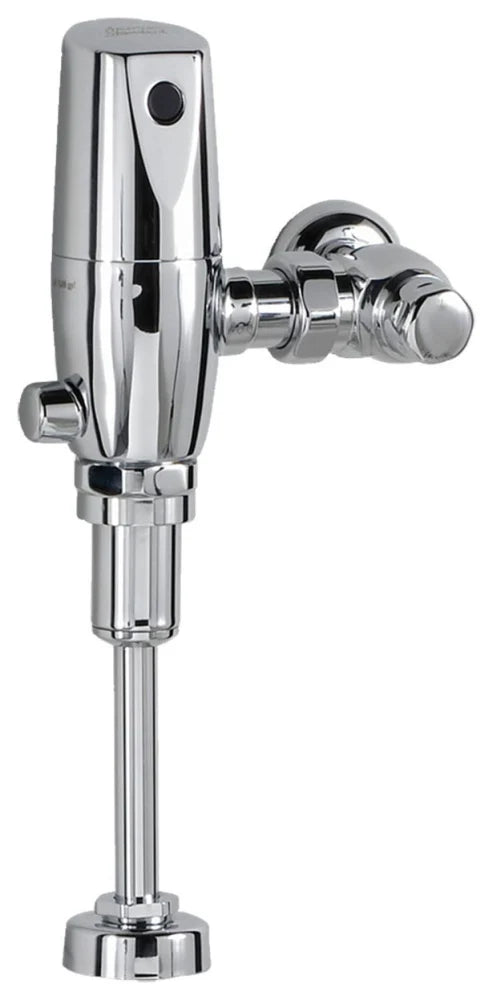

American Standard 6063013.002 Selectronic Battery Urinal Flush Valve 0.125 GPF

Product Description

The American Standard 6063013.002 is a sensor-operated urinal flush valve designed for battery operation. This valve is ideal for high-use facilities where hygiene and efficiency are priorities.

• Acts as a touch-free solution to maintain cleanliness.
• Includes a self-cleaning piston to reduce maintenance needs.
• Offers a flow rate of 0.125 GPF for efficient water use.

Product Highlights

This flush valve is perfect for modern restroom setups, ensuring durability and ease of use.

Product Information

Standard Information

• Brand: American Standard
• MPN: 6063013.002

Technical Specifications

• Actuation Type: Sensor Operated, Battery Powered
• Body Configuration: Top Spud
• Inlet Size: 3/4 Inch
• End Connection: IPS
• Spud Size: 3/4 Inch
• Body Material: Dezincification Resistant Brass Alloy
• Flow Rate: 0.125 GPF
• Mounting Type: Top Mount
• Battery Details: CR-P2 Lithium
• Sweat Solder Kit Supplied: Yes
• Inclusions/Features: Angle Stop with Back Flow Protection and Vandal Resistant Cap, 3/4 Inch High Back Pressure Vacuum Breaker with Spud Coupling and Flange, Self-Cleaning Piston, Selectronic Proximity System, Fully Mechanical Manual Override Button, Chemical Resistant EPDM Seal
• Applicable Standard: ADA, CALGreen
• Rough-In Size: 11-1/2 Inch
• Pressure Rating: 20 PSI (Flowing), 80 PSI (Static)
