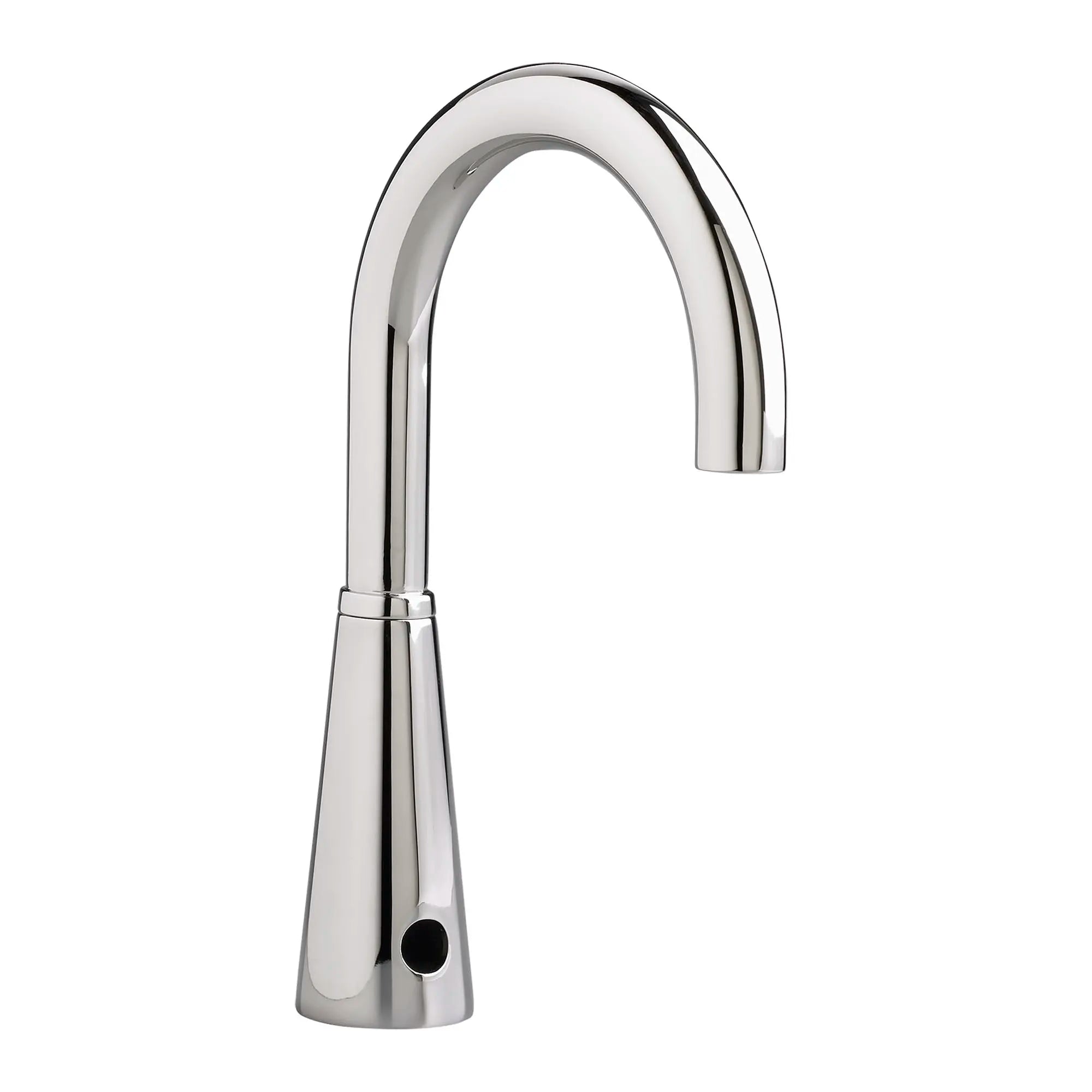

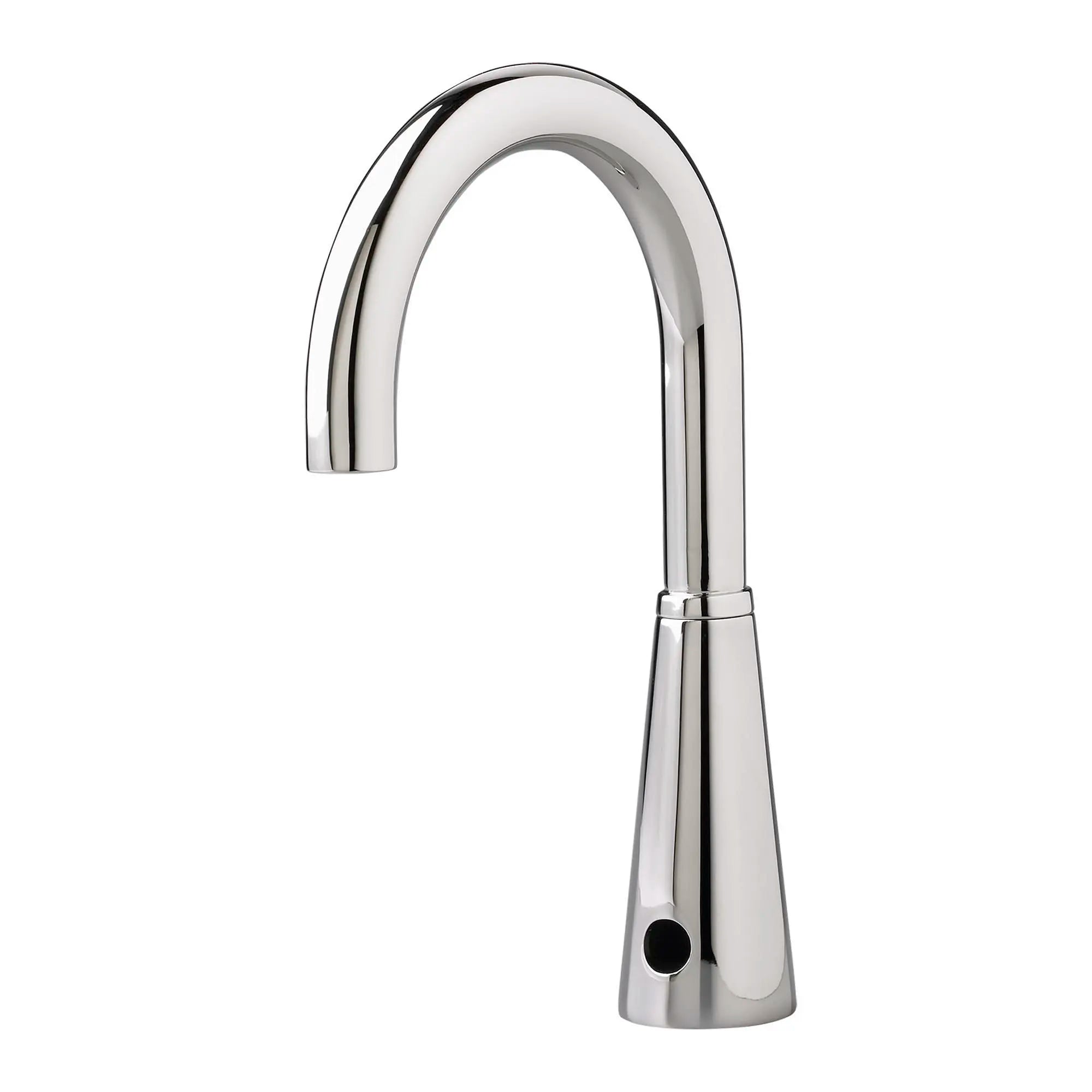

American Standard 605B.173.002 Selectronic IC touchless faucet base model (1.5 GPM/5.7 LPM)

Product Description

The American Standard 605B.173.002 Selectronic IC touchless faucet base model is a modular sensor faucet designed for commercial and healthcare environments, providing a 1.5 GPM (5.7 LPM) laminar flow to minimize splashing. The unit has a durable brass body with stainless steel components, a programmable infrared sensor, an optional auto purge feature, and a 55-second auto shut-off timer. Control box and power supply are required and sold separately.

• Programmable infrared sensor activation with optional auto purge and 55-second auto shut-off timer
• Laminar flow plain spout (1.5 GPM/5.7 LPM) with vandal-resistant brass body and stainless steel components
• Modular design requires separate control box and power supply; supports single-hole installation with optional deck plates

Product Highlights

Modular touchless faucet base with programmable infrared sensor and 1.5 GPM laminar flow

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 605B.173.002

Technical Specifications

• Model Number: 605B.173.002
• Flow Rate: 1.5 GPM (5.7 LPM)
• Materials: Brass body; stainless steel components; metal and plastic components
• Finish: Polished chrome
• Installation Type: Single-hole (optional 4-in. or 8-in. deck plates available)
• Batteries Required: Yes
• Required Components: Control box and power supply (required, sold separately)
• Application: Healthcare; commercial
• Vandal Resistance: Yes
• Sensor Type: Programmable infrared sensor
• Spout Type: Laminar flow, plain spout end
• Auto Shut-off Timer: 55 seconds
• Auto Purge: Optional
