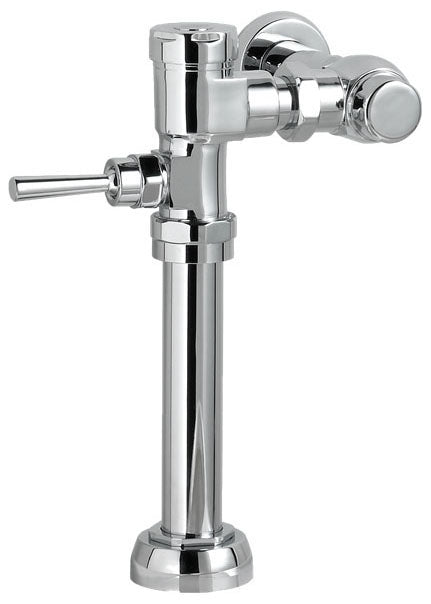

American Standard 6047.161.002 Toilet Flush Valve 1.6 GPF Top Spud Chrome

Product Description

The American Standard 6047.161.002 Toilet Flush Valve is designed for commercial applications. This manual flush valve offers a flow rate of 1.6 gallons per flush (GPF) and features a top spud design.

• Piston operation for superior flush accuracy
• Non-hold open handle
• Self-cleaning brass piston

Product Highlights

This flush valve from American Standard is ideal for high-traffic commercial restrooms. The cast brass construction ensures durability, while the chloramine-resistant seals enhance longevity. The adjustable tailpiece allows for flexible rough-in installations.

Product Information

Standard Information

• UPC: 01261146534
• Manufacturer: American Standard
• MPN: 6047.161.002

Technical Specifications

• Type: Exposed, Self-Cleaning
• Actuation Type: Non-Hold-Open Handle
• Body Configuration: Manual Top Spud
• Inlet Size: 1 Inch
• Outlet Size: 1-1/2 Inch
• Spud Size: 1-1/2 Inch
• Body Material: Cast Brass
• Flow Rate: 1.6 GPF
• Mounting Type: Top Mount
• Inclusions/Features: Vacuum Breaker, Valve Body, Metal Cover, Vandal Resistant Stop Cap, Spud Coupling and Flange, Chloramine Resistance, Adjustable Tailpiece
• Applicable Standard: ADA, ASME A112.19.2, ASSE 1037, ANSI A117.1

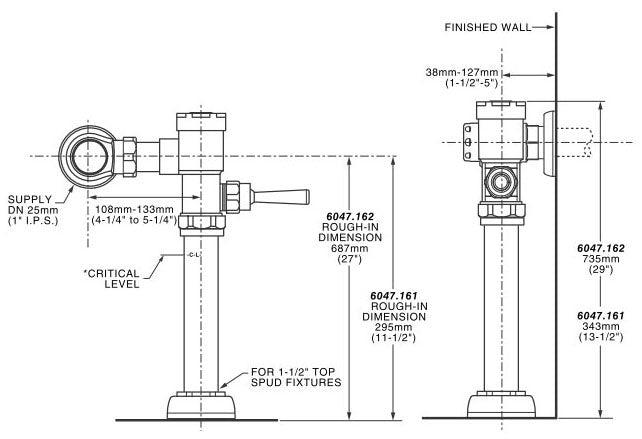

• Overall Height: 13.5 inches
• Rough-In Size: 11.5 inches
• Finish: Polished Chrome
• Operating Pressure: 25 PSI (Flowing), 80 PSI (Static)
