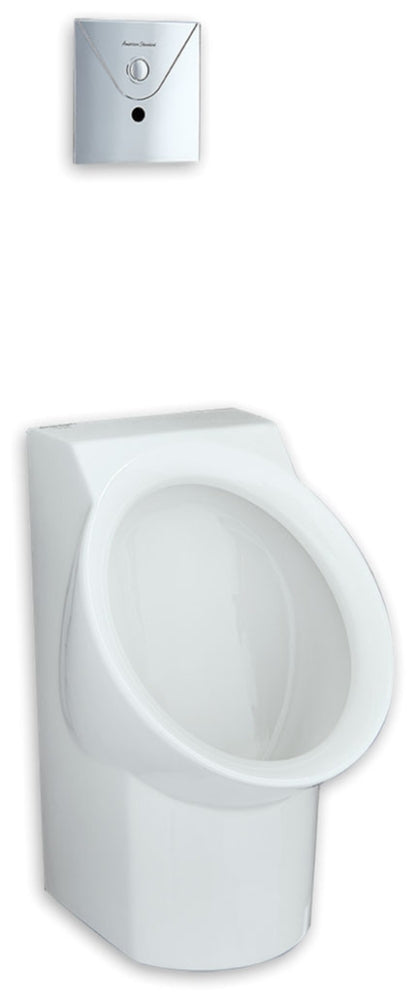

American Standard 6043.001EC.020 Decorum Pint Urinal 0.125 GPF

Product Description

The American Standard 6043.001EC.020 is a commercial urinal designed for wall mounting. It utilizes a washout flush action with a low flush rate of 0.125 gallons per flush. This model is made from vitreous china and features a back spud inlet for easy installation.

• Wall Mounted Urinal
• Flush Rate: 0.125 GPF
• ADA Compliant

Product Highlights

This urinal's design focuses on efficiency and ease of use, making it ideal for commercial environments.

Product Information

Standard Information

• Manufacturer: American Standard
• Model Number: 6043.001EC.020

Technical Specifications

• Type: Washout Flush Action
• Material: Vitreous China
• Color/Finish: White
• Height: 21.5 inches
• Length: 13.31 inches
• Depth: 14 inches
• Inlet Connection: 3/4 inch
• Outlet Connection: 2 inch female threaded
• Gallons per Flush: 0.125
• Recommended Working Pressure: 20 PSI (Flush), 80 PSI (Static)
• Applicable Standards: ADA, ASME A112.19.2/CSA B45.1, ANSI A117.1, CEC, EPA
