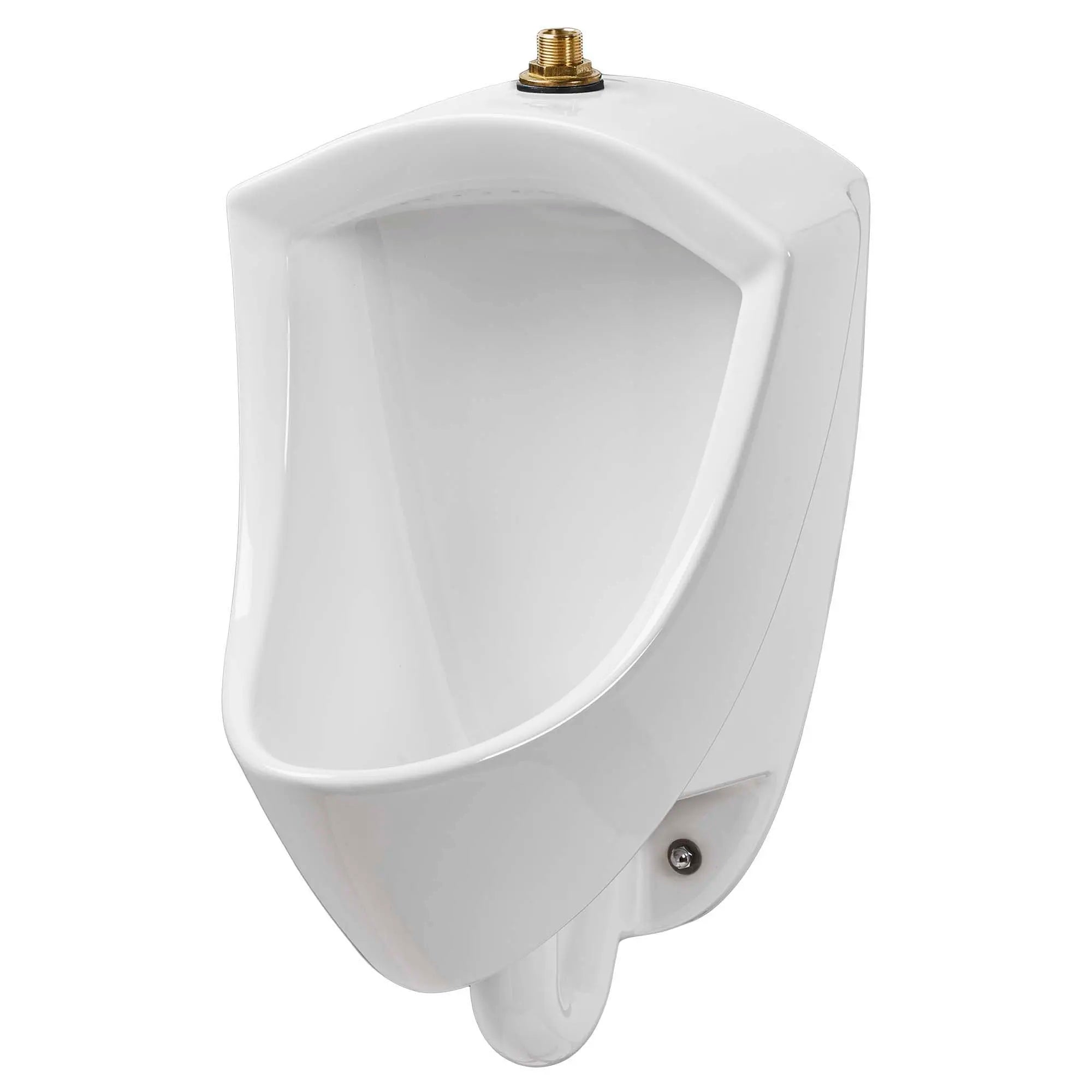

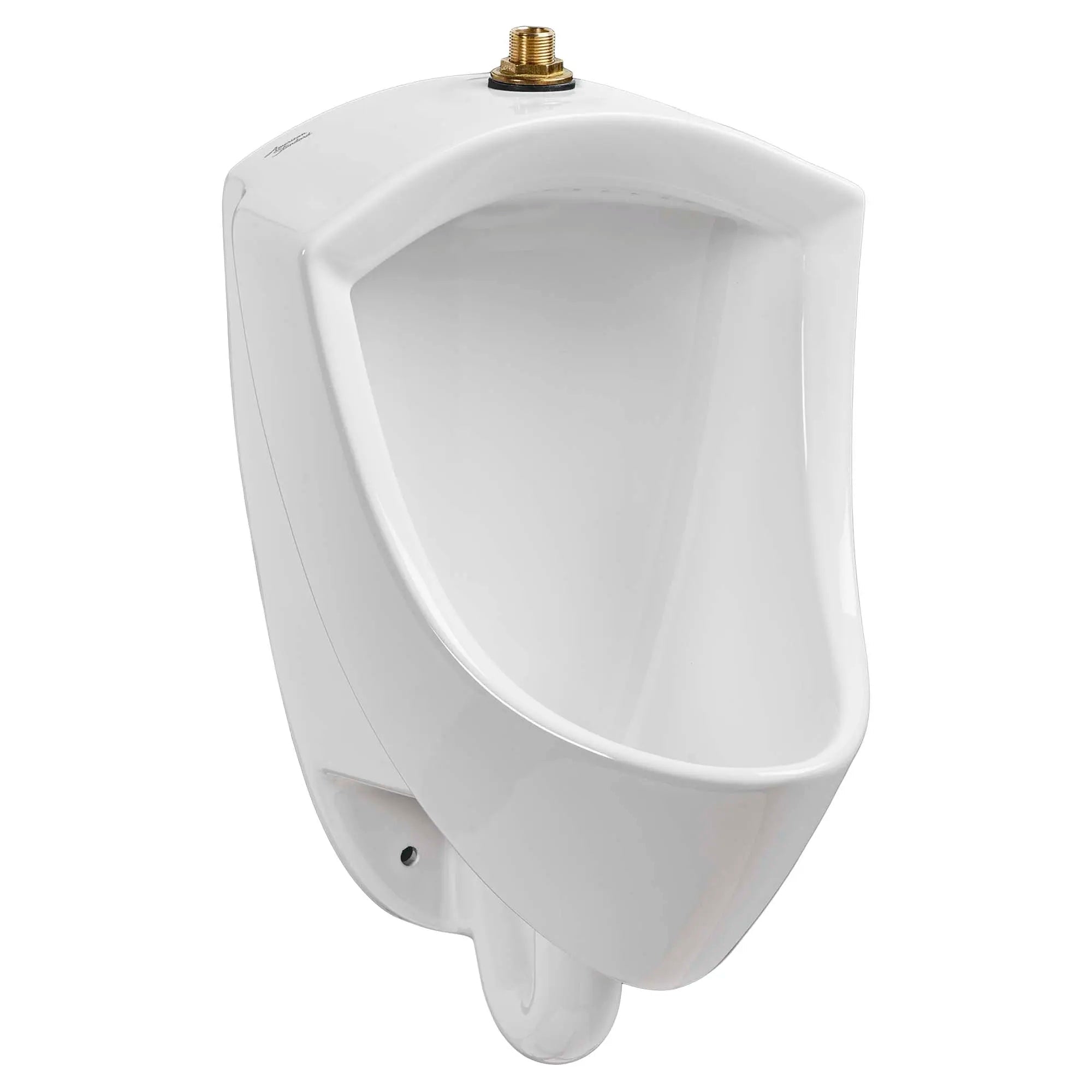

American Standard 6002.001WHT Pintbrook® 0.125 – 0.5 gpf Top Spud Urinal

Product Description

The American Standard Pintbrook Urinal, MPN 6002.001WHT, is a High Efficiency washdown urinal, operating between 0.125 gpf to 0.50 gpf (0.47 Lpf/1.9 Lpf) to conserve water. Its design provides splash protection. Features a 3/4" inlet top spud and includes wall hangers for easy installation. This urinal is CEC compliant.

• High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
• Optimized chinaware contours provide superior splash protection
• 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection

Product Highlights

The Pintbrook urinal features a water-efficient design, splash protection, and easy installation with included wall hangers. It operates between 0.125 gpf and 0.5 gpf.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 6002.001WHT
• Country of Origin: Mexico

Technical Specifications

• CEC Compliant Product: Yes
• GPF Maximum: 0.5 gpf
• GPF Minimum: 0.125 gpf
