American Standard 6002.001.020 Pintbrook Washout Urinal with Top Spud (White) replacement MPN

Product Description

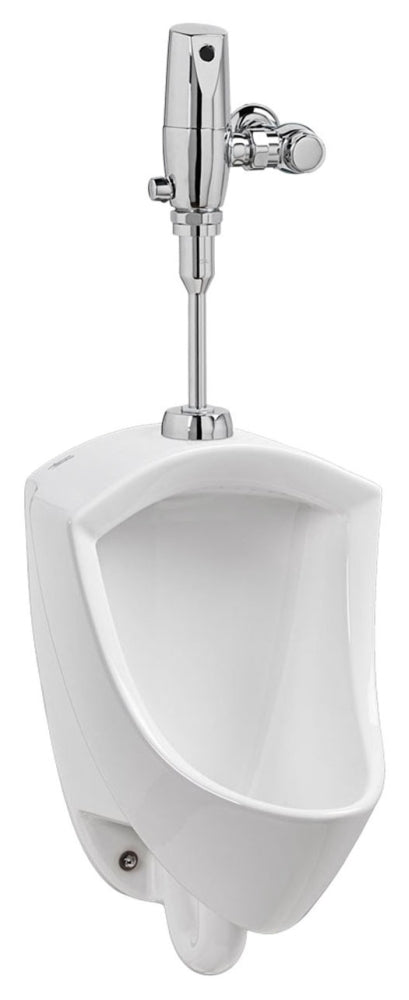

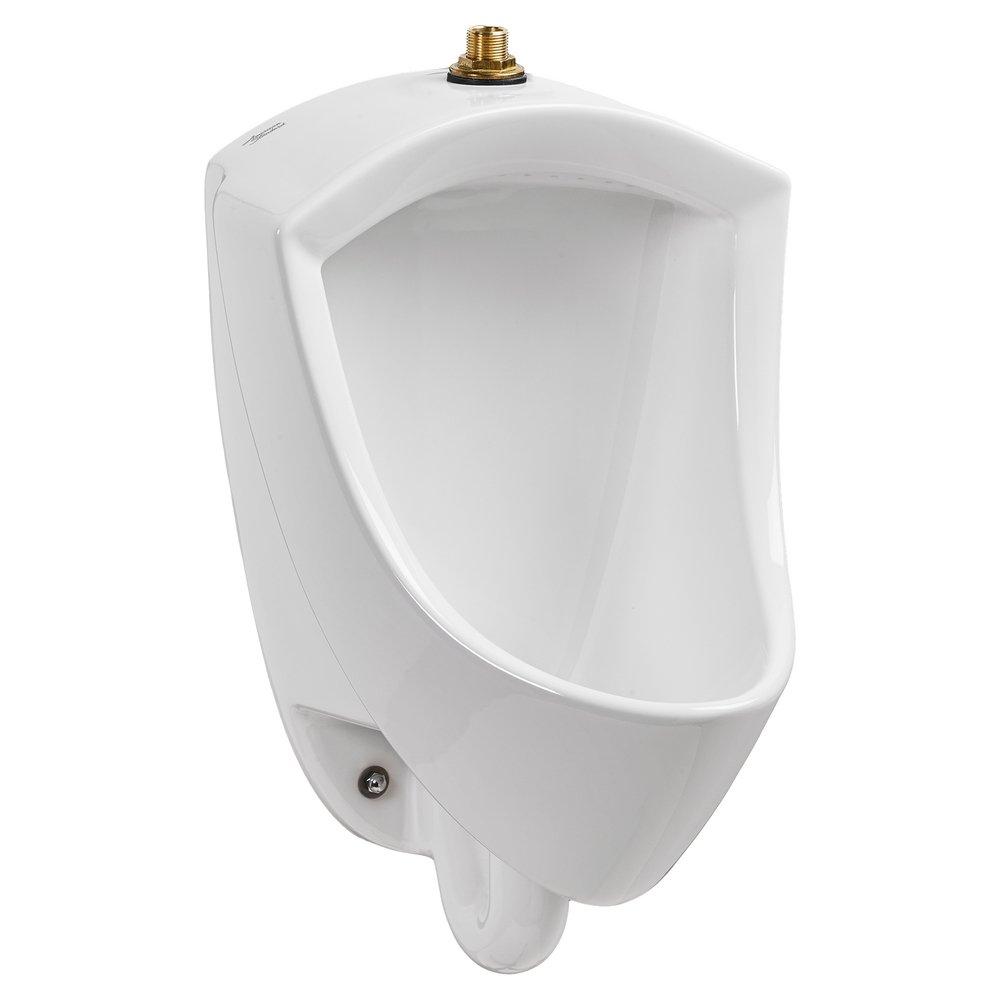

The American Standard Pintbrook Washout Urinal with Top Spud (MPN: 6002.001.020) is designed for efficiency and effectiveness in commercial washrooms. This high-efficiency urinal operates between zero point one two five gallons per flush to zero point five gallons per flush, making it a sustainable choice. The optimized design ensures splash protection and includes a three-fourths inch inlet top spud connection for easy installation.

• High-efficiency operation
• Includes wall hangers for installation
• Vitreous china construction for durability

Product Highlights

The Pintbrook urinal is both ADA compliant and WaterSense certified, contributing to water conservation in any restroom setting.

Product Information

Standard Information

• Brand: American Standard
• Manufacturer Part Number: 6002.001.020

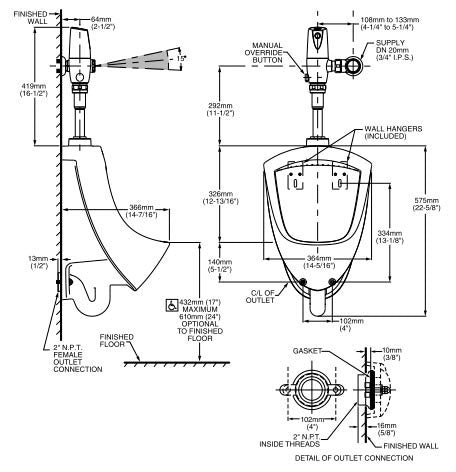

Technical Specifications

• Type: Washdown Urinal
• Color/Finish: White
• Material: Vitreous China
• Height: twenty-two and five-eighths inches
• Length: fourteen and five-sixteenths inches
• Depth: fourteen and seven-sixteenths inches
• Gallons per Flush: zero point one two five to zero point five
• Inlet Connection: three-fourths inch
• Outlet Connection: two inch threaded
• Wall Mount: Yes
• Pressure Rating: twenty PSI (flush), eighty PSI (static)
• ADA Compliant: Yes
