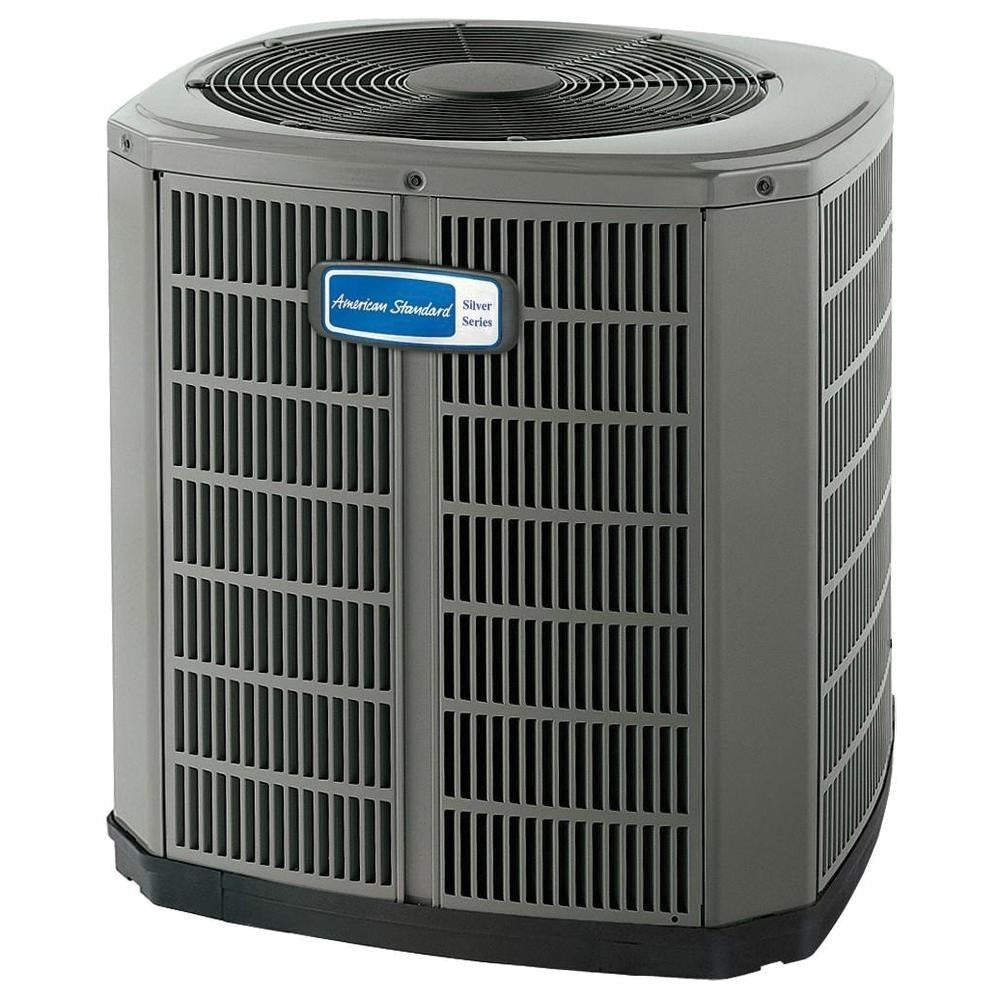

American Standard 5A7A6024A1000A Ac 2 Ton 14.3 SEER2

Product Description

The AMERICAN STANDARD 5A7A6024A1000A is a single-stage residential central air conditioner rated at 24,000 BTU/h (2 tons) with a 14.3 SEER2 efficiency rating. Part of the Silver 15 Series, this outdoor condensing unit operates on R-454B refrigerant, an A2L low-GWP refrigerant that meets current environmental standards. It runs on 208/230-volt single-phase power and delivers consistent cooling at a measured 73 dB sound level. The unit is Energy Star compliant and is designed for installation by licensed HVAC contractors in residential split-system applications.

The 5A7A6024A1000A fits residential split-system cooling installations where a reliable, single-stage condensing unit is required. With a 2-ton capacity, it is sized for small to medium residential spaces. The unit is part of the Silver 15 Series collection, targeting straightforward replacement or new-construction installations that demand a proven efficiency class. Note that this unit is not for sale in California (not CEC compliant) and is sold to licensed contractors only through authorized distribution.

Key Features

• 14.3 SEER2 energy efficiency rating meets federal minimum standards for most U.S. regions
• Single-stage compressor provides straightforward, reliable cooling operation
• R-454B refrigerant is A2L compatible and ozone-safe, aligned with current refrigerant transition requirements
• Energy Star compliant for qualifying efficiency incentive programs
• 73 dB sound rating for standard residential ambient noise levels
• EER2 of 11.7 supports consistent performance under peak load conditions

Compatibility

Designed as an OEM Silver 15 Series single-stage condensing unit for use in residential split-system configurations; must be paired with a compatible A2L-rated air handler or coil and refrigerant line set approved for R-454B service. Not for sale in California.

Installation Notes

Installation must be performed by a licensed HVAC contractor holding the appropriate EPA Section 608 refrigerant certification, as R-454B is an A2L mildly flammable refrigerant requiring compliance with current ASHRAE 15 and local mechanical code requirements. Disconnect and lock out all electrical power before servicing the unit. Verify that all indoor components, line sets, and recovery equipment are rated and listed for use with A2L refrigerants prior to commissioning. Follow the manufacturer installation instructions for proper clearances, electrical connections, and refrigerant charge procedures.

Technical Specifications

• Collection: Silver 15 Series
• Cooling Capacity: 24,000 BTU/h (2 Ton)
• SEER2: 14.3
• SEER2 Range: 14.3 - 15.1
• EER2: 11.7
• EER2 Range: 11.7 - 23.0
• Compressor Stages: Single Stage
• Refrigerant: R-454B
• A2L Compatible: Yes
• Voltage: 208/230V
• Sound Level: 73 dB
• Height: 33 inches
• Width: 30 inches
• Depth: 33 inches
• Energy Star Compliant: Yes
• CEC Compliant: Not for Sale in CA

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 5A7A6024A1000A
