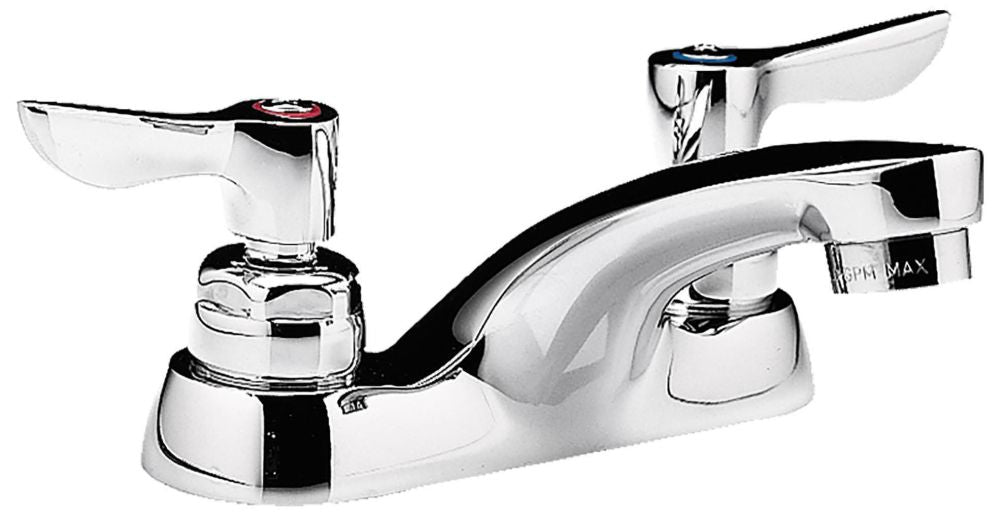

American Standard 5502.140.002 Centerset Lavatory Faucet

Product Description

The AMERICAN STANDARD 5502.140.002 is a centerset lavatory faucet designed for commercial restroom installations. Finished in polished chrome, it mounts on standard 4-inch center two-hole sink decks and delivers a controlled 1.5 GPM multi-laminar spray pattern through a conventional spout. The ceramic disc, washerless valve cartridge provides long-term drip resistance without routine packing or seat maintenance. Two lever handles allow precise hot and cold mixing. The faucet ships with a grid strainer drain and suits decks up to 1-3/8 inches thick. Licensed plumbers and commercial fixture installers are the primary trades for this unit.

This faucet is suited for commercial lavatory applications where durability and low maintenance are priorities. The multi-laminar flow pattern reduces splash in high-traffic restroom environments. The 1/2-inch NPSM supply connections are compatible with standard commercial rough-in supply stops. The Monterrey collection styling is appropriate for restrooms in offices, healthcare facilities, and hospitality settings where a clean chrome aesthetic is specified.

Key Features

• Ceramic disc, washerless valve cartridge for reliable, drip-free long-term performance
• 1.5 GPM multi-laminar spray pattern reduces splash and conserves water
• Polished chrome finish suited for commercial restroom environments
• Two lever handles for intuitive hot and cold control
• Includes grid strainer drain
• Mounts on 4-inch centerset, two-hole sink decks up to 1-3/8 inches thick

Compatibility

Designed as an OEM-style replacement or new-installation centerset lavatory faucet for commercial two-hole sink decks with 4-inch center spacing and 1/2-inch NPSM supply connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off hot and cold water supply stops and relieve line pressure before beginning work. Verify deck thickness does not exceed 1-3/8 inches before mounting. Do not overtighten the mounting hardware against the sink deck surface, as this may crack ceramic or stone lavatories.

Technical Specifications

• Center Distance: 4 inches
• Connection Size: 1/2 inch
• Connection Type: NPSM
• Drain Type: Grid Strainer
• Flow Rate: 1.5 GPM
• Maximum Deck Thickness: 1-3/8 inches
• Number of Faucet Holes: 2
• Number of Handles: 2
• Spray Pattern: Multi-Laminar
• Handle Type: Lever
• Spout Height: 1-3/4 inches
• Spout Reach: 3-3/4 inches
• Spout Type: Conventional
• Valve/Cartridge Type: Ceramic Disc/Washerless
• Finish: Polished Chrome

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 5502.140.002
