American Standard 4A7C3048D4000D Split Condenser 4 Ton (40,000-50,000 BTU/h)

Product Description

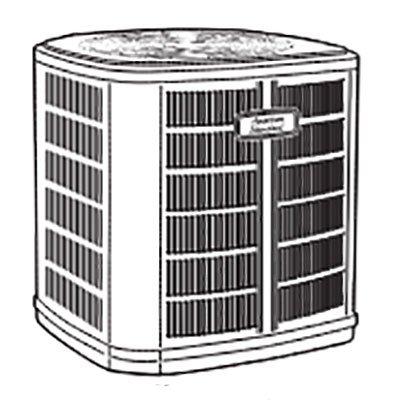

The American Standard 4A7C3048D4000D is a split condenser that provides single-stage cooling with a 4 ton capacity (40,000–50,000 BTU/h) using R-410A refrigerant. It operates on a 460 V, three-phase, 60 Hz electrical supply and includes 3/8 inch liquid and 7/8 inch suction refrigerant lines. The unit is part of the Silver 13 series and measures 29 x 37 x 34 inches, weighing 235 lbs.

• Single-stage cooling; capacity 4 tons (40,000–50,000 BTU/h)
• Electrical: 460 V / 3 phase / 60 Hz
• Refrigerant: R-410A with 3/8 in liquid and 7/8 in suction lines

Product Highlights

Single-stage, three-phase 4 ton split condenser using R-410A; 460 V/3/60; dimensions 29 x 37 x 34 in; 235 lb

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 4A7C3048D4000D

Technical Specifications

• Brand: American Standard
• Manufacturer: American Standard Heating & Air Conditioning (Ingersoll Rand)
• MPN: 4A7C3048D4000D
• Category: Split Condensers
• Series: Silver 13
• Capacity: 4 tons (40,000-50,000 BTU/h)
• Refrigerant Type: R-410A
• Refrigerant Line Sizes: 3/8 in (liquid), 7/8 in (suction)
• Input Voltage: 460 V / 3 phase / 60 Hz
• Cooling Stage: Single stage
• Dimensions (H x W x D): 29 x 37 x 34 inches
• Weight: 235 lbs
• Additional Info: R-410A split system; single stage; three phase
