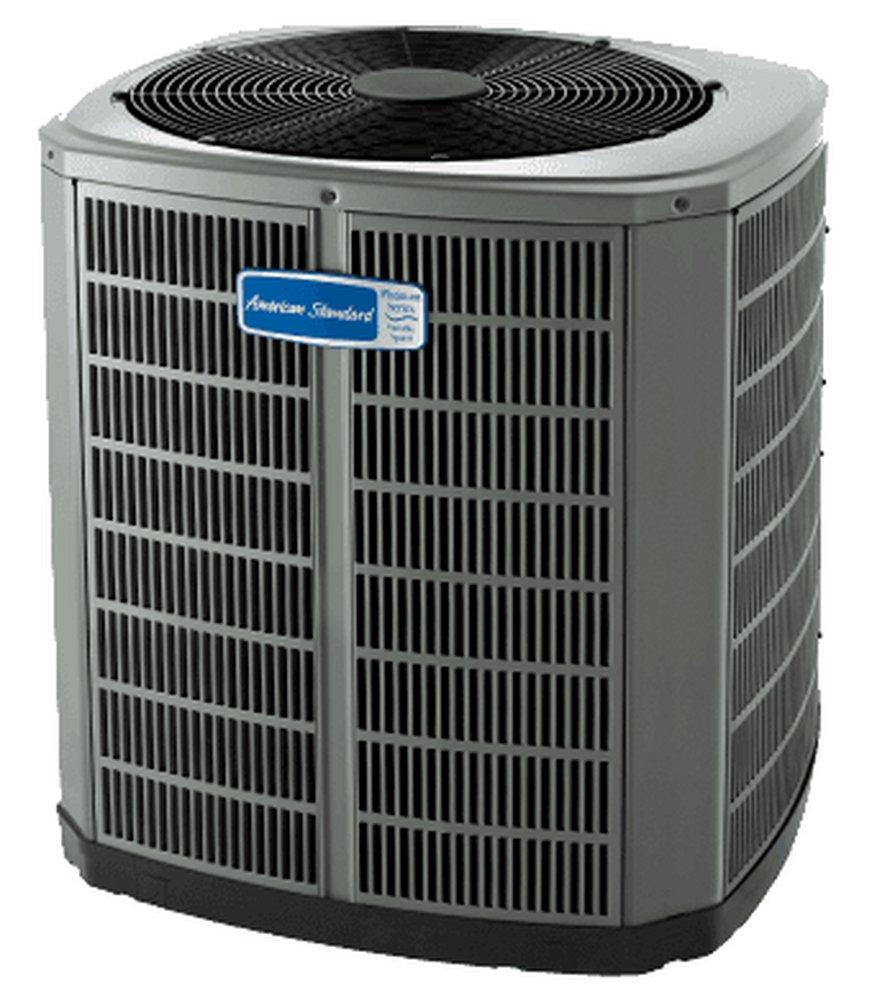

American Standard 4A7A6024N Gold 16 Air Conditioner 2 Ton

Product Description

The AMERICAN STANDARD 4A7A6024N is a Gold 16 Series air conditioner. This central air conditioner runs at 70% capacity and increases to the second stage on hotter days with its two-step compressor. It uses an ozone-safe refrigerant and features a durable Spine Fin coil with rust-resistant coating.

• Up to 18 SEER
• 2 cooling stages
• Optimize indoor air quality, if you add an AccuClean air cleaner, your air conditioner can filter out more dust and harmful irritants from the air so you can breathe easier

Product Highlights

Efficient and reliable cooling with environmentally friendly refrigerant and quiet operation.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 4A7A6024N1000A

Technical Specifications

• Manufacturer: American Standard Heating & Air Conditioning (Ingersoll Rand)
• Model #: 4A7A6024N
• A2L Compatible: No
• AMP: 20
• BTU: 24000
• BTU Cooling Rating: 24000 Btu/h
• CFM: 3200
• Coil Type: Spine Fin
• Collection: Gold 16 Series
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Decibel Rating (dB): 72 dB
• Depth: 34
• Energy Star Compliant: Yes
• Factory Std. Refrigerant Charge: 4
• Height: 41
• Horsepower: 1/8 hp
• Liquid Line (OD): 3/8
• MBH: 24
• Max Fuse Size: 20
• Phase: Single Phase
• RPM: 825
• Refrigerant: R-410A
• Refrigerant Control: TXV
• SEER: 16.0
• SEER2: 16.2
• SEER2 Range: 15.2 - 40.0
• Suction Line (OD): 3/4
• Tonnage: 2 Ton
• UL Listed: UL 1995
• Volts: 208/230V
• Width: 37
• Make: American Standard
• Category: Cooling
• Model code: 4A7A6024N
• Capacity: 2 tons
