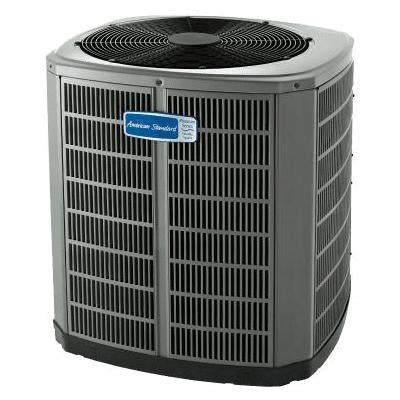

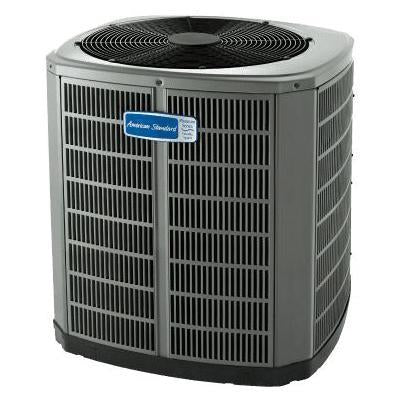

American Standard 4A6H5030N1000A Silver 15 Series 4A6H5 Heat Pump 30,000 Btu/hr (2.5 Ton)

Product Description

The American Standard 4A6H5030N1000A is a Silver 15 Series 4A6H5 single-stage heat pump providing 30,000 Btu/hr (2.5 ton) cooling capacity. It operates on 208/230 V, 60 Hz, single phase with a 20 A rating and uses R-410A refrigerant. Performance ratings include 15.2 SEER, 12 EER, and 7.8 HSPF2. The unit features a Duration compressor, spine fin coil, galvanized steel cabinet, 3/8 in liquid and 3/4 in suction lines, and a 70–75 dBA sound level.

• 30,000 Btu/hr (2.5 ton) capacity with single-stage Duration compressor
• Electrical: 208/230 V, 60 Hz, single phase, 20 A; refrigerant R-410A
• Ratings and physicals: 15.2 SEER, 15.6 SEER2 (noted), 12 EER, 7.8 HSPF2; sound 70–75 dBA; dimensions 32-5/8 x 29-3/4 x 28-3/4 in

Product Highlights

Outdoor single-stage heat pump for 208/230 V single-phase systems with Duration compressor, spine fin coil, and galvanized steel cabinet.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 4A6H5030N1000A

Technical Specifications

• Brand: American Standard
• Manufacturer: Trane International Inc
• MPN: 4A6H5030N1000A
• Manufacturer Part Number: 385189
• Model: 4A6H5
• Series: Silver 15 Series
• Cooling Capacity: 30,000 Btu/hr
• Tonnage: 2.5 Ton
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: Single phase (1.0 ph)
• Amperage: 20 A
• Refrigerant: R-410A
• Compressor Type: Duration
• Compressor Stages: Single-stage
• Coil Type: Spine Fin
• SEER Rating: 15.2
• SEER2 Rating: 15.6
• EER Rating: 12
• HSPF2 Rating: 7.8
• Sound Level: 70 to 75 dBA
• Dimensions: 32-5/8 in H x 29-3/4 in W x 28-3/4 in D
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Enclosure Finish: Galvanized steel
• Material: Steel
• Finish: Galvanized
