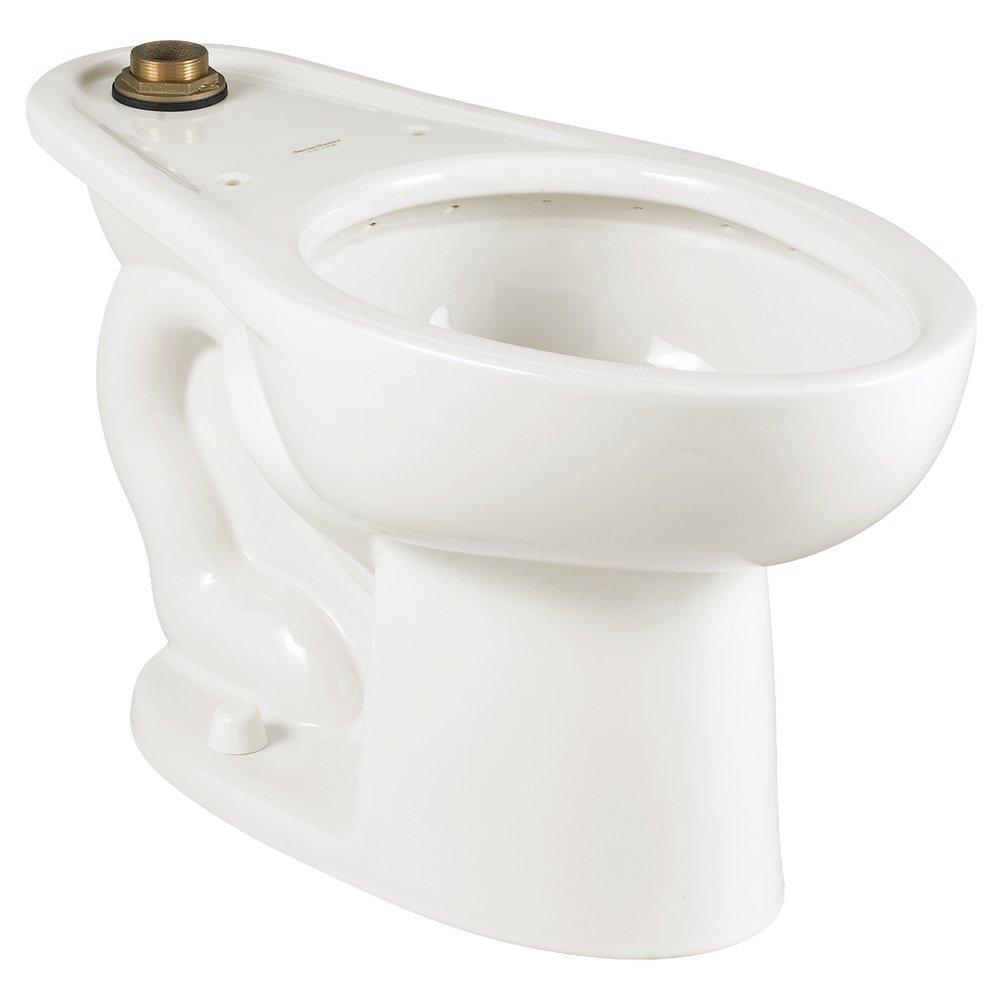

American Standard 3451001.020 Madera 1.1 – 1.6 gpf Elongated Toilet Bowl

Product Description

The American Standard 3451001.020 is an elongated toilet bowl designed for maximum efficiency and ease of use. It features a high-efficiency flush system, operating between 1.1 gallons per flush (GPF) and 1.6 GPF, making it an eco-friendly choice. This toilet bowl is suitable for both 10-inch and 12-inch rough-in installations.

• Elongated bowl shape for added comfort
• EverClean surface resists stains and odors
• Includes a fully glazed trapway for smooth drainage

Product Highlights

This model is designed for durability and high performance, perfect for commercial settings where reliability is crucial.

Product Information

Standard Information

• Material: Vitreous China
• Mounting Type: Floor Mount

Technical Specifications

• Bowl Height: 15 inches
• Rough-In Size: 10 inches or 12 inches
• Inlet Connection: 1-1/2 inch Spud
• Gallons per Flush: 1.1 to 1.6 GPF
• Trapway Size: 2-1/8 inches
• Recommended Working Pressure: 25 PSI (Flush), 80 PSI (Static)
• Applicable Standards: ANSI/ASME A112.19.2, CSA B45.1, CEC, EPA
• Warranty: 1 Year Limited
