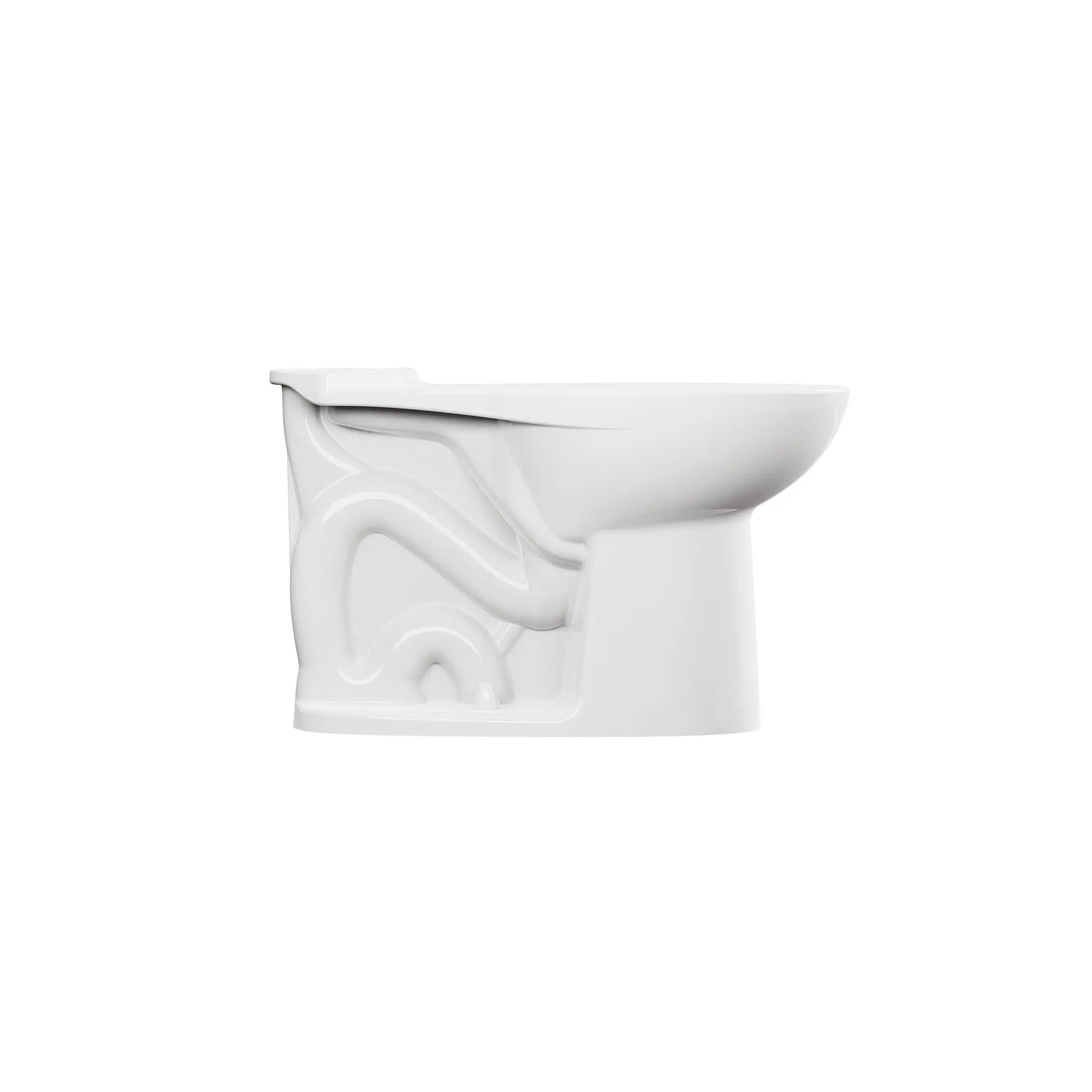

American Standard 3407a101020 Elongated Toilet Bowl 0.8 Gpf

Product Description

The AMERICAN STANDARD 3407a101020 is a chair-height elongated toilet bowl designed for residential and light commercial bathroom installations. It uses vacuum-assisted flush technology that pairs with the EcoStrength Aspirations tank (sold separately) to deliver a powerful, thorough flush at just 0.8 gallons per flush (GPF). The bowl sits at 17 inches in height, meeting ADA-compliant comfort height standards for easier sitting and standing. The vacuum-assisted system combines less than one gallon of water with strong suction to leave the bowl clean after each flush. Licensed plumbers and contractors install this bowl as part of a two-piece toilet assembly.

This elongated bowl is suited for residential bathrooms and commercial applications where water conservation is a priority without sacrificing flush performance. The chair-height seat elevation reduces strain when sitting and rising, making it a practical choice for accessibility-conscious installations and aging-in-place projects. The elongated bowl shape provides added comfort over round-front designs and is a common specification in remodel and new construction work. The tank is not included and must be sourced separately.

Key Features

• Vacuum-assisted flush technology delivers powerful bowl clearing at 0.8 GPF
• Chair height at 17 inches for comfort and ADA-style accessibility
• Elongated bowl shape for enhanced user comfort
• Ultra-low water consumption at 0.8 GPF / 3.0 LPF per flush cycle
• Compatible with EcoStrength Aspirations tank (sold separately)

Compatibility

Designed for use with the AMERICAN STANDARD EcoStrength Aspirations tank, sold separately. This bowl is part of the EcoStrength Aspirations two-piece toilet system.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and flush the existing toilet to drain the tank before removing any existing fixture. The bowl must be set on a closet flange with a wax ring seal or approved flange gasket to prevent leaks. The tank is a required separate purchase and must be matched to this bowl before completing installation.

Technical Specifications

• Flush Rate: 0.8 GPF / 3.0 LPF
• Bowl Height: 17 inches
• Bowl Shape: Elongated
• Flush Technology: Vacuum-assisted
• Seat Height Style: Chair Height

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 3407a101020
