American Standard 3043.001 Madera 1.1 – 1.6 gpf Chair Height Top Spud Elongated Bowl

Product Description

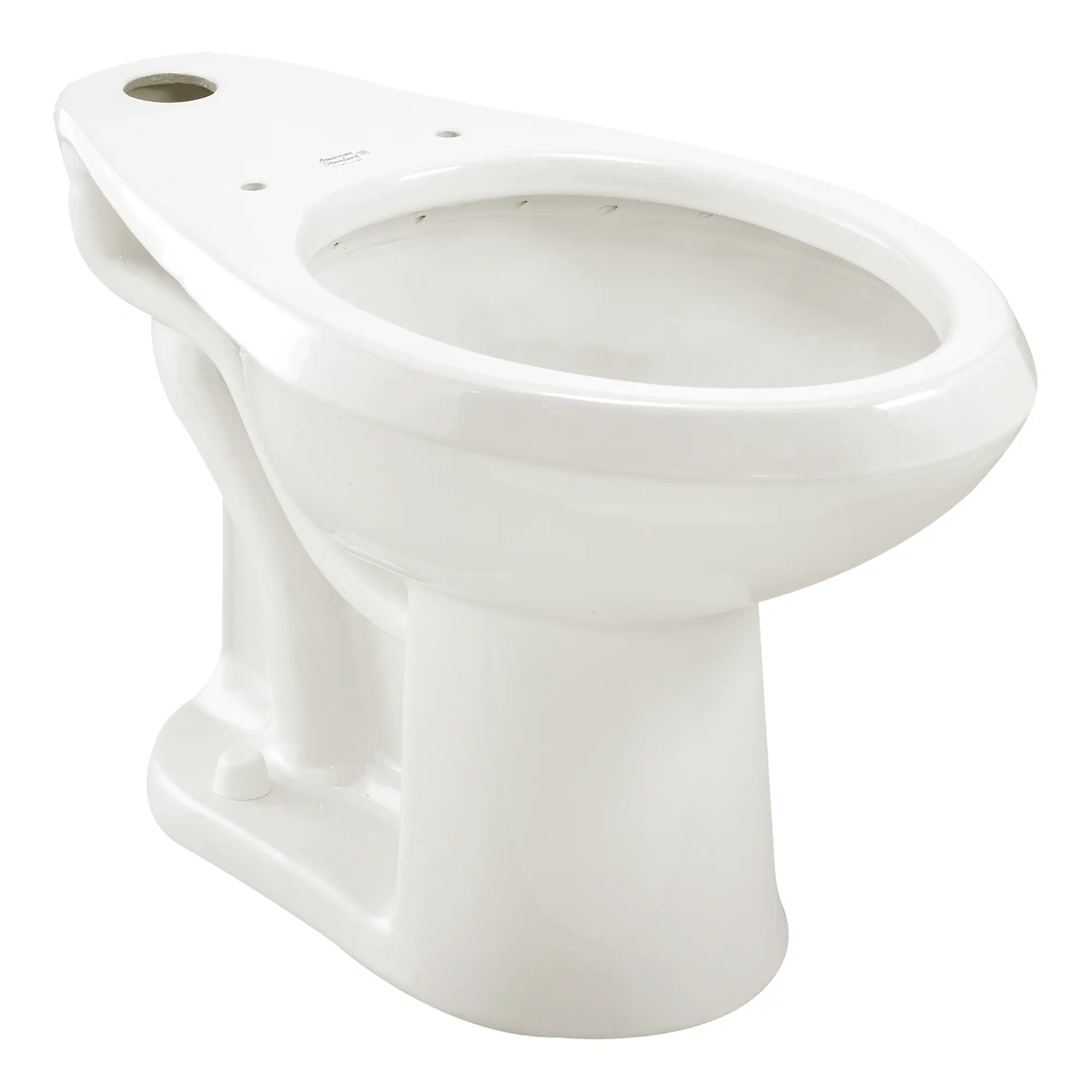

The AMERICAN STANDARD 3043.001 Madera is a floor-mount, elongated flushometer bowl. This High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf. Features a 16-1/2" chair height for accessible applications and a static weight load of 2,500 lbs. Includes a 2-1/8" fully-glazed trapway and a 1-1/2" inlet spud.

• Floor-mount, elongated flushometer bowl, less seat
• High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
• Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf

Product Highlights

The Madera toilet bowl combines efficiency with a robust design, suitable for high-use commercial environments.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 3043.001

Technical Specifications

• Item Shape: Bowl Shape: Elongated
• Toilet Type: Floor_Standing_Toilet_Bowl
• Flush Technology: Flushometer
• Flushing Type: Single Flush
• GPF Maximum: 1.6 gpf
• GPF Minimum: 1.1 gpf
• Toilet Trapway Diameter: 2-1/8 in
• Bidet Spray Type: No
• Everclean: No
• MAP Performance Rating: 1000
• Shape: Oblong
• Trapway Size: 2-1/8 in
• Water Surface Area: 10 x 12 in
• Flush Rate: 1.28 gpf
• Working Pressure: 25 psi
• Color: White
• Material: Vitreous China
• Inlet Spud Size: 1-1/2 in
• Rim Height: 16-1/2 in
• Overall Width: 14 in
• Overall Depth: 28-1/4 in
• Overall Height: 16-1/2 in
• Mounting Type: Floor
• Includes: (2) Bolt Caps
• Brand Name: American Standard
• Model Number: 3043001.02
• Manufacturer: AMMM9
• UPC: 033056830956
• Global Trade Identification Number: 00033056830956
• Manufacturer Part Number: 3043001.020
• Unit Count: 1.0 Count
• Item Type Name: Toilet Bowl with Top Spud
• Included Components: Toilet Bowl with Top Spud
• Seat Material: Wood
• Installation Method: Floor Mounted
