American Standard 3043.001.020 elongated toilet bowl 1.1 to 1.6 GPF 28-1/4 x 14 x 16-1/2 inch 10 inch rough-in

Product Description

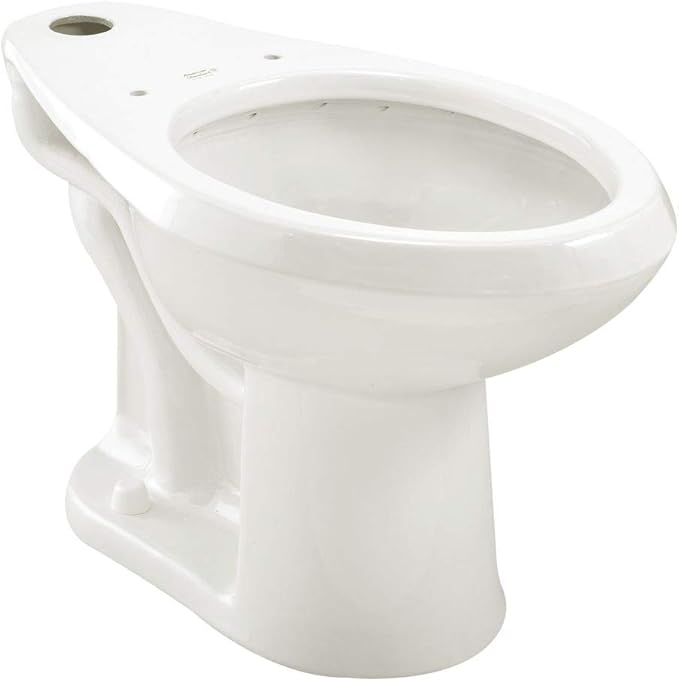

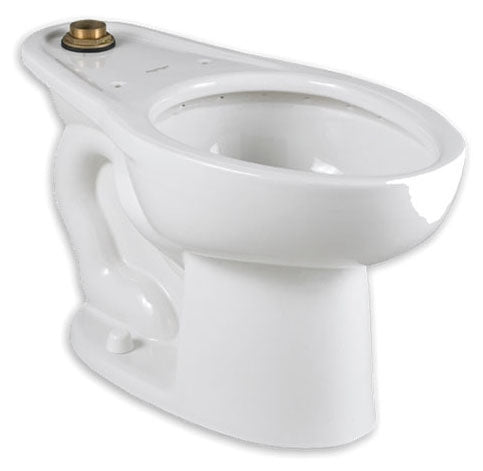

The AMERICAN STANDARD 3043.001.020 is an elongated, floor-mount toilet bowl constructed from durable vitreous china, featuring a 10-inch rough-in. Designed for commercial applications, it operates with a high-efficiency, low-consumption flush ranging from 1.1 to 1.6 gallons per flush (GPF). This ADA compliant toilet bowl includes a fully glazed 2-1/8 inch trapway and powerful direct-fed siphon jet action for effective waste removal.

• High Efficiency, Low Consumption for water savings
• Meets the definition of a High-Efficiency Toilet (HET)
• 100 Percent Factory Flush Tested for reliable performance

Product Highlights

ADA compliant elongated toilet bowl with high-efficiency flushing and durable vitreous china construction.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 3043.001.020

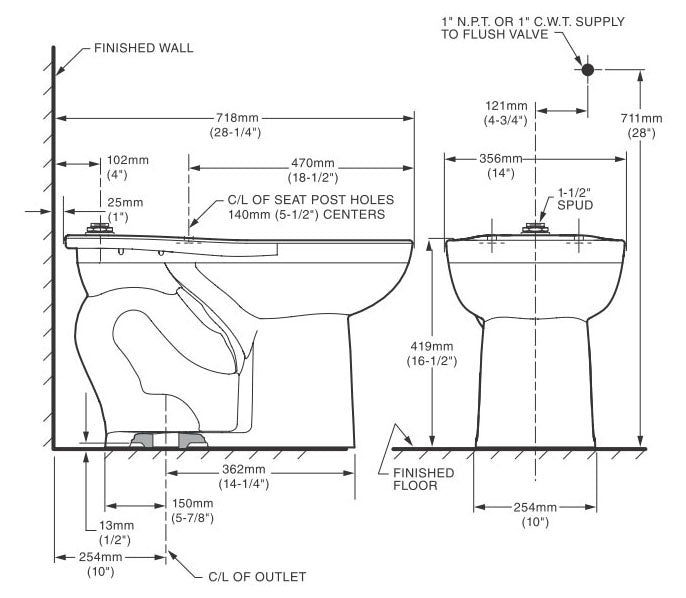

Technical Specifications

• Product Type: Toilet Bowl
• Bowl Type: Elongated
• Bowl Height: 16-1/2 Inch
• Rough-In: 10 Inch
• Inlet Connection: 1-1/2 Inch Top Spud
• Material: Vitreous China
• Color: White
• Gallons Per Flush: 1.1 to 1.6
• Recommended Working Pressure: 25 PSI (Flushing), 80 PSI (Static)
• Mounting Type: Floor Mount
• Outlet Location: Bottom
• Includes: (2) Bolt Cap
• Trapway Size: 2-1/8 Inch
• Used On Item: Elongated Flushometer Toilet
• Model/Collection: FloWise/MADERA
• Exclusions: Seat, Flush Valve
• Applicable Standards: ADA, ASME A112.19.2/CSA B45.1-08
• Overall Length: 28-1/4 Inch
• Overall Width: 14 Inch
• Water Surface Area: 10 Inch x 12 Inch
• Application: Commercial
• Flush Type: Gravity
• NSF Certified: Yes
• WaterSense Labeled: Yes
