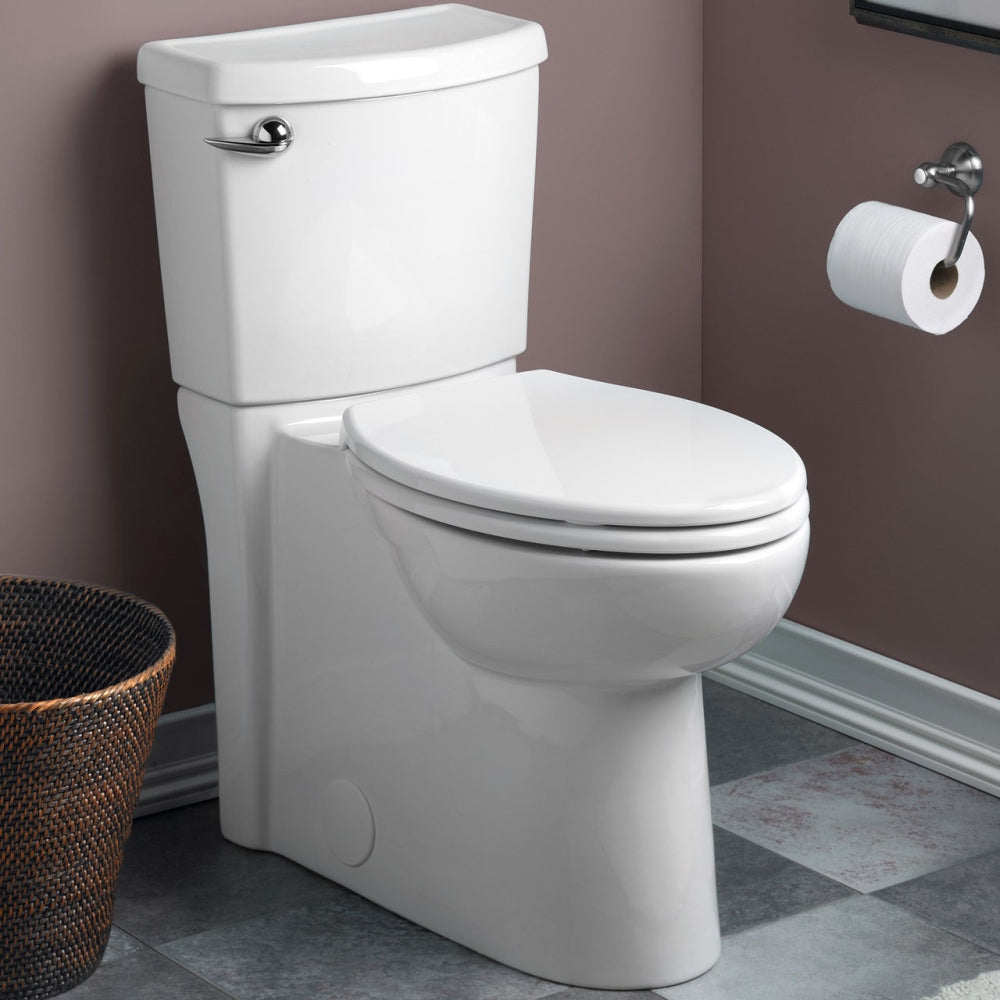

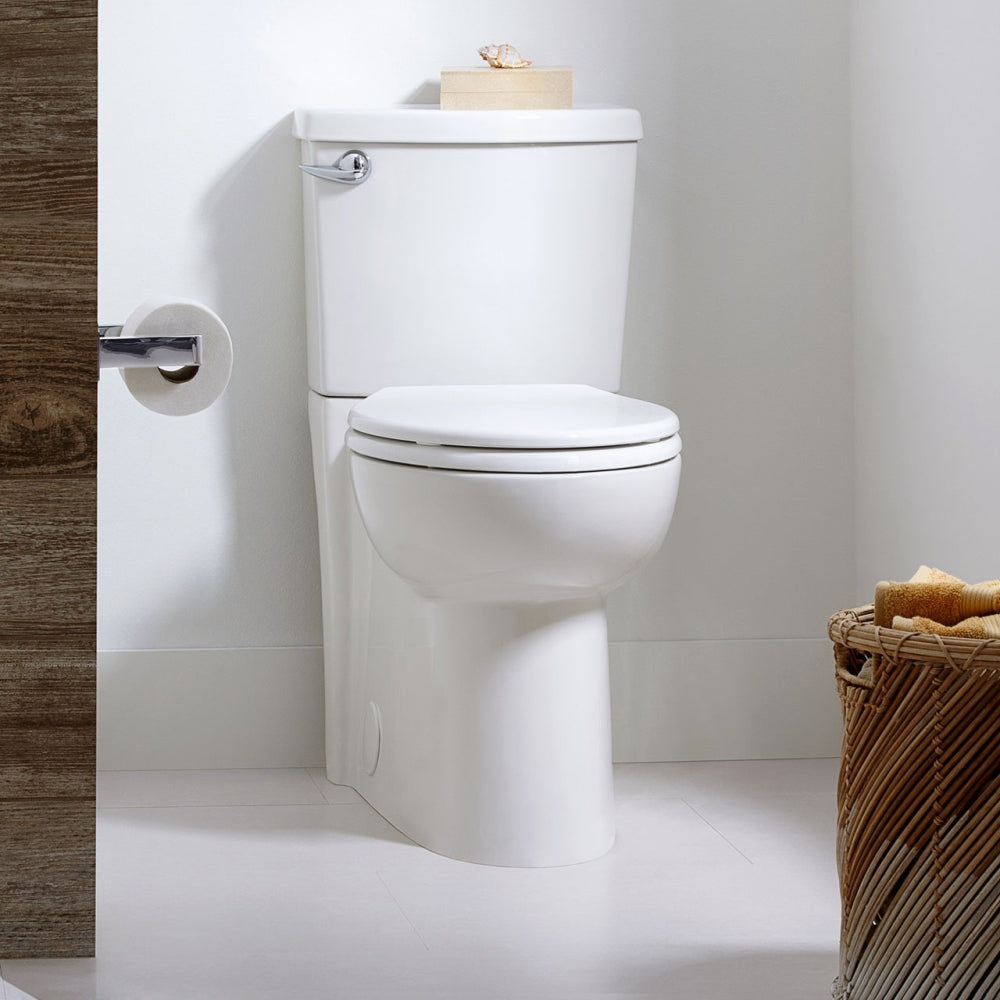

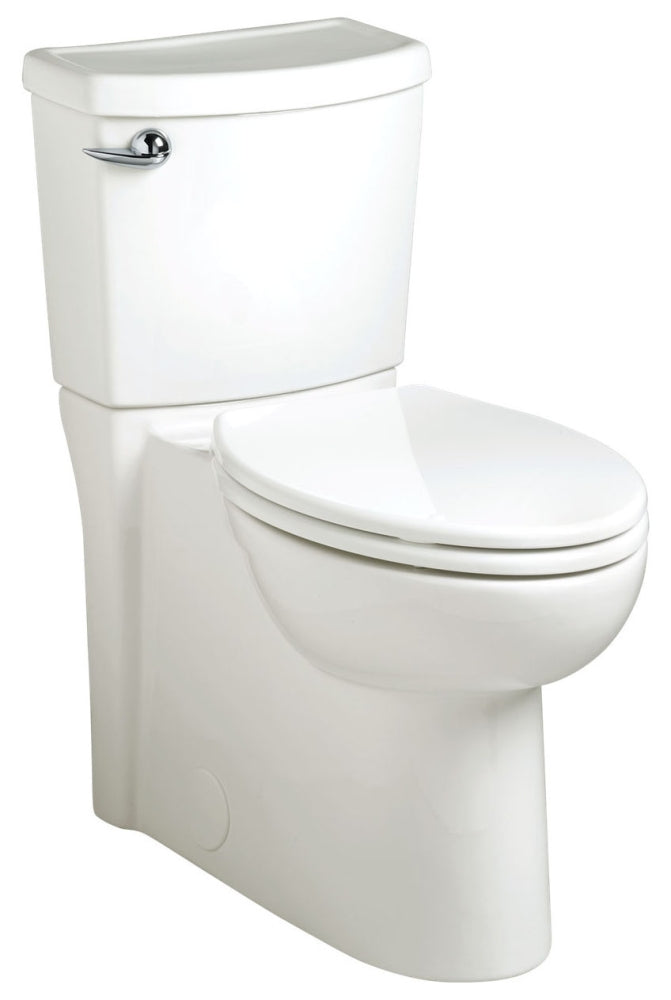

American Standard 2989.101.020 Cadet 3 1.28 GPF Elongated Toilet

Product Description

The American Standard 2989.101.020 Cadet 3 is an elongated two-piece toilet designed with efficiency and comfort in mind. This model uses only 1.28 gallons per flush, making it suitable for eco-friendly installations. The dimensions of this toilet are twenty-nine inches and one-eighth in length, fifteen inches and three-quarters in width, and thirty inches and three-quarters in height. The bowl height is sixteen inches and one-half, meeting criteria for accessibility and comfort. The toilet is made of vitreous china and includes a chrome-plated trip lever.

• High efficiency, using only 1.28 GPF.
• Includes a top-mount slow-close seat for quiet operation.
• Bowl features EverClean surface to inhibit bacteria growth.

Product Highlights

This toilet provides a siphon action jetted bowl, a smooth concealed trapway, and is top-mounted. Its design ensures less water use while maximizing performance, making it compliant with WaterSense standards.

Product Information

Standard Information

• Brand: American Standard
• MPN: 2989.101.020

Technical Specifications

• Toilet Type: 2-Piece, Elongated Bowl
• Bowl Height: 16-1/2 inches
• Rough-In: 12 inches
• Overall Dimensions: 29-1/8 inches (L) x 15-3/4 inches (W) x 30-3/4 inches (H)
• Bowl Material: Vitreous China
• Bowl Color/Finish: White
• Gallons per Flush: 1.28
• Drain Connection: 2-1/8 inches
• Trip Lever: Chrome Plated
• Tank Material: Vitreous China
• Tank Color/Finish: White
• Mounting Type: Floor Mount
• Outlet Location: Rear
• Inclusions: Siphon action jetted bowl, top mount slow close seat, color matched bolt hole covers, EverClean surface
• Exclusions: Supply
• Applicable Standard: ADA, ASME A112, ANSI A117.1, CSA B45, EPA
• Water Surface Area: 9 inches x 8 inches
