Product Description

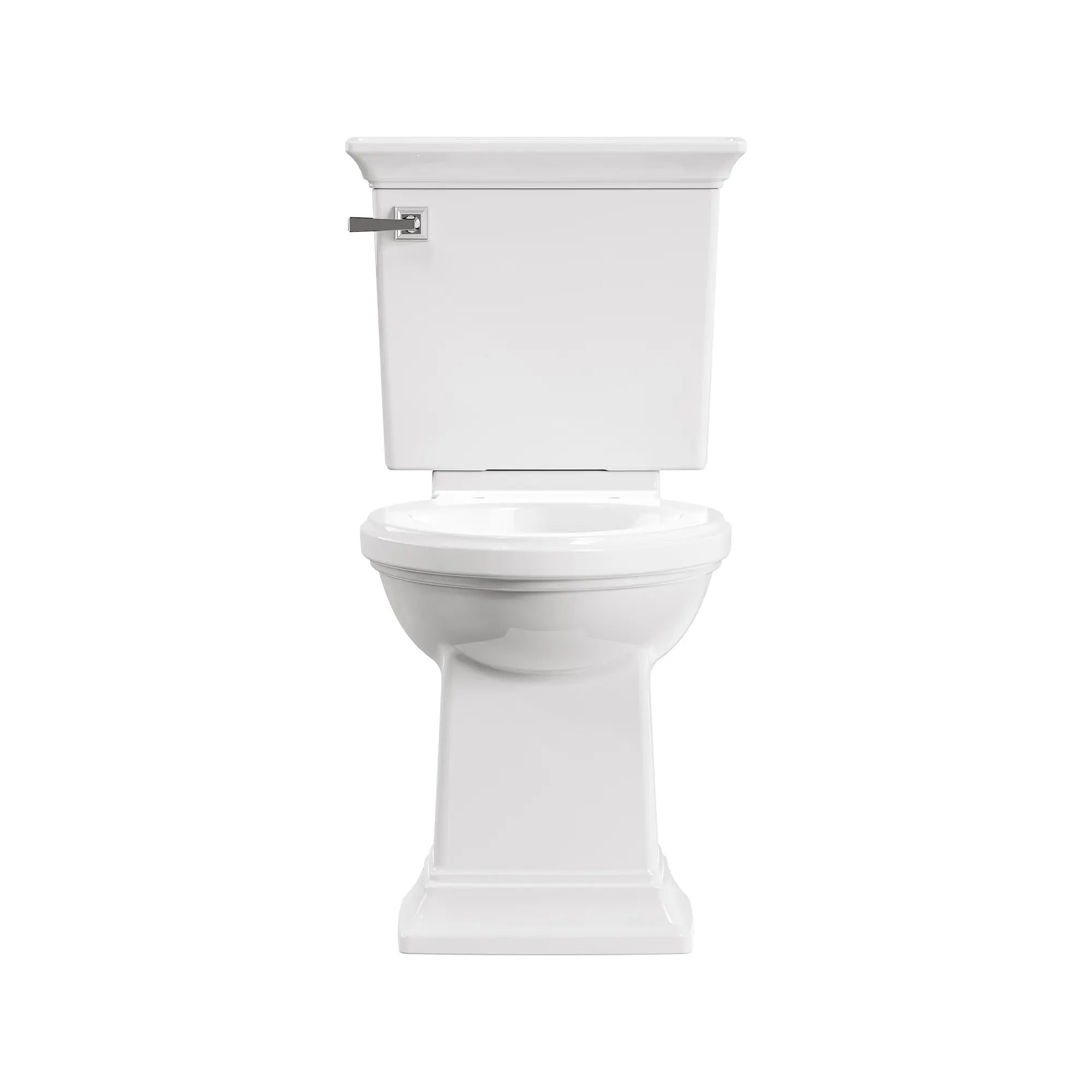

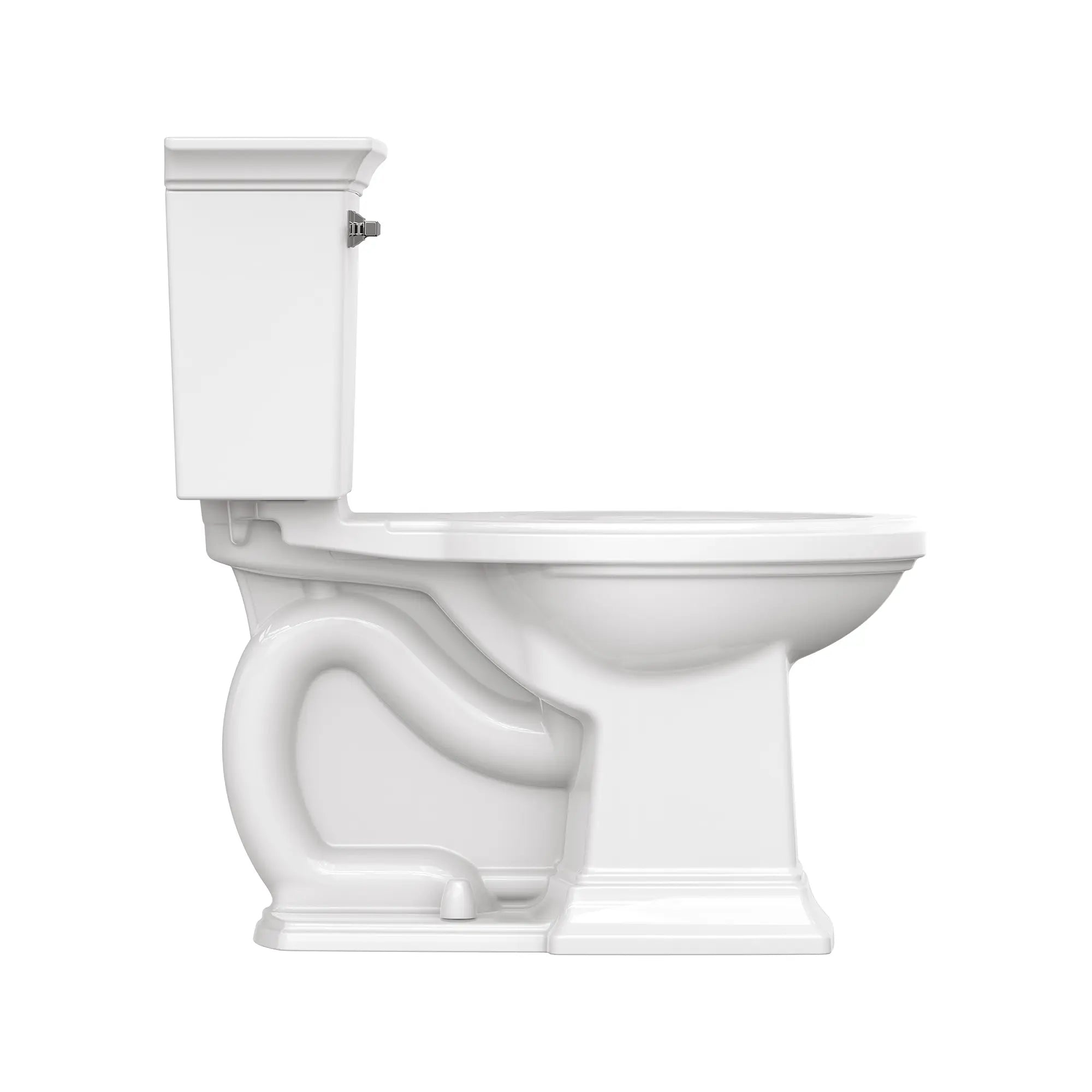

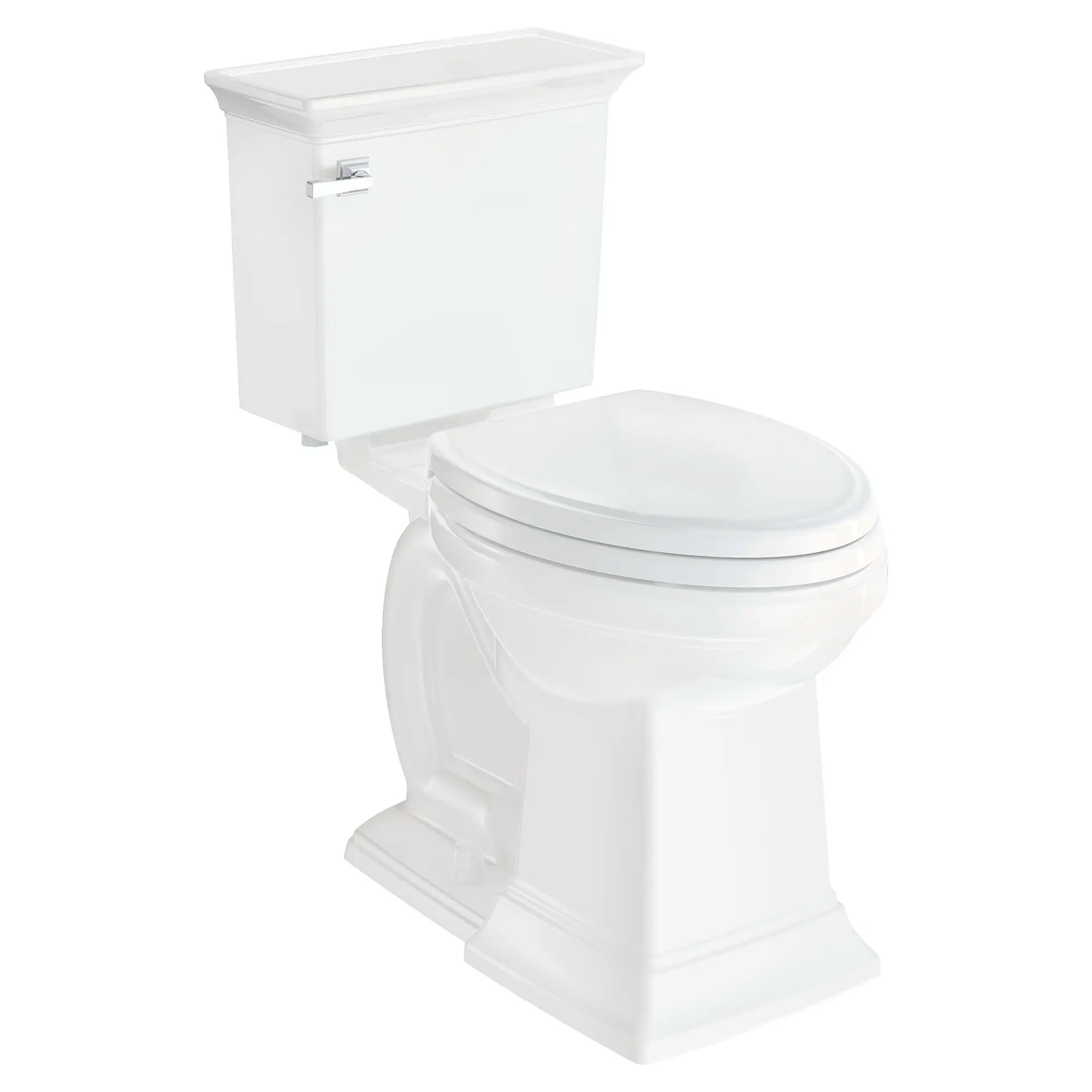

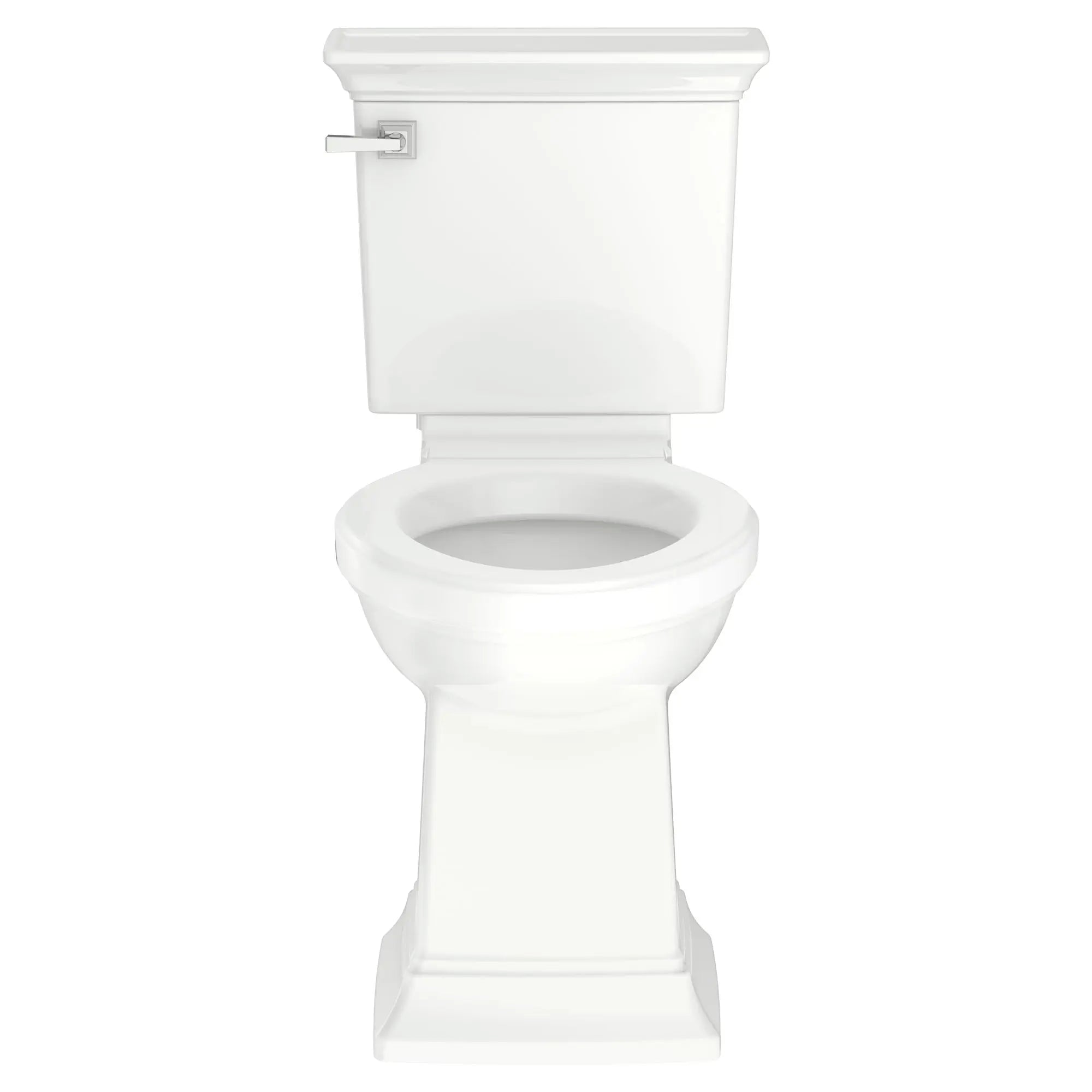

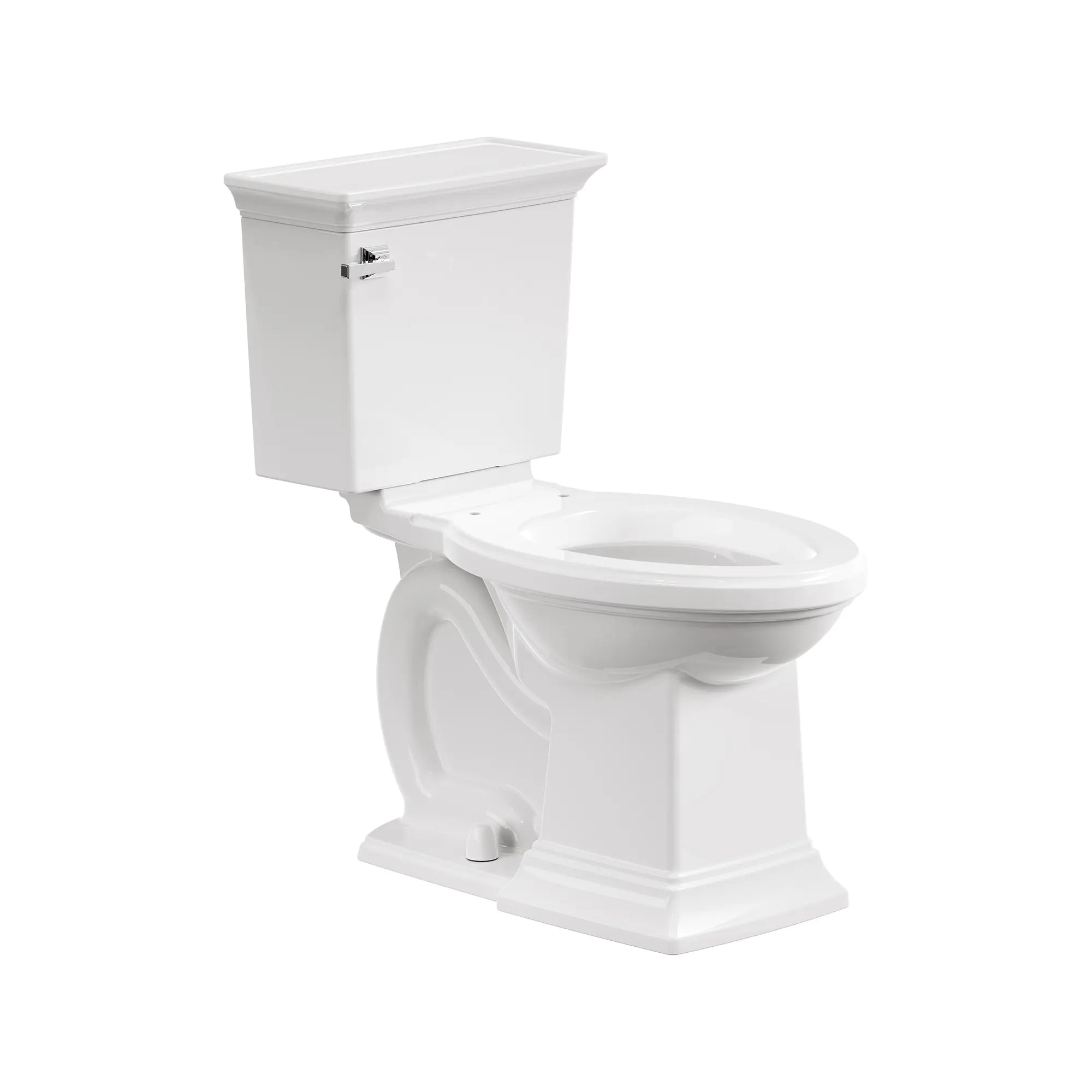

The American Standard 2917228.020 Town Square S Right Height Elongated Toilet introduces a sense of classic architecture. This toilet features elegant details inspired by crown molding and a flow rate of 1.28 gallons per flush (gpf) to save water. The Right Height design provides a taller bowl for a more comfortable experience.
- High efficiency - Full Flush (1.28 gpf/4.8 Lpf)
- Features EverClean antimicrobial surface
- PowerWash rim scrubs bowl with each flush
Product Highlights
This two-piece toilet features a chair-height elongated bowl, a left-hand trip lever tank, and a 1.28 GPF flush rate. It also includes an EverClean surface and a PowerWash rim for a consistently cleaner toilet.
Product Information
Standard Information
-
Brand: AMERICAN STANDARD
-
Manufacturer Part Number: 2917228.020
-
Country of Origin: China
Technical Specifications
-
Width: 16.625 in.
-
Height: 31 in.
-
Length: 29-3/4"
-
Seat Type: Less Seat
-
WaterSense: Yes
-
Finish Color: White Shades
-
Finish Name: White
-
Toilet Height: Chair Height
-
RoughIn Dimension: 12"
-
Toilet Bowl Shape: Elongated
-
TripLever Position: Left Hand Trip Lever
-
Commercial or Residential: Primarily Residential
-
Depth: 28-3/4"
-
Includes: No Seat
-
Material: Vitreous China
-
Mounting: Floor Mounted
-
Rough-In: 12 in
-
Standards: ASME A112.19.2/CSA B45.1-08; ANSI A117.1; ADA; EPA Water Sense CAL Green; CEC
-
Bowl Shape: Elongated
-
Collection: Town Square
-
Bowl Height: 16-1/2" (floor to the top of the bowl)
-
Trapway Diameter: 2.125 in
-
ADA Compliant: Yes
-
Mounting Style: Floor
-
Flushing Method: Siphon Jet
-
Gallons per Flush: 1.28
-
Green Environmental Attribute: EPA Water Sense
-
Bowl Dimensions: 18-1/2 in L x 14 in W x 16-1/2 in H
-
Flushing Type: Single Flush
-
GPF Maximum: 1.28 gpf
-
Tank Included: Yes
-
Toilet Bowl Height with Seat: 17 in
-
Insulated Toilet Tank: No
-
Toilet Seat Included: No
-
Toilet Trapway Diameter: 2-1/8 in
-
Everclean: Yes
-
Product Dimensions: 29.75"D x 15.63"W x 31"H
-
Brand: American Standard
-
Item model number: 2917228.020
-
Style: Classic
-
Finish: white
-
Item Package Quantity: 1
-
Water Consumption: 1.28 Gallons per Flush
-
Included Components: Installation Guide, Toilet Bowl, Toilet Tank
-
Batteries Required?: No
-
Overall Height: 31" (bottom of the base to the highest point on the toilet)
-
Overall Depth: 29-3/4" (furthest point back to front of toilet)
-
Overall Width: 16-5/8" (furthest point left to furthest point on the right)
-
Flow Rate: 1.28 gallons-per-flush
-
Trapway (Discharge Passageway): 2-1/8"
-
Configuration: Two Piece
-
Trapway: 2.125 in.
-
Product Type: Floor Mount Two Piece Toilet
-
Flush Rate: 1.28 gal/flush
-
Energy Efficient: Yes
-
Dimensions: 29-3/4 in L x 16-5/8 in W x 31 in H
-
Domestic/Import: Import
-
Flush Valve Size: 3 in
-
Flush Technology: Gravity Fed
