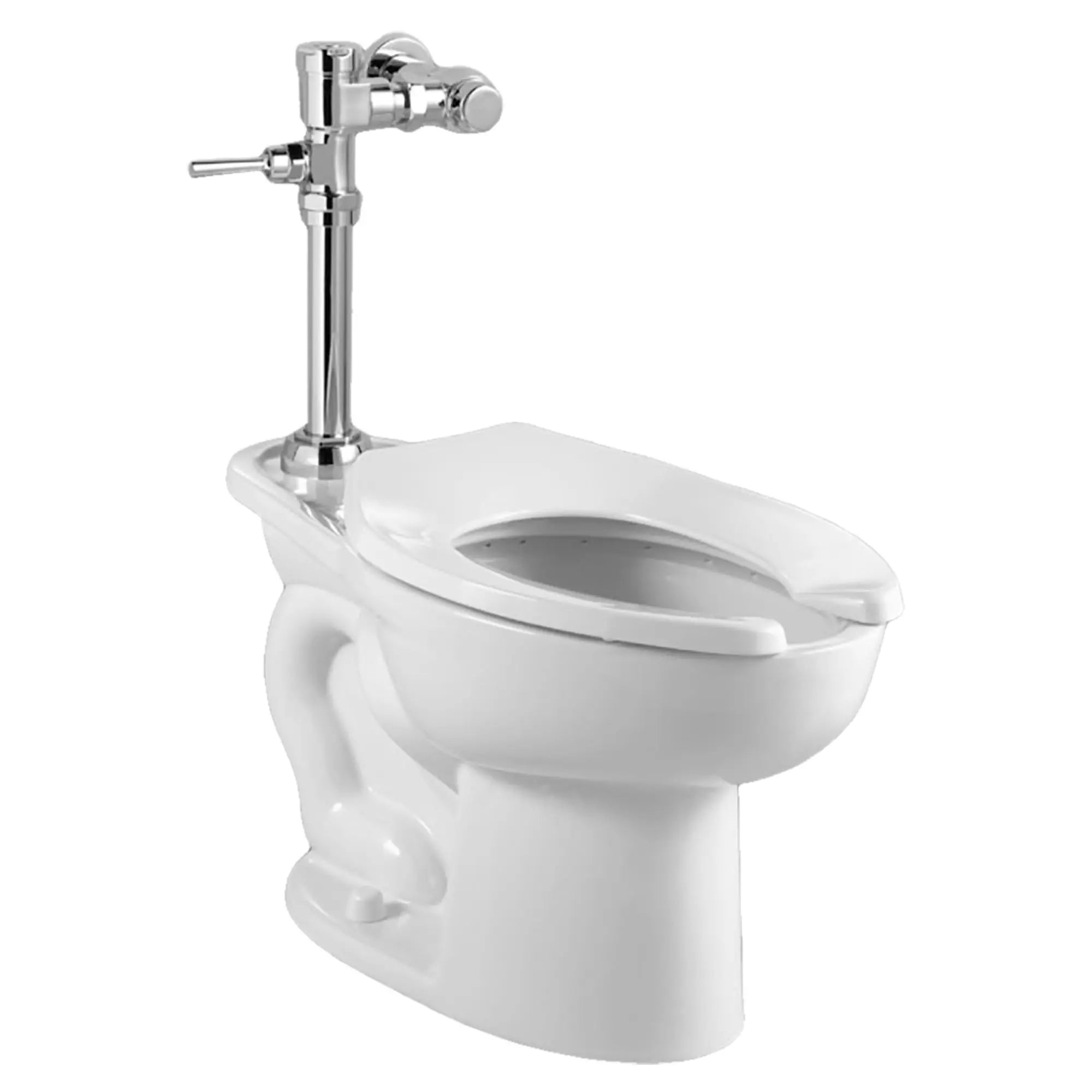

American Standard 2857.111.020 Madera Chair Height Toilet System With Manual Piston Flush Valve 1.1 gpf

Product Description

The American Standard 2857.111.020 Madera chair height toilet system features a dependable manual piston flush valve. Designed for durability, it operates at a flow rate of 1.1 gallons per flush and provides efficient flushing. The elongated floor mount design has a rim height of sixteen and a half inches, promoting accessibility for various users.

• Supports a static weight load of two thousand five hundred pounds
• Includes DynaClean self-cleaning wiper spring technology
• ADA compliant design for enhanced accessibility

Product Highlights

This toilet system combines effective performance with user-friendly features for enhanced bathroom experiences.

Product Information

Standard Information

• Model Number: 2857.111.020
• Product Type: High Efficiency Manual Flush Valve

Technical Specifications

• Fitting Connection Size: 1 inch
• Fitting Material: Brass
• Flow Rate: 1.1 GPF
• Flush Valve Size: 2 inches
• Warranty: 5 Year Limited Warranty
• Bowl Shape: Elongated
• Flush Rate: 1.1 GPF
• Rough-in: 10 or 12 inches
• Material: Vitreous China
• Mounting: Floor Mount
• Trapway: Fully Glazed 2-1/8 inches Trapway
• Water Surface Area: 10x12 inches
• Flush Type: Siphon Action Jetted
• Length: 28-1/4 inches
• Width: 14 inches
• Bowl Height: 16-1/2 inches
• Color Family: White
• Collection: Madera FloWise
• Valve Included: No
• Flushometer Valve Included: Yes
• Gallons Per Flush: 1.1 gallons
• Seat Included: No
• Bolt Caps Included: Yes
• Trip Lever Placement: Left
• Trapway Design: Exposed
• Mounting / Installation Required: Yes
• Additional Parts Required (Not Included): Yes
