American Standard 2855.111.020 Madera Fv Sys 1.1 GPF

Product Description

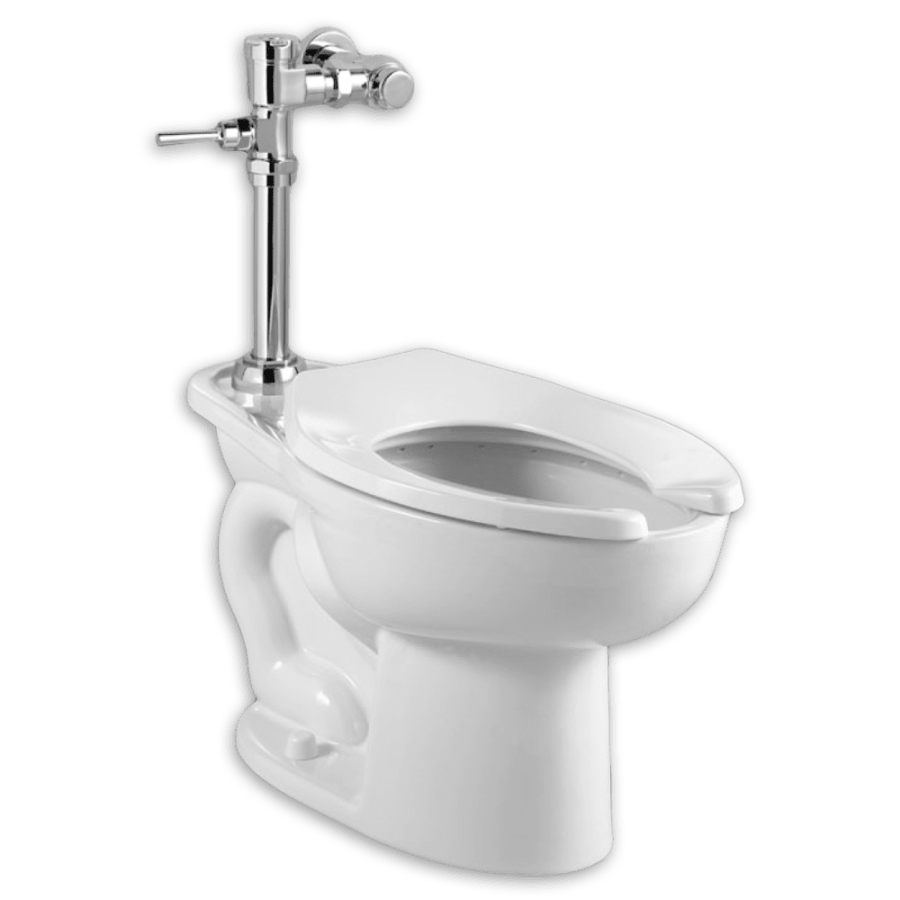

The AMERICAN STANDARD 2855.111.020 Madera toilet system is designed for commercial and accessible applications. This elongated, floor-mounted flushometer bowl delivers performance while maintaining efficiency at 1.1 GPF. It features a 15" rim height and is enhanced with a Permanent EverClean surface to help inhibit the growth of stain- and odor-causing bacteria.

• High-Performance Flushing: Achieves a maximum 1,000-gram MaP score, ensuring effective waste removal with every flush.
• Enhanced Hygiene: The Permanent EverClean surface actively resists the growth of stain- and odor-causing bacteria, mold, and mildew.
• ADA-Compliant Comfort: Features a 16-1/2" rim height, meeting ADA accessibility requirements.

Product Highlights

This Madera toilet system combines durability, hygiene, and high-performance flushing, making it ideal for high-traffic commercial restrooms.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 2855.111.020
• Country of Origin: United States

Technical Specifications

• Gallons per Flush: 1.1
• Material: Vitreous China
• Standards: ASME A112.19.2-2008/CSA B45.1-08; CALGreen
• Bowl Shape: Elongated
• Mounting Style: Floor
• Manufacturer: American Standard
• Product: Toilet
• Product Collection: Madera
• Height: 15"
• Rough-In: 10" Rough-In
• Flush Lever Placement: Left
• Room: Bathroom
• Overall Height: 28-1/2"
• Overall Length: 28-1/4"
• Overall Width: 14"
• Bowl Height: 15"
• Trapway Size: 2-1/8"
• Flow Rate: 1.1 GPF
• Water Area: 10" X 12"
• Spud Placement: Top
• Brand: American Standard
• MPN: 2855.111.020
• UPC: 791556038264
• Collection: Madera
• Finish: White
• Finish Group: White
• Country: Mexico
• Man Finish Name: White
• Line: Chinaware
• Oversized: Yes
• Watersense: WS
• Flush Rate: 1.1
• Fitting Connection Size: 1 in
• Fitting Material: Brass
• Flush Valve Size: 2 in
• Depth [Specifications]: 28-1/4"
• Width [Specifications]: 14"
• Includes [Specifications]: 047007-0070A Inlet Spud; 481310-100 2 Bolt Caps; Retainers; 1" I.P.S. Angle Stop; Vandal Resistant Cap; Sweat Solder Kit; Cover Tube; Wall Flange; High Back Pressure Vacuum Breaker; Down Tube; Spud Coupling; Flange
