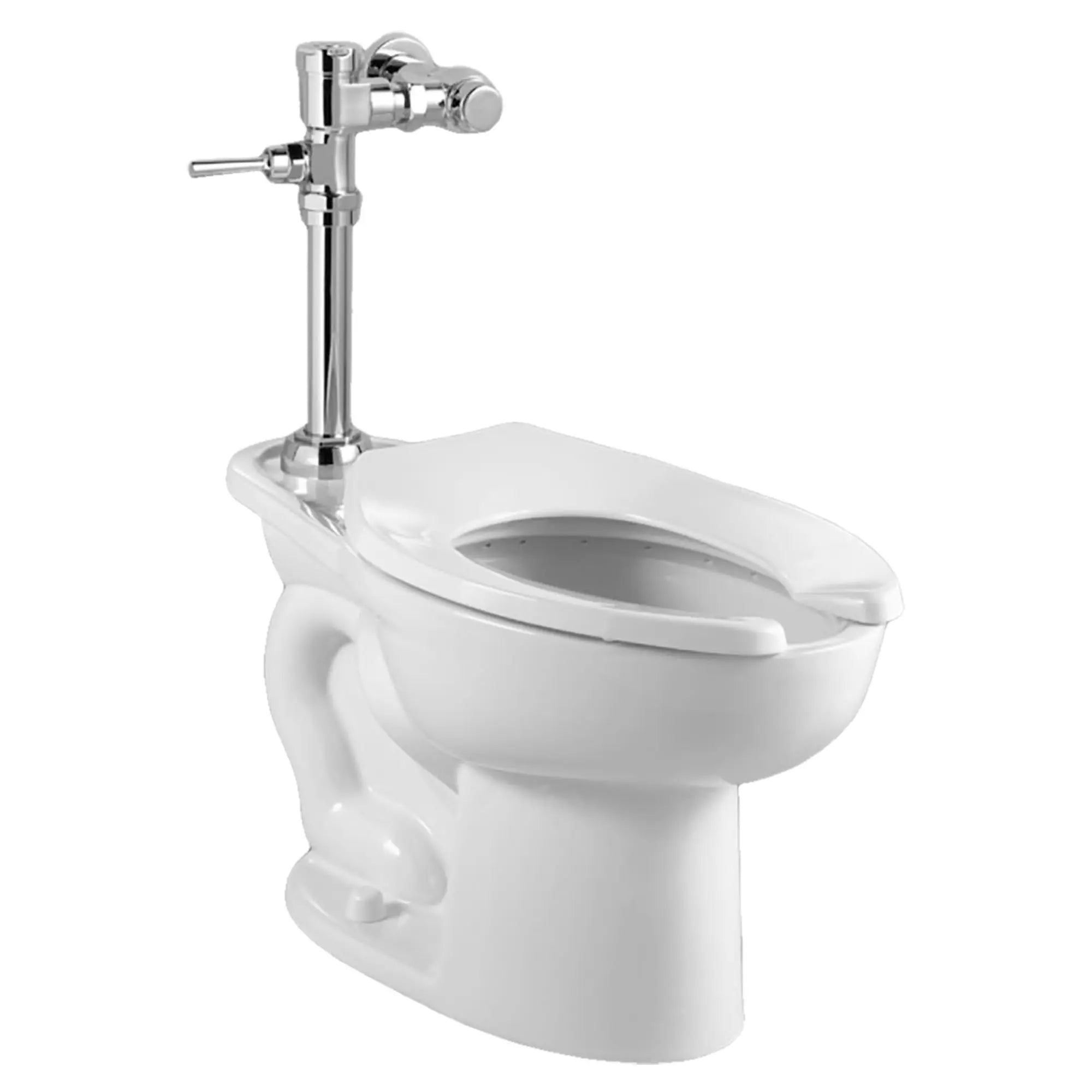

American Standard 2854.111.020 Madera Chair Height EverClean Toilet System With Manual Piston Flush Valve, 1.1 gpf/4.2 Lpf

Product Description

The American Standard 2854.111.020 Madera chair height toilet system features a manual piston flush valve and EverClean surface. Designed for commercial and accessible applications, this elongated, floor-mounted flushometer bowl delivers powerful performance. It withstands a static weight load of up to 2,500 lbs and meets ADA accessibility requirements with a 16-1/2" rim height.

• Features a manual piston-operated flush valve with DynaClean self-cleaning wiper spring technology.
• The EverClean surface inhibits the growth of stain- and odor-causing bacteria, mold, and mildew.
• Meets ADA requirements with a 16-1/2" rim height for greater comfort and accessibility.

Product Highlights

This American Standard Madera toilet system combines durability, hygiene, and water-conserving efficiency for commercial restrooms.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 2854.111.020
• Country of Origin: Mexico

Technical Specifications

• Fitting Connection Size: 1 in
• Fitting Material: Brass
• Flow Rate: 1.1 GPF
• Flush Valve Size: 2 in
• Overall Height: 30" (bottom of the base to the highest point on toilet)
• Overall Length: 28-1/4" (back of the fixture to front of the rim)
• Overall Width: 14" (furthest point left to furthest point right)
• Bowl Height: 16-1/2" (bottom of base to bowl rim)
• Rough In: 10" - 12" (wall behind toilet to center of waste outlet in floor)
• Trapway Size: 2-1/8" (diameter of outlet for water/waste exiting the bowl)
• Water Area: 10" X 12"
• Spud Placement: Top
• Brand: American Standard
• MPN: 2854.111.020
• UPC: 791556038257
• Manufacturer: American Standard
• Product: Toilet
• Product Collection: Madera
• Height: 16-1/2"
• Shape: Elongated
• Type: One Piece Toilet
• Mount Type: Floor Mount
• Flush Lever Placement: Left
• Room: Bathroom
• Mpn #: 2854.111.020
• Brand Name: American Standard
• Brand Code: ASB
• SKU: 2854111.020
• Alt SKU: 2854.111.020
• Model: Asb-2854111
• Category: Commercial
• Mcategory: Toilet
• Msubcategory: TOILET AND FV SYSTEMS
• Collection: Madera
• Price Group: Non Luxury
• Finish: White
• Finish Group: White
• Country: Mexico
• UOM: Each
• Man Finish Name: White
• Line: Chinaware
• Oversized: Yes
• Watersense: WS
• Flush Rate: 1.1
• ADA Compliant: Yes
• Commercial or Residential: Primarily Commercial
• Finish Name: White
• Gallons per Flush: 1.1 gpf
• Rough-In Dimension: 10" or 12"
• Toilet Bowl Shape: Elongated
• Toilet Height: Chair Height
• WaterSense: Yes
