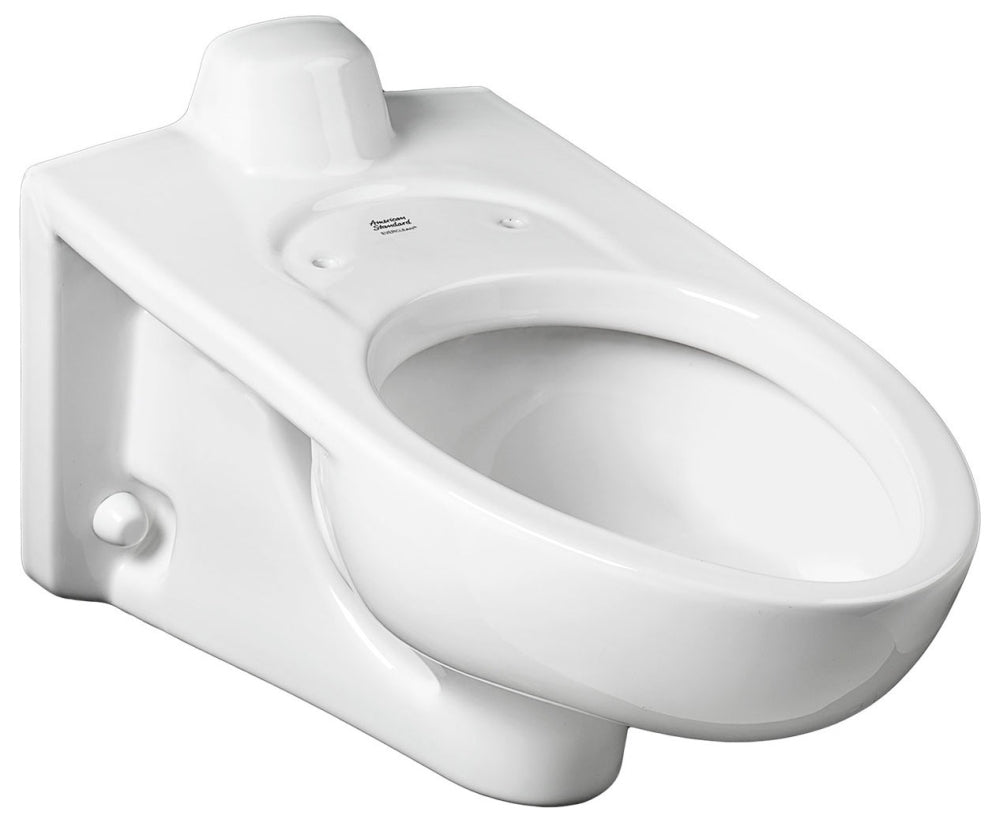

American Standard 2634.101.020 Toilet Bowl 1.1 to 1.6 GPF

Product Description

The American Standard 2634.101.020 is an elongated toilet bowl designed for high-efficiency performance. It operates with a flush rate of 1.1 to 1.6 gallons per flush, making it suitable for commercial applications. This wall-mounted model is made of vitreous china and features a fully glazed trapway, ensuring smooth flushing and waste removal.

• Height: 15 inches
• Inlet Connection: 1-1/2 inches
• Water surface area: 10 inches by 12 inches

Product Highlights

This toilet bowl meets ADA standards and is designed to work with 1.6 GPF flushometer systems, ensuring compliance with modern standards for efficiency.

Product Information

Standard Information

• Brand: American Standard
• MPN: 2634.101.020

Technical Specifications

• Bowl Height: 15 inches
• Material: Vitreous China
• Gallons per Flush: 1.1 to 1.6 GPF
• Recommended Working Pressure: 25 PSI (Flush), 80 PSI (Static)
• Mounting Type: Wall Mount
• Outlet Location: Rear
• Inclusions/Features: Fully Glazed Trapway, Siphon Jet Action
• Applicable Standard: ADA, ASME A112.19.2, CSA B45.1, ANSI A117.1, UL, CEC, EPA
• Size: 26 inches length by 14 inches width
