Product Description

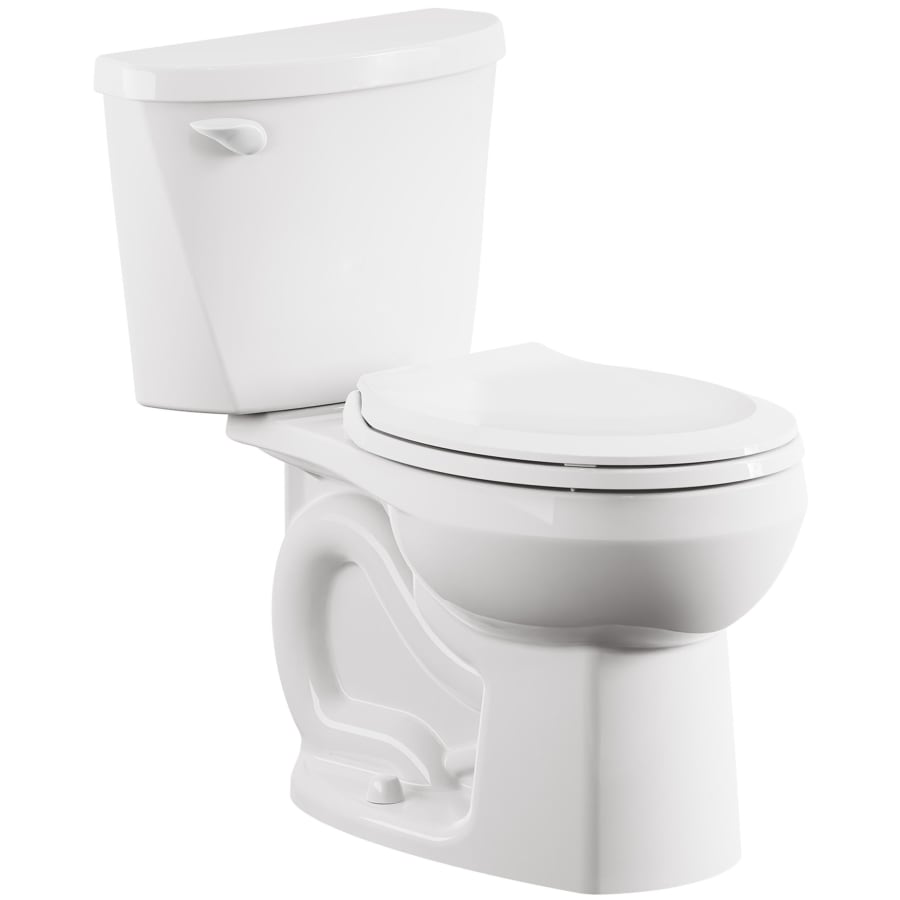

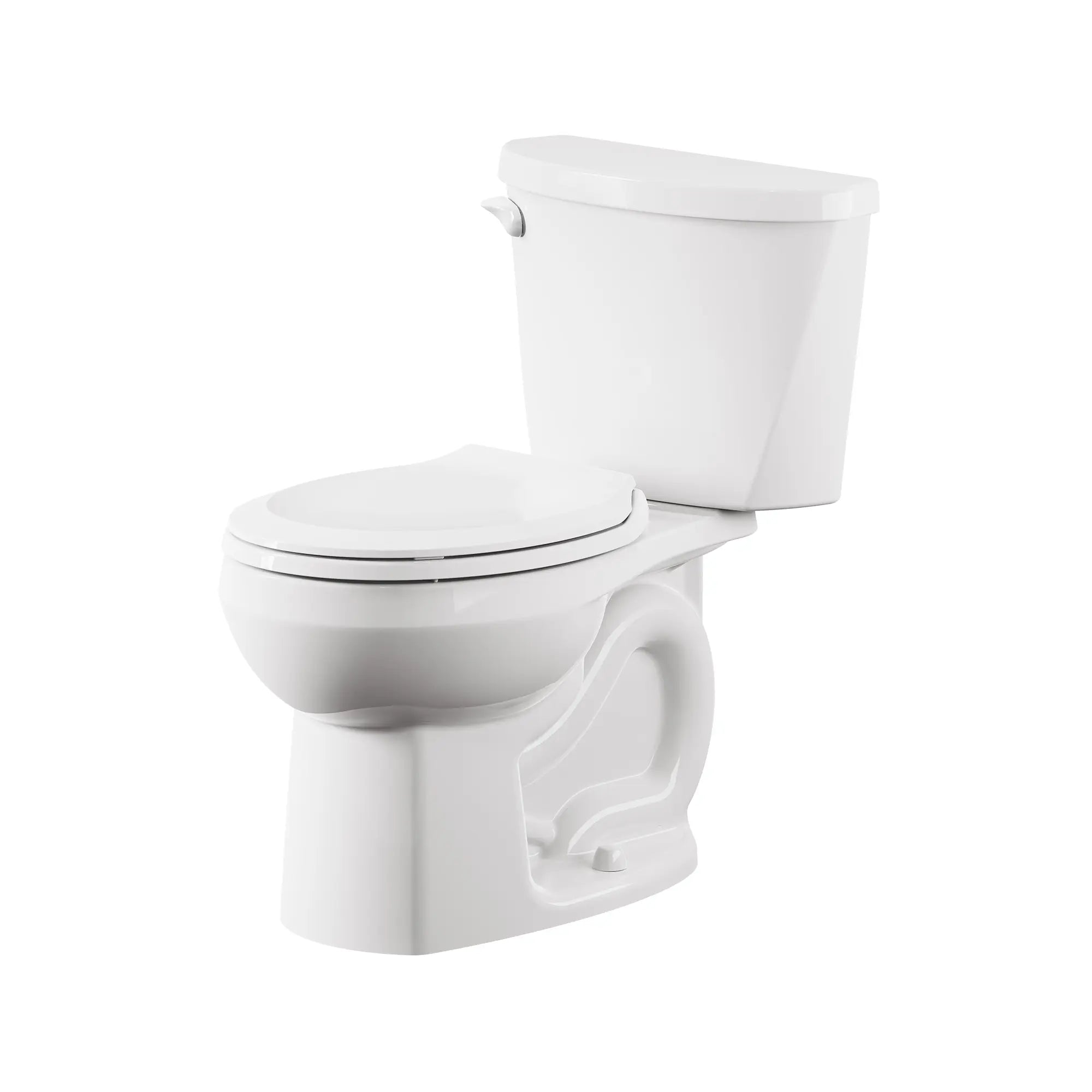

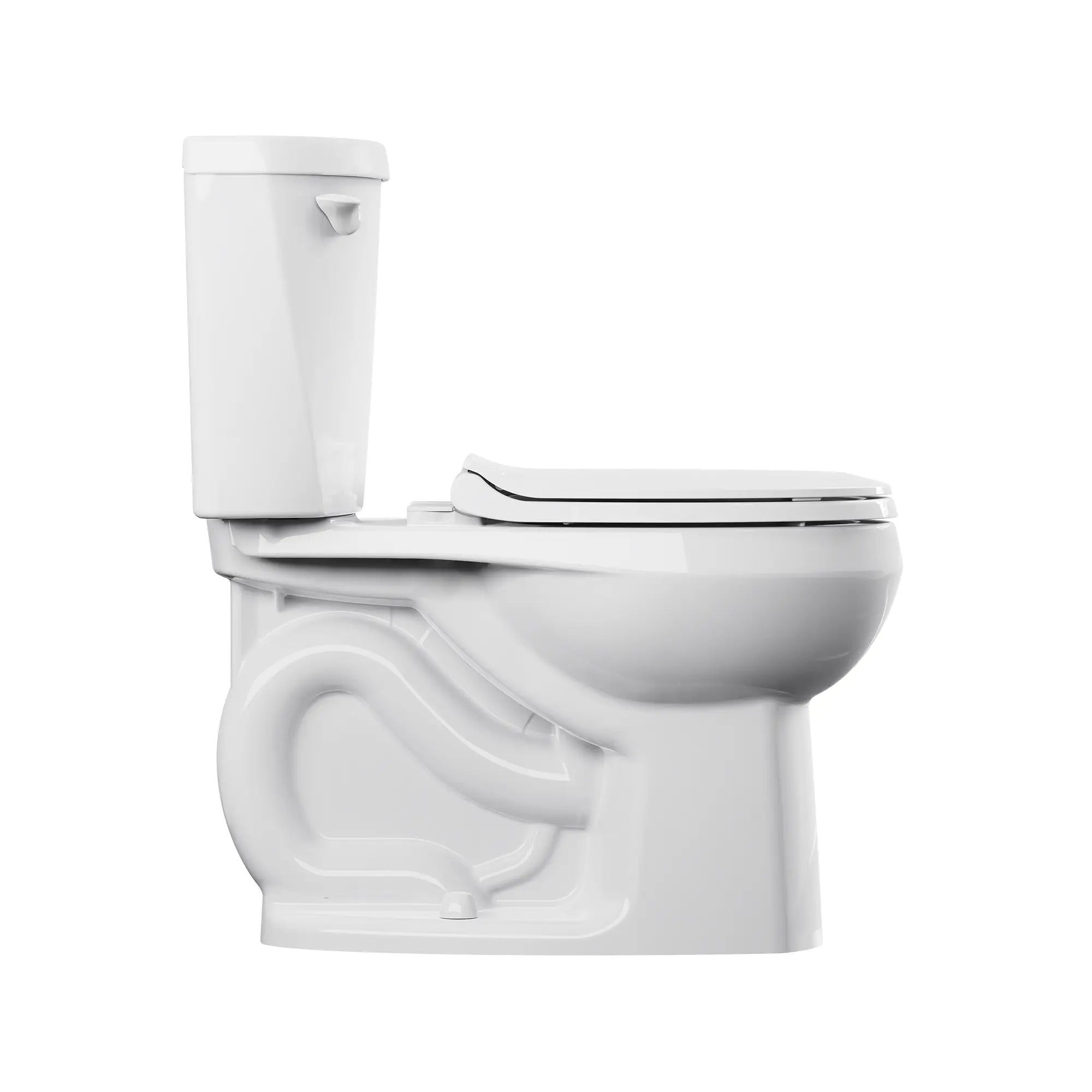

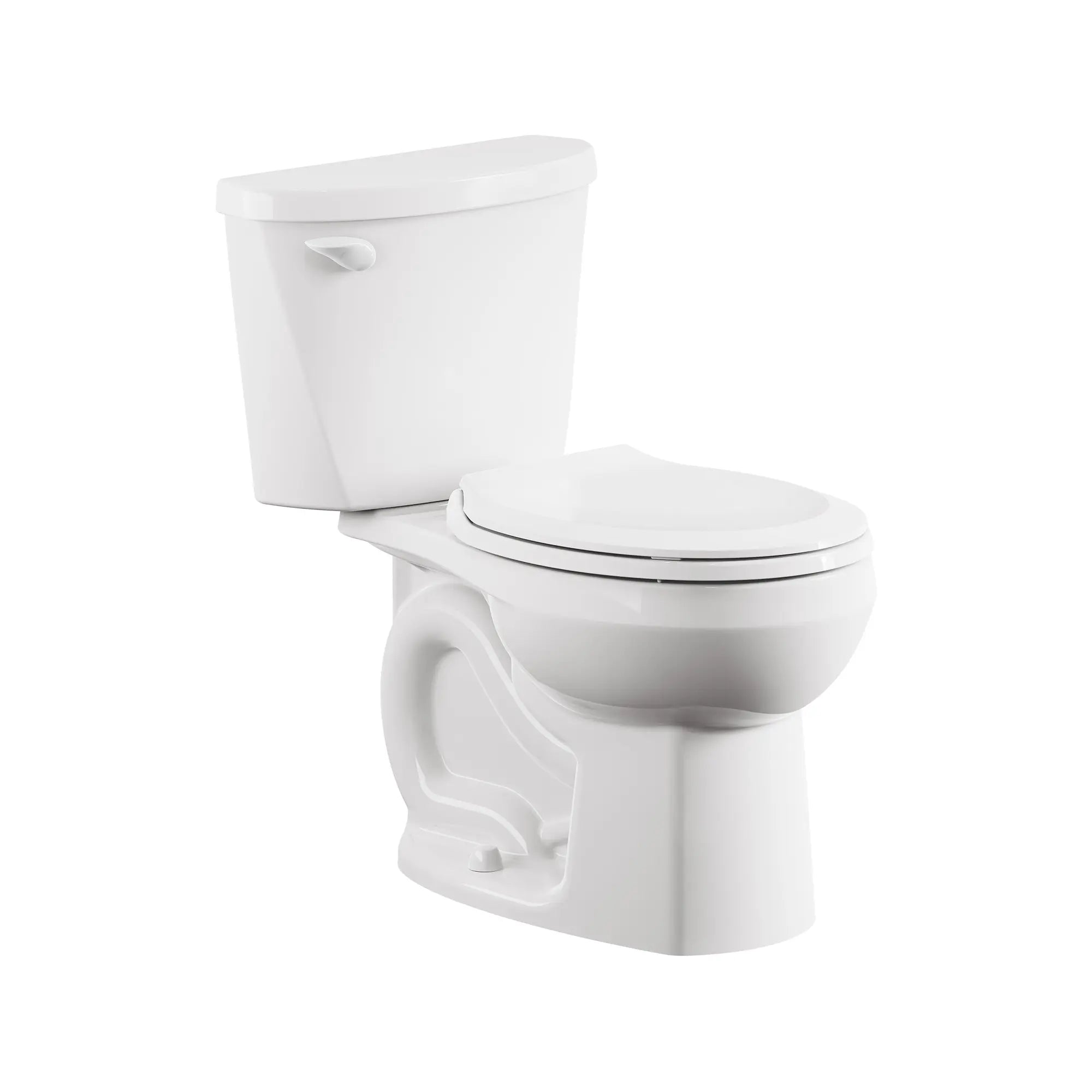

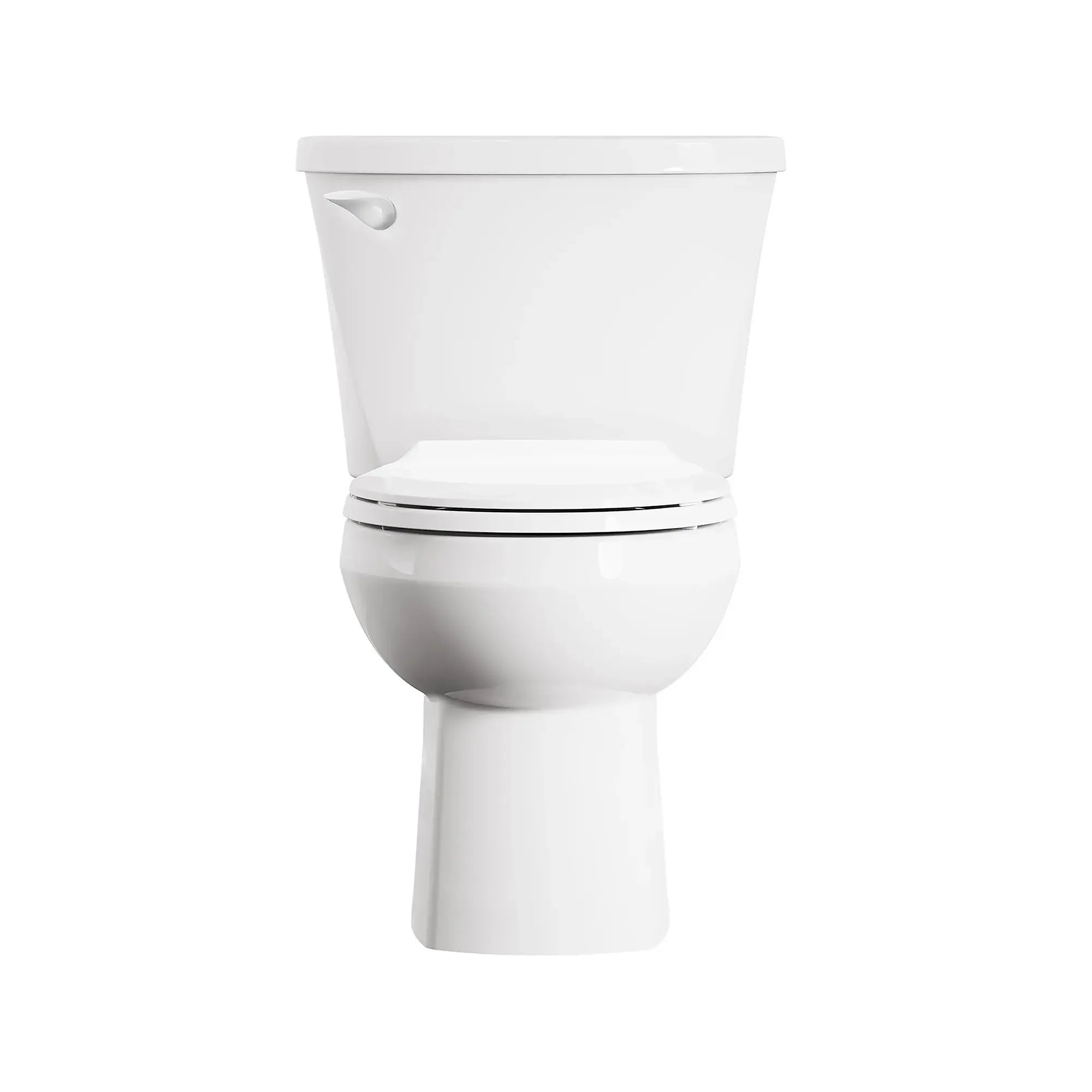

The American Standard 250DB104.020 Colony 3 Round-Front Toilet provides power, efficiency and style for bathrooms where space is limited. This high-efficiency round-front toilet uses 20% less water than standard toilets. The two-piece configuration allows for easier access to the area around the toilet. It features a color-matched trip lever.
- High Efficiency Toilet (HET) ultra-low consumption saves water
- Round-front design fits perfectly in smaller spaces
- Equipped with a 3-in. flush valve and 2-in. trapway to deliver the force and clearance needed to clear the bowl efficiently
Product Highlights
The Colony 3 toilet is a powerful and efficient WaterSense certified toilet with a 10-inch rough-in, ideal for smaller bathrooms.
Product Information
Standard Information
-
Brand: AMERICAN STANDARD
-
Manufacturer Part Number: 250DB104.020
-
Country of Origin: Mexico
Technical Specifications
-
Flush Technology: Gravity Fed
-
Flushing Type: Single Flush
-
GPF Maximum: 1.28 gpf
-
Tank Included: Yes
-
Insulated Toilet Tank: No
-
Toilet Seat Included: No
-
Toilet Type: Two Piece
-
Bidet Spray Type: No
-
Everclean: No
-
Number of Toilet Flush Valves: 1
-
Number of Trapways: 1
-
Bowl Shape: Round
-
Rough-In: 10-in.
-
Bowl Height: 15" (floor to the top of the bowl)
-
Gallons Per Flush: 1.28 GPF (4.8 Lpf)
-
Features: WaterSense
-
ADA Compliant: No
-
Material: China
-
Overall Height: 28-7/16" (bottom of the base to the highest point on the toilet)
-
Overall Depth: 25-13/16" (furthest point back to front of toilet)
-
Overall Width: 18-11/16" (furthest point left to furthest point right)
-
Flow Rate: 1.28 gallons-per-flush
-
Trapway (Discharge Passageway) Size: 2"
-
Distance Between Toilet Seat Installation Holes: 5-1/2"
-
Configuration: Two Piece
-
Design Features: Glazed Trapway
-
Flush Type: Gravity Flush
-
Installation Type: Floor Mounted
-
Vitreous China: Vitreous China
-
Theme: Transitional
-
Trip Lever Placement: Left
-
Water Efficient: Yes
-
ASME Code: A112.19.2
-
CA Drought Compliant: Yes
-
Certifications: ASME, CSA
-
Collection: Colony 3
-
CSA Code: B45.1
-
TX Drought Compliant: Yes
-
WaterSense Certified: Yes
-
Flush Valve Size: 3 in.
-
Height: 28.44 in.
-
Hinge Center to Center: 5.5 in.
-
Trapway: 2 in.
-
Width: 18.6875 in.
-
Depth: 25.81 in.
-
Rough In: 10 in
-
Bowl Height Range: 15-16 in
-
CEC Compliant: For Sale in CA
-
CSA Certified: CSA B45.1
-
Color Finish Category: Whites
-
Color Finish Name: White
-
Dual Flush: No
-
Flow Rate Range: 1.0 - 1.28 gpf
-
Handle Type: Lever
-
Toilet Bowl Height: 15 in
-
Toilet Bowl Length: 25-13/16 in
-
Toilet Bowl Width: 14-1/16 in
-
Toilet Installation: Floor Mount
-
Toilet Rough-In: 10 in
-
Trap Size: 2 in
-
Trip Lever Location: Left-Hand
-
Product Type: Rough Toilet
-
Product Group: Washroom/Bath
-
Product Subgroup: Toilet
-
Family: COLONY
-
Luxury/Non Luxury: Builder
-
Residential Commercial: Builder
-
Department: Plumbing
