American Standard 2467.100.020 Pressure Assist Toilet 1.1 GPF 12 Rough-In

Product Description

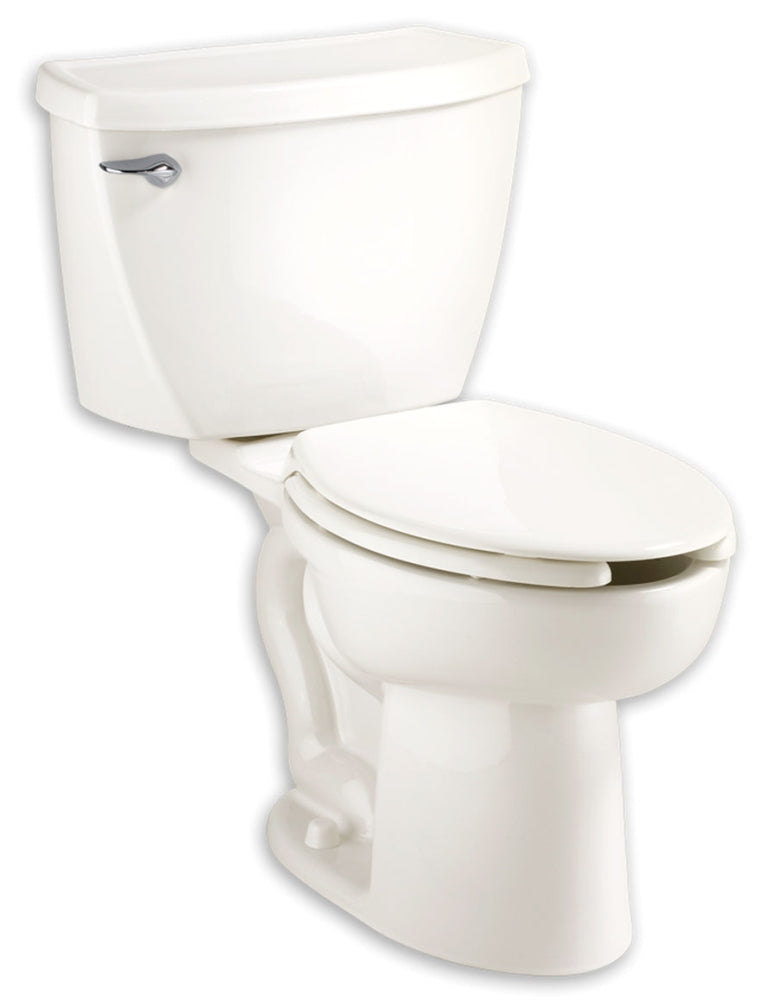

The American Standard 2467.100.020 is a two-piece pressure-assisted toilet designed for efficiency. This model features a bowl height of sixteen and one-half inches and a rough-in measurement of twelve inches. Its overall dimensions are twenty-seven and one-fourth inches long, twenty and one-half inches wide, and thirty and three-fourths inches high. The bowl material is vitreous china and is finished in white. This toilet uses one point one gallons per flush and operates optimally under a working pressure of twenty-five to eighty PSI.

• Pressure-assisted siphon jet flush action
• Durable vitreous china construction
• ADA compliant design for accessibility

Product Highlights

This toilet not only meets the requirements for ADA and EPA WaterSense standards but also provides a high-efficiency flush mechanism, ensuring optimal water usage.

Product Information

Standard Information

• Brand Name: American Standard
• MPN: 2467100.020

Technical Specifications

• Type: Two-Piece, Pressure Assisted Elongated
• Bowl Height: 16.5 inches
• Rough-In Size: 12 inches
• Overall Dimensions: 27.25 inches x 20.5 inches x 30.75 inches
• Bowl Material: Vitreous China
• Bowl Color: White
• Gallons per Flush: 1.1
• Working Pressure: 25-80 PSI
• Drain Connection: 2.125 inches
• Trip Lever: Chrome Plated Metal, Right Side
• Tank Type: Close Coupled Flushometer
• Mounting Type: Floor Mount
• Outlet Location: Bottom
• Inclusions: Siphon Action Flush, 2-Bolt Cap, Sanitary Dam on Bowl
• Exclusions: Seat, Supply
• Applicable Standards: ADA, ASME A112.19.2/CSA B45.1, ANSI A117.1, EPA, IAPMO, CEC
• Water Surface Area: 10 inches x 12 inches
