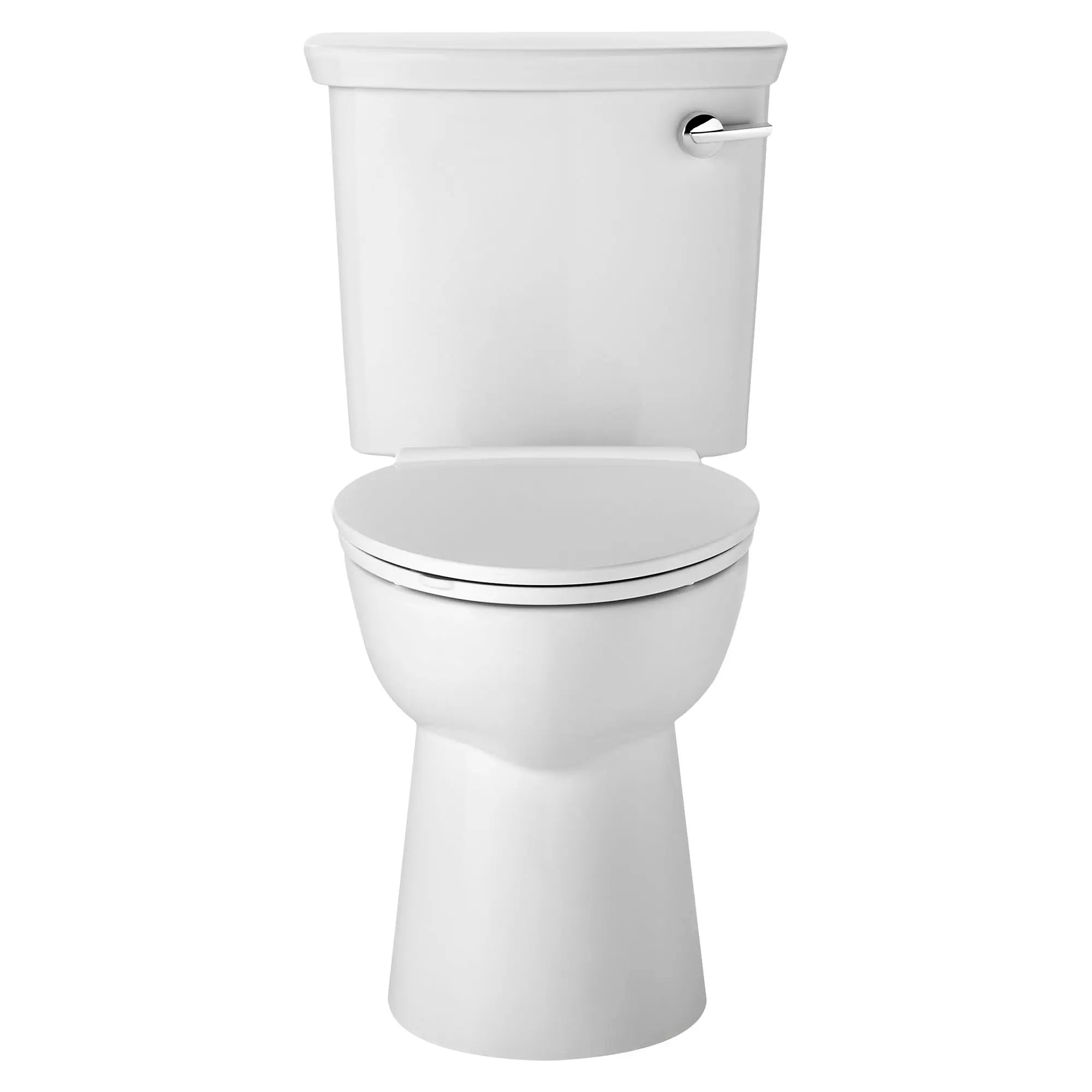

American Standard 238AA105.020 Vormax Elongated Two Piece Toilet 1.28 gpf

Product Description

The American Standard 238AA105.020 is a combination bowl and tank. It features an EverClean Antimicrobial Surface to inhibit the growth of odor causing bacteria, mold and mildew. The Right Height elongated siphon action bowl includes EZ-Install Tools. The CleanCurve rim eliminates rim area where dirt and build-up hide.

• Combination bowl and tank
• EverClean Antimicrobial Surface inhibits bacteria growth
• Right Height elongated siphon action bowl

Product Highlights

This American Standard Vormax toilet features a combination bowl and tank with antimicrobial surface and elongated bowl for comfort and hygiene.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 238AA105.020
• Country of Origin: Mexico

Technical Specifications

• Category: Toilet
• Handle: Lever
• Material: Vitreous China
• Brand: American Standard
• Item Shape: Bowl Shape: Elongated
• Toilet Type: Two Piece
• Flush Valve Size: 2-1/16 in
• Flush Technology: VorMax
• Flushing Type: Single Flush
• GPF Maximum: 1.28 gpf
• Tank Included: Yes
• Insulated Toilet Tank: No
• Toilet Seat Included: No
• Toilet Trapway Diameter: 2.0625 in
• Bidet Spray Type: Yes
• Everclean: Yes
• Height: 32-1/4" (bottom of the base to the highest point on the toilet)
• Width: 17-7/8" (furthest point on the left to the furthest on the right)
• Depth: 30-3/16" (back of the tank to the front of the rim)
• Bowl Height: 16-1/2" (bottom of the base to the rim)
• Flow Rate: 1.28 gallons-per-flush
• Rough In: 12"
• Trapway: 2-1/16"
• Water Area: 9 x 8
• Bowl Shape: Elongated
• Configuration: Two Piece
• Design Features: Chair Height
• Flush Type: Gravity Flush
• Installation Type: Floor Mounted
• Theme: Traditional
• Trip Lever Placement: Right
• Water Efficient: Yes
• ADA: Yes
• ASME Code: A112.19.2
• CA Drought Compliant: Yes
• Certifications: ASME, CSA
• Collection: Vormax, Comfort Height
• Series: Vormax
• TX Drought Compliant: Yes
• WaterSense Certified: Yes
• Trip Lever: Right-hand trip lever - Chrome-plated finish
• ADA Compliance: ADA COMPLIANT — Meets Americans with Disabilities Act requirements for use and accessibility
• Seat: LESS SEAT - Toilet seat is sold separately
• Mounting Bolts Distance: 5.5 inch distance between mounting bolts
• Bowl Dimensions: 14 in L x 18-1/2 in W
• Domestic/Import: Import
• Finish/Color: White
• Flush Rate: 1.28 gpf
• Flushing System: Single Flush
• Mounting Type: Floor
• Overall Dimensions: 17-7/8 in W x 34-1/4 in D x 30-3/16 in H
• Rim Height: 16-1/2 in
• Rough-In Size: 12 in
• Trapway Size: 2-1/8 in Dia
• Type: 2-Piece High Efficiency Transitional
• SKU: 238AA105.020
• Product Type: Toilet
• Product Group: Washroom/Bath
• Product Subgroup: Toilet
• Family: VORMAX
• Luxury/Non Luxury: Luxury
• Residential Commercial: Residential
• Department: Plumbing
• UPC: 791556103061
• Online Product ID: 3208986
• Country of Origin: Mexico
• Oversized: Yes
• Watersense: WS
• Energy Efficient: Yes
• Unit Of Measure: Each
