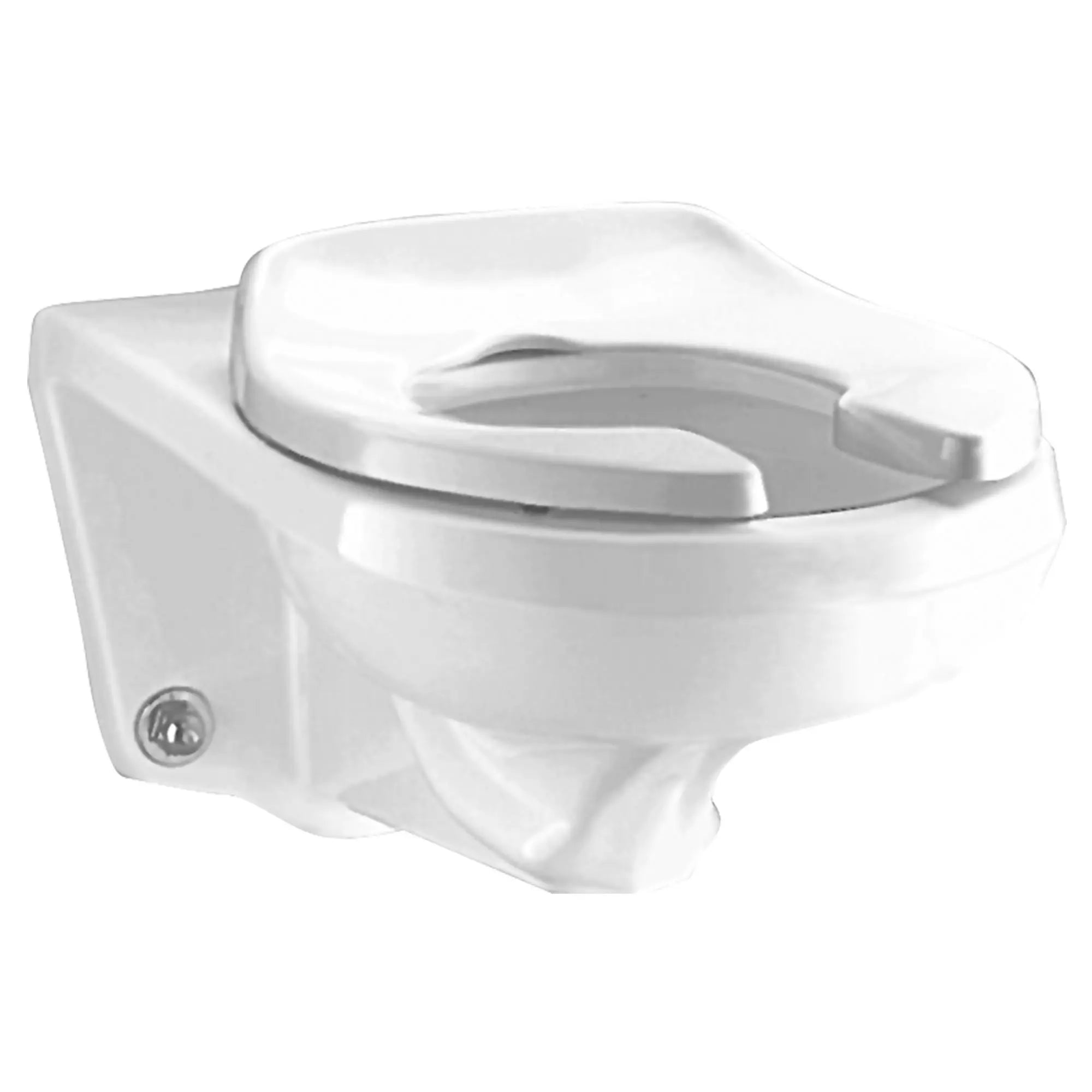

American Standard 2294.011EC Afwall Ada Retrofit 1.28 – 1.6 gpf Top Spud Elongated Wall-Hung EverClean Bowl

Product Description

The AMERICAN STANDARD 2294.011EC Afwall ADA replaces standard wall-hung models and rough-ins at 16-1/8" rim height to meet ADA without modifying the existing carrier. This high-efficiency toilet operates in the range of 1.28 – 1.6 gpf. Its EverClean surface protects against mold, mildew, and odor-causing bacteria.

• Replaces standard wall-hung models without carrier modification.
• Operates in the high-efficiency range of 1.28 – 1.6 gpf.
• Features EverClean surface to protect against microbial growth.

Product Highlights

This ADA-compliant, wall-hung toilet bowl offers efficient flushing and antimicrobial protection for commercial applications.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 2294.011EC
• Country of Origin: Import

Technical Specifications

• Item Shape: Bowl Shape: Elongated
• Toilet Type: Floor_Standing_Toilet_Bowl
• Flush Technology: Flushometer
• GPF Maximum: 1.6 gpf
• GPF Minimum: 1.28 gpf
• Toilet Trapway Diameter: 2-1/8 in
• Everclean: Yes
• MAP Performance Rating: 1000
• Collection: Afwall, FloWise
• Domestic/Import: Import
• Finish: White
• Flush Rate: 1.28 to 1.6 gpf
• Flush Type: Flushometer, Siphon Jet
• Minimum Water Pressure: 25 psi Flushing
• Mounting Type: Wall
• Rim Height: 16-1/8 in
• Shape: Elongated
• Spud Size: 1-1/2 in
• Trapway Size: 2-1/8 in
• Water Surface Area: 10 x 12 in
• Item Name: Toilet Bowl
• Water Per Flush: 1.28 - 1.6 GPF
• Bowl Height: 14-1/2 IN
• Rough-In: 12 IN
• Material: Vitreous China
• ADA Compliant: Yes
• Bowl Width: 14-3/4 IN
• Bowl Depth: 25 IN
• Industry Standards: ASME A112.19.2-2008/CSA B45.1-08
• MFR P/N: 2294.011EC-0
• MODEL: FloWise
• FEATURE: Rough-Ins to Meet ADA Without Modifying Existing Carrier
• COLOR: White
• BOWL SHAPE: Elongated
• SERIES: AFWALL
• FLUSHING ACTION: Direct Fed Siphon Jet
• GALLONS PER FLUSH: 1.28 GPF-1.6 GPF
• HIGH-EFFICIENCY: Yes
• ONE/TWO-PIECE: One-Piece
• OUTLET: Rear
• SEAT: Less Seat
• SPUD: 1-1/2" Top-Spud
• TRAP-WAY: Fully Glazed 2-1/8" Trap-Way
• FIXTURE TYPE: Toilet
