Product Description

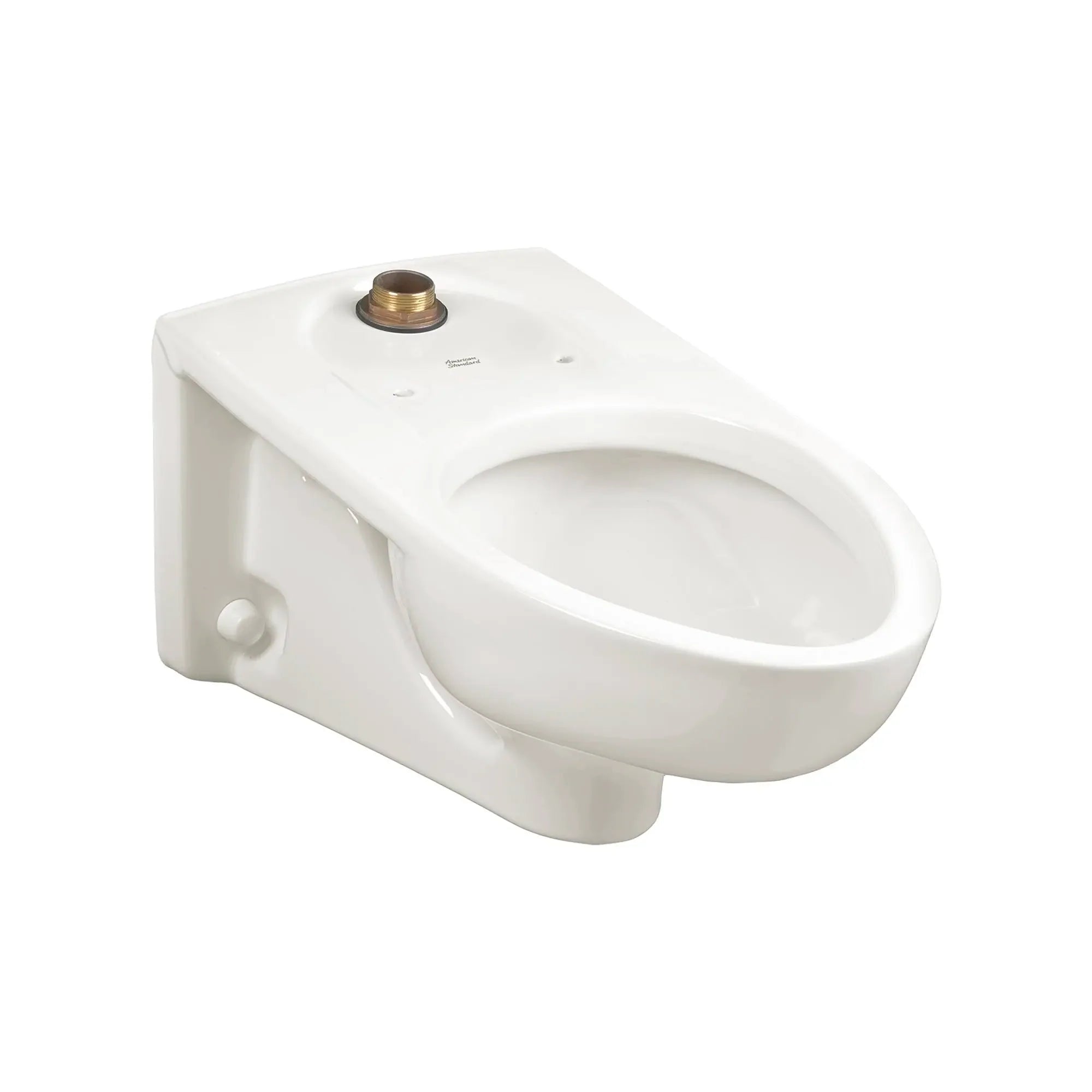

The American Standard 2257.101 Afwall® Millennium® is a reliable wall-hung toilet with premier flushing performance. Operating between 1.1 and 1.6 gpf, it meets HET standards when used with a high-efficiency flush valve. Features a concealed trapway design with condensation channel and a powerful direct-fed siphon jet action. It has been factory flush tested.
- High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
- Maximum Performance (MaP) score of 1,000 grams at 1.1 – 1.6 gpf
- Direct-fed siphon jet flush action
Product Highlights
The Afwall Millennium toilet combines water efficiency with a streamlined design, making it suitable for modern bathrooms.
Product Information
Standard Information
-
Brand: AMERICAN STANDARD
-
Manufacturer Part Number: 2257.101
Technical Specifications
-
Item Shape: Bowl Shape: Elongated
-
Toilet Type: Wall_Hung_Toilet_Bowl
-
Flush Technology: Flushometer
-
GPF Maximum: 1.6 gpf
-
GPF Minimum: 1.1 gpf
-
Toilet Trapway Diameter: 2-1/8 in
-
Bidet Spray Type: No
-
Everclean: No
-
MAP Performance Rating: 1000
-
Collection: Afwall Millennium
-
Flush Type: Siphon Jet
-
Gallons per Flush: 1.1 to 1.6 gpf
-
Inlet Spud Size: 1-1/2 in
-
Material: Vitreous China
-
Minimum Water Pressure: 25 psi
-
Mounting Type: Wall
-
Rim Height: 15 in
-
Rough-In Size: 12 in
-
Shape: Elongated
-
Trapway Size: 2-1/8 in
-
Water Surface Area: 10 x 12 in
-
Overall Height: 15" (bottom of the base to the highest point on the toilet)
-
Overall Depth: 26" (back of the fixture to the front of the rim)
-
Overall Width: 14" (furthest point on the left to the furthest on the right)
-
Bowl Height: 13-1/8" (bottom of the base to the rim)
-
Flow Rate: 1.1 - 1.6 GPF (gallons-per-flush)
-
Water Area: 10" x 12" (inner rim dimensions length x width)
-
Configuration: Bowl Only
-
Design Features: Glazed Trapway, Concealed Trapway
-
Installation Type: Wall Mounted
-
Spud Placement: Top
-
Theme: Transitional, Basic
-
Water Efficient: Yes
-
HET High Efficiency: Yes
-
ADA: Yes
-
Approved for Commercial Use: Yes
-
CA Drought Compliant: Yes
-
Series: Afwall
-
TX Drought Compliant: Yes
-
WaterSense Certified: No
-
MFR P/N: 2257.101-020
-
MODEL: MILLENIUM
-
ADA COMPLIANT: Yes
-
BOWL SHAPE: Elongated
-
FLUSHING ACTION: Direct Fed Siphon Jet
-
HIGH-EFFICIENCY: Yes
-
ONE/TWO-PIECE: One-Piece
-
OUTLET: Rear
-
SEAT: Less Seat
-
SPUD: 1-1/2" Top-Spud
-
TRAP-WAY: Fully Glazed 2-1/8" Trap-Way
-
FIXTURE TYPE: Toilet
-
MATERIAL DETAILS: Vitreous China
-
FEATURE: Condensation Channel
