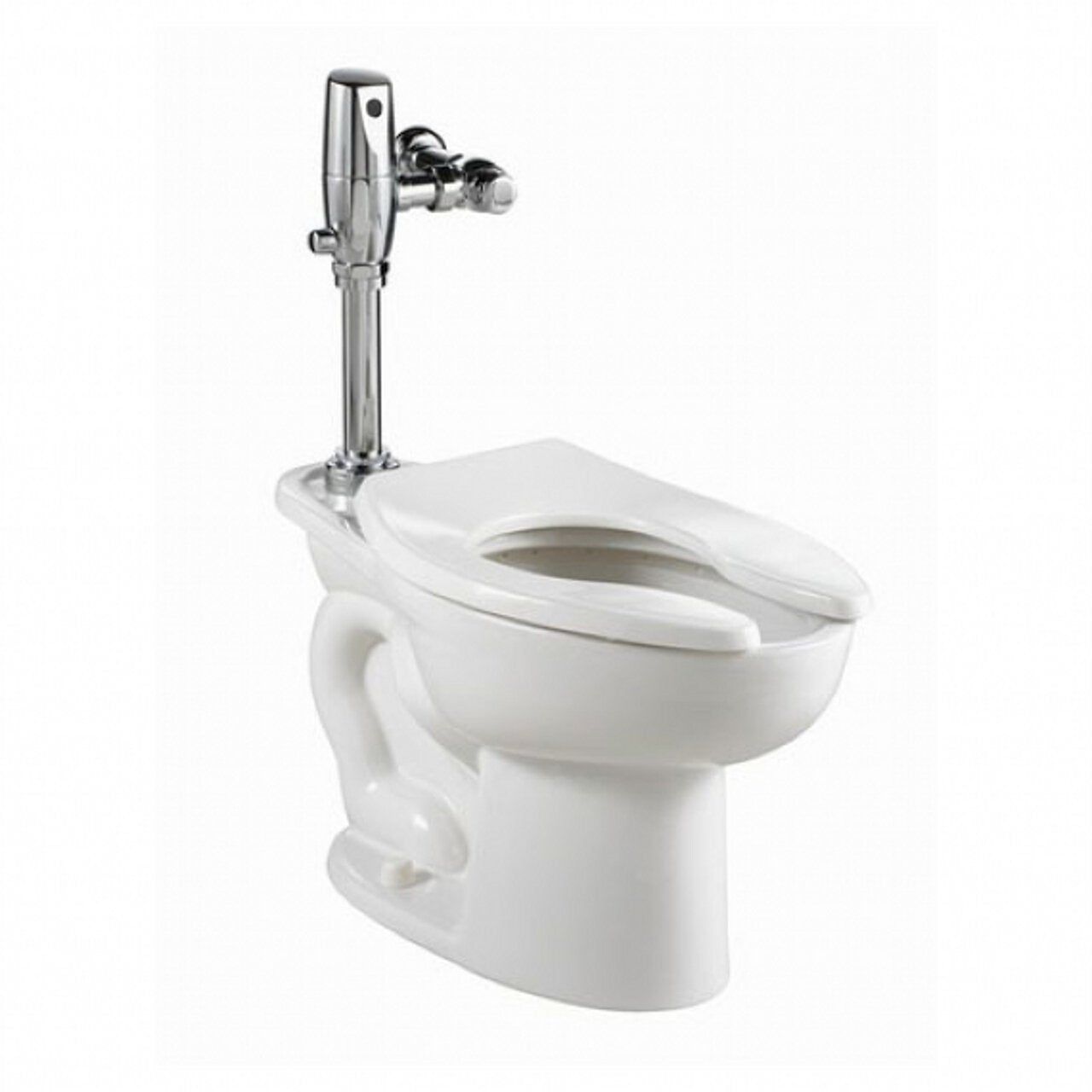

American Standard 2234.001.020 Madera Elongated Toilet Bowl 1.1-1.6 GPF 15 Inch White Top Spud

Product Description

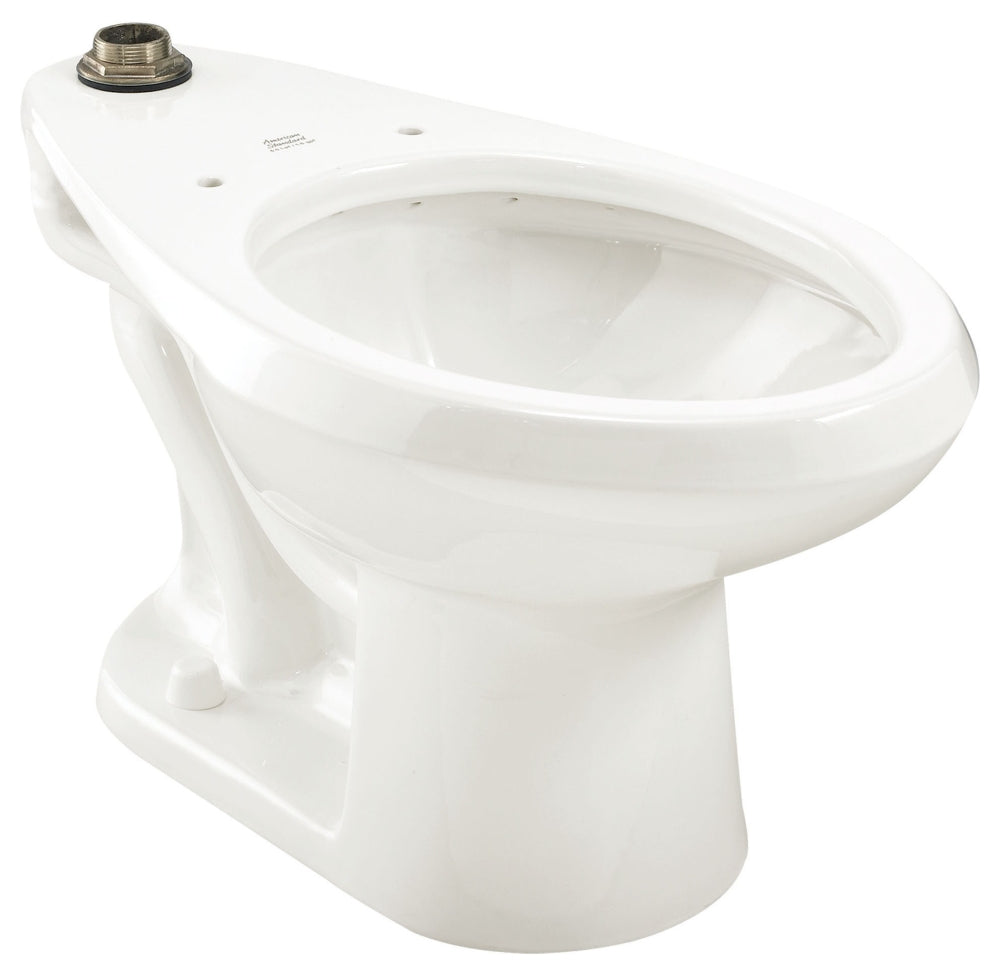

The American Standard 2234.001.020 Madera Elongated Toilet Bowl is designed to meet the high demands of both residential and commercial environments. This floor-mounted toilet bowl features a polished white finish and a top spud inlet connection.

• High efficiency flush
• Vitreous China material
• Elongated shape

Product Highlights

This American Standard Madera toilet bowl offers a powerful and efficient flushing system, ensuring cleanliness and water conservation. Its floor-mounted design makes it a robust option for high-traffic areas.

Product Information

Standard Information

• Brand: American Standard
• MPN: 2234.001.020

Technical Specifications

• Type: Elongated
• Material: Vitreous China
• Color/Finish: White
• Gallons Per Flush: 1.1 to 1.6
• Bowl Height: 15 inches
• Rough-In: 10 inches
• Inlet Connection: 1-1/2 inches Top Spud
• Mounting Type: Floor Mount
• Recommended Working Pressure: 25 PSI (Flushing), 80 PSI (Static)
• Inclusions/Features: (2) Bolt Cap, Fully Glazed 2-1/8 Inch Trapway, Siphon Jet Action
• Used On Item: Elongated Toilet
• Used On Model/Brand: FloWise/MADERA
• Exclusions: Seat, Flush Valve
• Applicable Standard: ASME A112.19.2/CSA B45.1-08

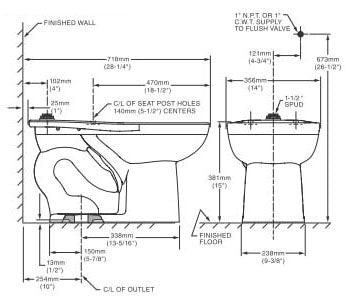

• Size: 28-1/4 Inch Length x 14 Inch Width
• Water Surface Area: 10 Inch x 12 Inch
