American Standard 1660774.002 Spectra Handheld 1.8 gpm 30 inches 4-Function Slide Bar Kit

Product Description

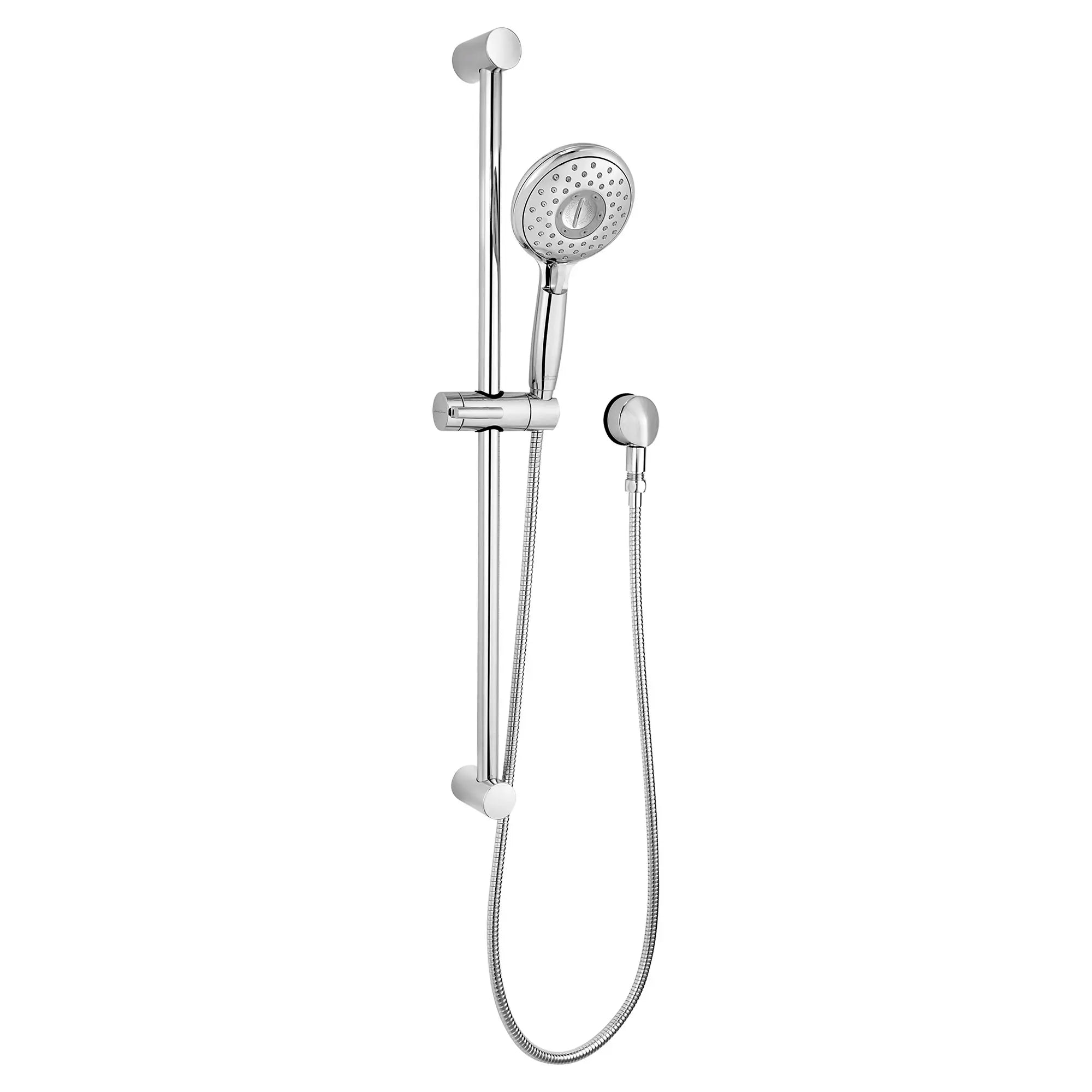

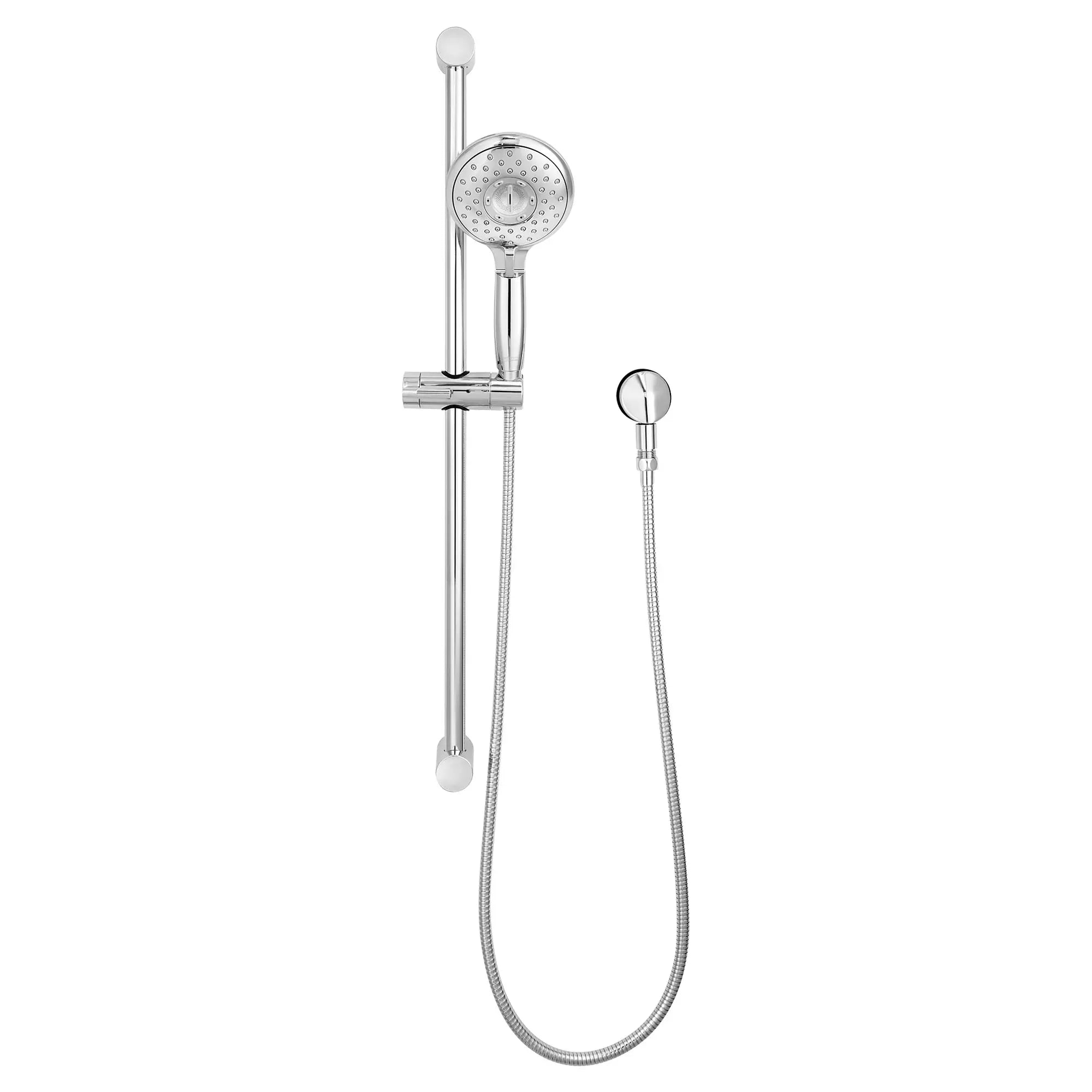

The American Standard 1660774.002 Spectra+ Handheld Shower Slide Bar Kit includes a Spectra+ hand shower, 30" shower rail, 59" shower hose, and a wall supply. The hand shower features four spray functions: Drench, Sensitive, PowerWash, and Massage, easily changed with AquaToggle. It has a lightweight, ergonomic design for a secure grip.

• Includes Spectra+ hand shower, 30" shower rail, 59" shower hose, and wall supply
• Features a lightweight, ergonomic design for a sure grip
• AquaToggle easily changes sprays for hand shower

Product Highlights

Complete kit with multiple spray functions and easy spray selection. Ideal for residential use.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 1660774.002
• Country of Origin: China

Technical Specifications

• Width: 9.2"
• Height: 31.7"
• Length: 7.4"
• WaterSense: Yes
• FinishColor: Polished Chrome
• Finish_Name: Chrome
• Commercial_or_Residential: Primarily Residential
• Item: Shower Slide Bar Kit
• Type: Wall Mounted
• Depth: Spectra+ Handheld: 1-3/4", Slide Bar: 1-3/4"
• Finish: Polished Chrome
• Series: Spectra+
• Features: Water Saving, Pressure Compensating Flow Control Device, Variety of Spray Functions
• Includes: Spectra+ Handheld, Slide Bar, Hose and Wall Supply
• Material: Slide Bar: All Metal
• Face Dia.: 4-1/2"
• Flow Rate: 1.8 gpm
• Standards: ASME A112.18.1, CSA B125.1, WaterSense, Water Efficient, Green UPC
• Connection: 1/2" NPT female inlet, 1/2" NPSM male outlet
• Face Shape: Circle
• Trim Finish: Polished Chrome
• ADA Compliant: Yes
• CEC Compliant: Non CEC Compliant
• Mounting Type: Wall
• Includes Valve: No
• Connection Size: 1/2 in
• Connection Type: FNPT
• Includes Handle: No
• Showerhead Type: Handheld
• Primary Material: Metal
• Shower Head Type: Wall Mounted
• Showerhead Shape: Flat Circle
• Includes Tub Spout: No
• Ligature Resistant: No
• Includes Trim Plate: No
• Showerhead Function: Multi
• Showerhead Material: Metal, Plastic
• Showerhead Spray Pattern: Combo
• Handheld Showerhead Width: 4 1/2 in
• Includes Fixed Showerhead: No
• Includes Handheld Showerhead: Yes
• Handheld Showerhead Flow Rate: 1.8 gpm
• Handheld Showerhead Thickness: 9 15/16 in
• Country of Origin (subject to change): China
• Model: 1660774.002
• Number of Handles: 1
• Handle Material: Metal
• Included Components: 30-inch Shower Rail, 59-inch Metal Shower Hose, Spectra+ Hand Shower, Wall Supply
• Flow Rate Description: 1.8 Gallons Per Minute
• Head Size: Standard Handheld Size
• Style: Transitional
• Shape: Round
• Installation Method: Wall Mounted
• Item Package Quantity: 1
• Hose Length: 59 Inches
• Special Features: Water Efficient, 1.8 gpm flow rate
• Batteries Included?: No
• Batteries Required?: No
• Product type: 4 Function
• Spray: Drench/Sensitive/PowerWash/Massage
• Bar details: 30 Inch
• Hose details: 59 Inch
• Showerhead diameter: 4-15/16 IN
• Inlet size: 1/2 IN
• Inlet connection: NPT
• Collection: Spectra
