American Standard 0476.028.020 20-3/8 inches x 17-3/8 inches Bathroom Sink

Product Description

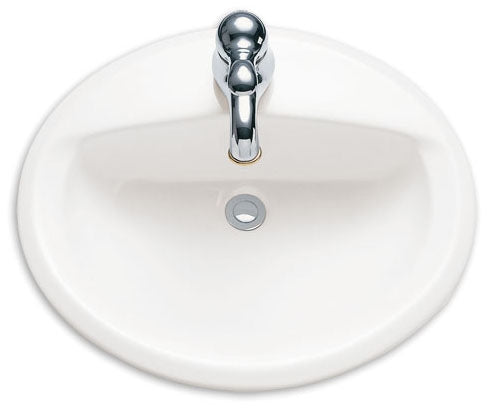

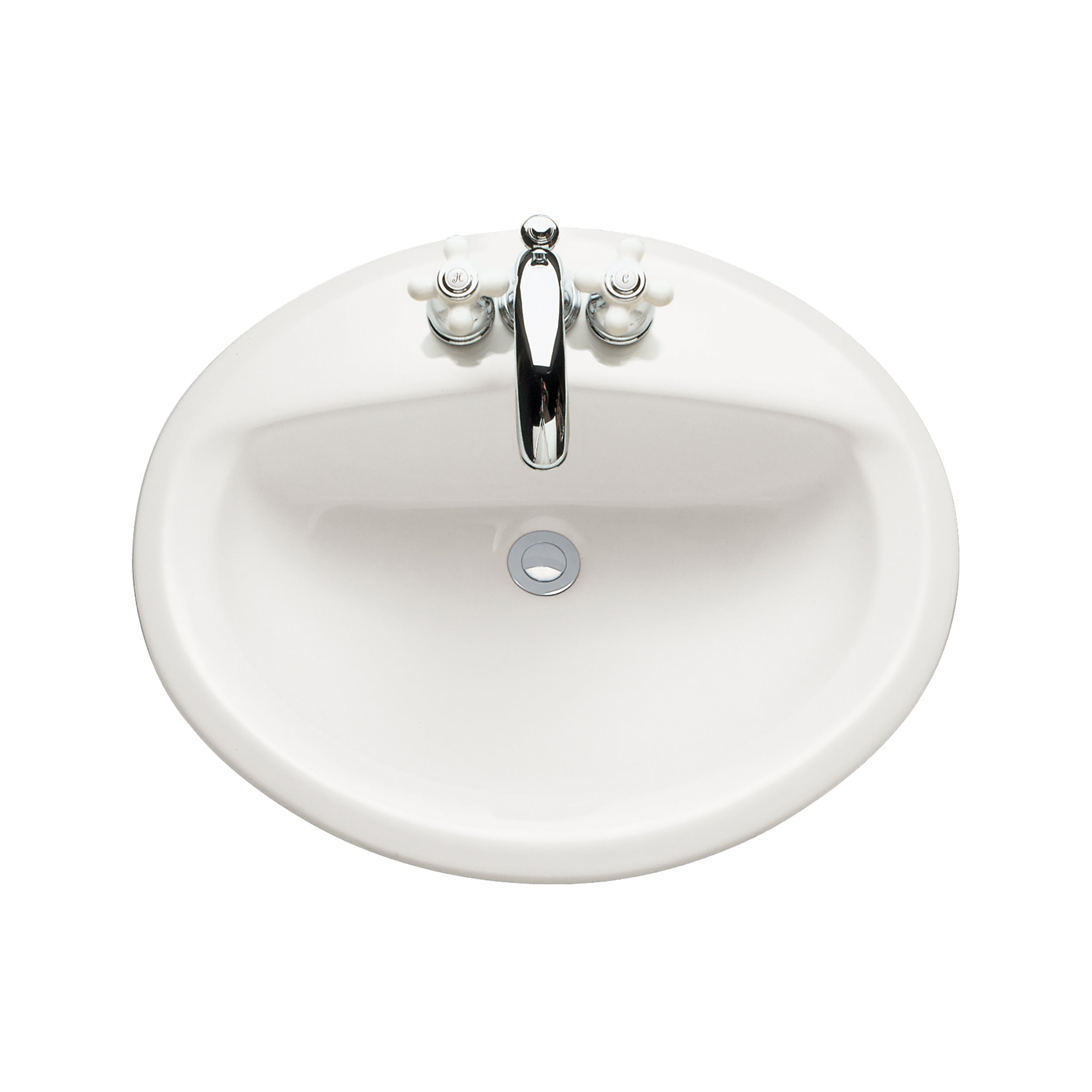

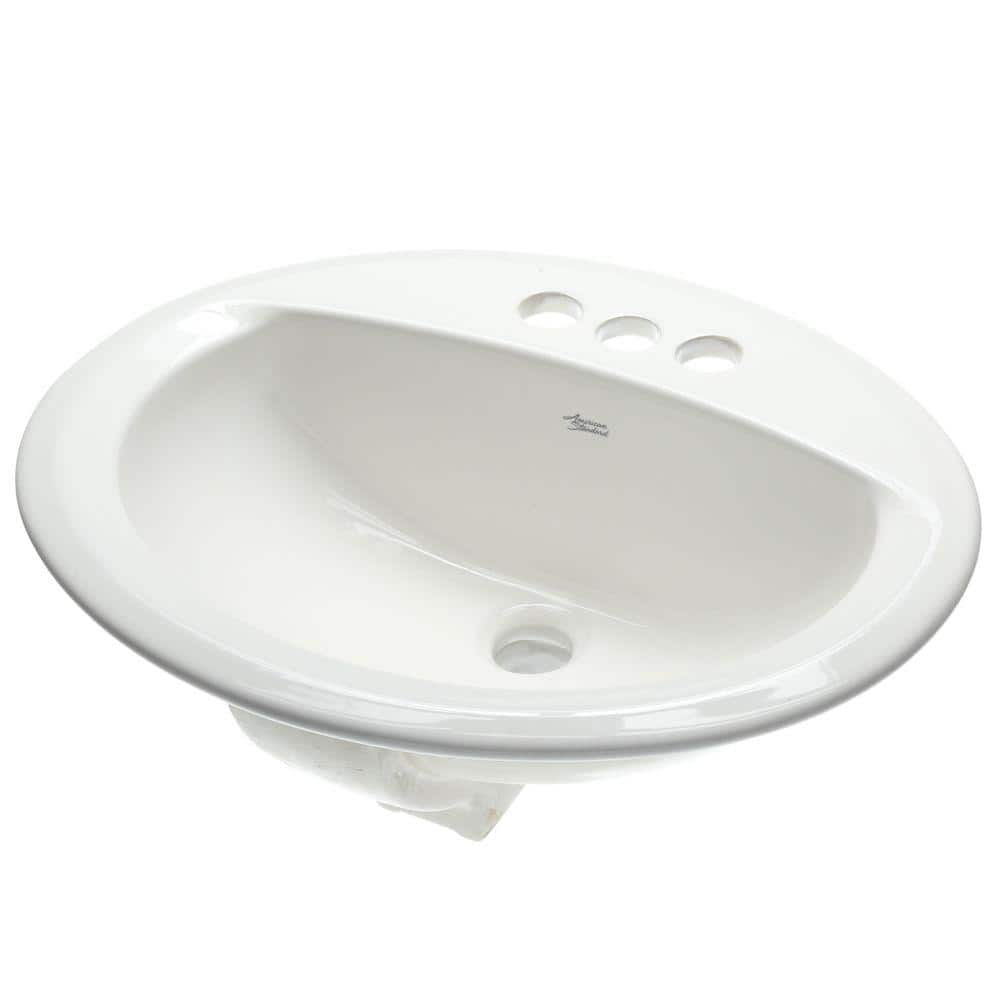

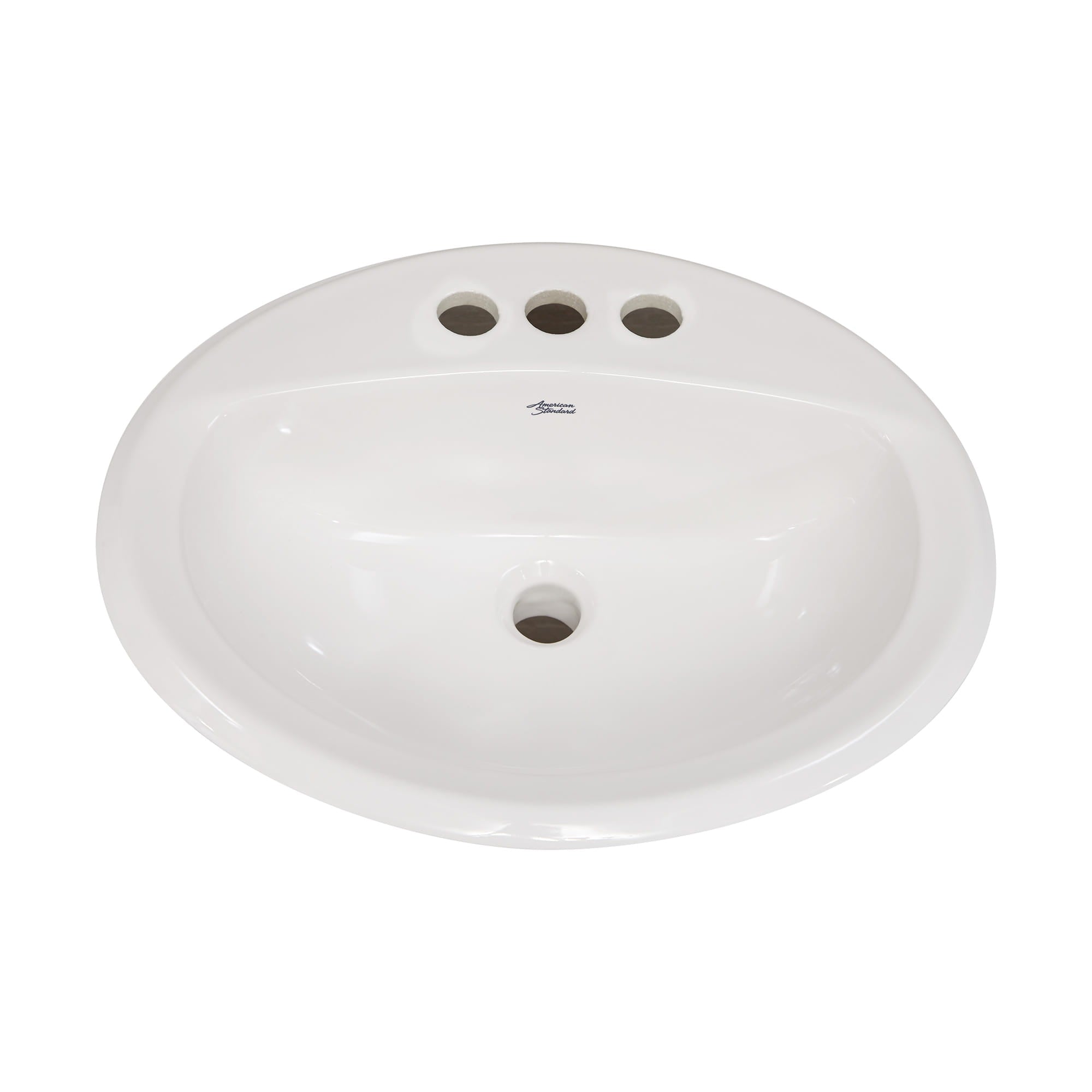

The American Standard 0476.028.020 bathroom sink is a drop-in oval sink with dimensions of 20-3/8 inches in length and 17-3/8 inches in width. Constructed from vitreous china, it features a front overflow and a 4-inch faucet hole center. This bathroom sink is ADA compliant and suitable for residential applications.

• Features tapered edges for style.
• Made from high-gloss, stain-resistant vitreous china.
• ADA compliant and barrier-free design.

Product Highlights

This drop-in bathroom sink combines style and durability with its vitreous china construction and ADA-compliant design.

Product Information

Standard Information

• Brand: AMERICAN STANDARD
• Manufacturer Part Number: 0476.028.020
• Country of Origin: US

Technical Specifications

• Type: Drop-In
• Shape: Oval
• Length: 20-3/8 Inch
• Width: 17-3/8 Inch
• Material: Vitreous China
• Color/Finish: White
• Drain Connection: 1-1/4 Inch
• Overflow Style: Front
• Number of Holes: 3 Hole
• Faucet Hole Center: 4 Inch
• Applicable Standard: ADA, ASME A112.19.2M, ANSI A117.1
• Bowl Dimension: 16 Inch Length x 10 Inch Width x 5-5/8 Inch Depth
• Description: ASC 0476.028 WHTE 20X17 4" LAVATORY
• Brand: AMERICAN STANDARD
• ADA Compliance: Yes
• Application: Residential
• Bowl Size: 16 in W x 10 in D x 5-5/8 in H
• Collection: Aqualyn
• Country of Origin: US
• Domestic/Import: Domestic
• Drain Size: 1-1/4 in
• Faucet Hole Spacing: 4 in
• Includes: Cutout Template
• Mfg Standards/Approvals: ASME A112.19.2M, ANSI A112.19.2
• Mounting Type: Countertop/Drop-In
• Number of Basins: 1
• Overall Dimensions: 20-3/8 in W x 17-3/8 in D x 7 in H
• Package Height: 8.25 in
• Package Length: 21.25 in
• Package Weight: 21.2 lb
• Package Width: 18.25 in
• Warranty: 1 Year Limited
• Product Type: Drop-In Sink
• Sink Type: Bathroom
• Overflow: Front
• Style: Classic
• Faucet Center: 4 in
• Overflow Hole: Yes
• Drain Location: Rear
• Specifications Met: ASME A112.19.2M
• Depth: 7 in
• Bowl Depth: 5-5/8 in
• Bowl Width: 10 in
• Bowl Length: 16 in
• Catalog Number: 0476.028.020
• Finish: White
• Sink Overflow: Yes
• Faucet Holes Drilling: 3
• Installation Type: Drop In
• Drain Placement: Rear
• Height (Inches): 7-3/8"
• Length (Inches): 20-3/8"
• Width (Inches): 17-3/8"
• Mounting Location: Sink
• Sink Shape: Oval
• Faucet Centers: 4 in. Centerset
• Overall Front to Back Width (In.): 17.375 in
• Overall Height (In.): 7
• Overall Length (In.): 20.375 in
• Product Depth (in.): 7
• Product Height (in.): 7
• Product Length (in.): 20.375
• Product Width (in.): 17.375
• Returnable: 90-Day
• Certifications and Listings: No Certifications or Listings
• Overall Height: 7-3/8" (bottom of sink to the top of the rim)
• Overall Width: 17-3/8" (back outer rim to the front outer rim)
• Overall Length: 20-3/8" (left outer rim to the right outer rim)
• Basin Width: 16 in
• Basin Length: 10 in
• Basin Depth: 5-5/8" (center of basin to the rim)
• Number of Faucet Holes: 3
• Drain Outlet Size: 1-1/4"
• ADA: Yes
• Faucet Holes: 3
• Faucet Mounting Type: Centerset, Mini-widespread, Single Hole
• Theme: Modern
• ANSI: ANSI A112.19.2, ANSI A117.1
• ASME: ASME A112.19.2M
• CARB OTC LEED Compliant: No
• CSA Certified: CSA B45.1
• Color Finish Category: Whites
• Color Finish Name: White
• GSA Approved: No
• Height: 7-5/8 in
• IAPMO Listed: No
• NSF Certified: No
• Number of Bowls: 1
• Overflow Included: Yes
• Sink Bowl Size: 16 in x 10 in
• Sink Depth: 7-3/8 in
• Sink Installation Type: Drop-in
• Sink Material: Vitreous China
• Sink Size Range: 20 in - 25.99 in
• Basin Shape: Oval
• Basin Height: 5-5/8 in
• Faucet Included: No
• Number of Deck Holes: 3
