American Specialties 3801-36 Snap Flange Grab Bar 36 inches Replacement 3801-36

Product Description

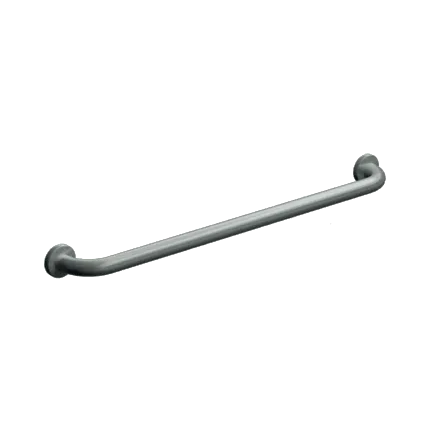

The AMERICAN SPECIALTIES 3801-36 Snap Flange Grab Bar is ideal for showers and bathrooms to comply with ADA regulations. Constructed from 18 gauge Type 304 stainless steel tubing with a satin finish. The cover snaps over mounting flange dimples to conceal screws. Helps comply with ADA guidelines and regulations.

• Complies with ADA regulations
• Made of 18 gauge Type 304 stainless steel tubing with a satin finish
• Cover snaps over mounting flange dimples to conceal screws

Product Highlights

This 36" grab bar is made from stainless steel with a satin finish and is ADA compliant.

Product Information

Standard Information

• Brand: AMERICAN SPECIALTIES
• Manufacturer Part Number: 3801-36
• Country of Origin: USA

Technical Specifications

• Type: Single Wall
• Brand: American Specialties
• Material: Stainless Steel
• Depth: 3 in
• Width: 36 in
• Height: 1.5 in
• Diameter: 1.5 in
• Weight Capacity: 250 lbs
• Manufacturers Part Number: 3801-36
• O.D.: 1.25 in
• Mounting Flange: 3.125 in O.D. diameter with 2 screw holes and 3 locking dimples
• Cover: type 304 stainless steel with a satin finish and 22 gauge, 3.1875 in diameter
• Thickness: 0.125 in
• Product Type: Grab Bar
• Nominal Size (In.): 36" X 1.5"
• Surface Type: Smooth
• Length (In.): 36"
• Length: 36 Inches
• Features: ADA Compliant
• Finish: Satin
• Gauge: 18 Gauge
• Style: Straight
