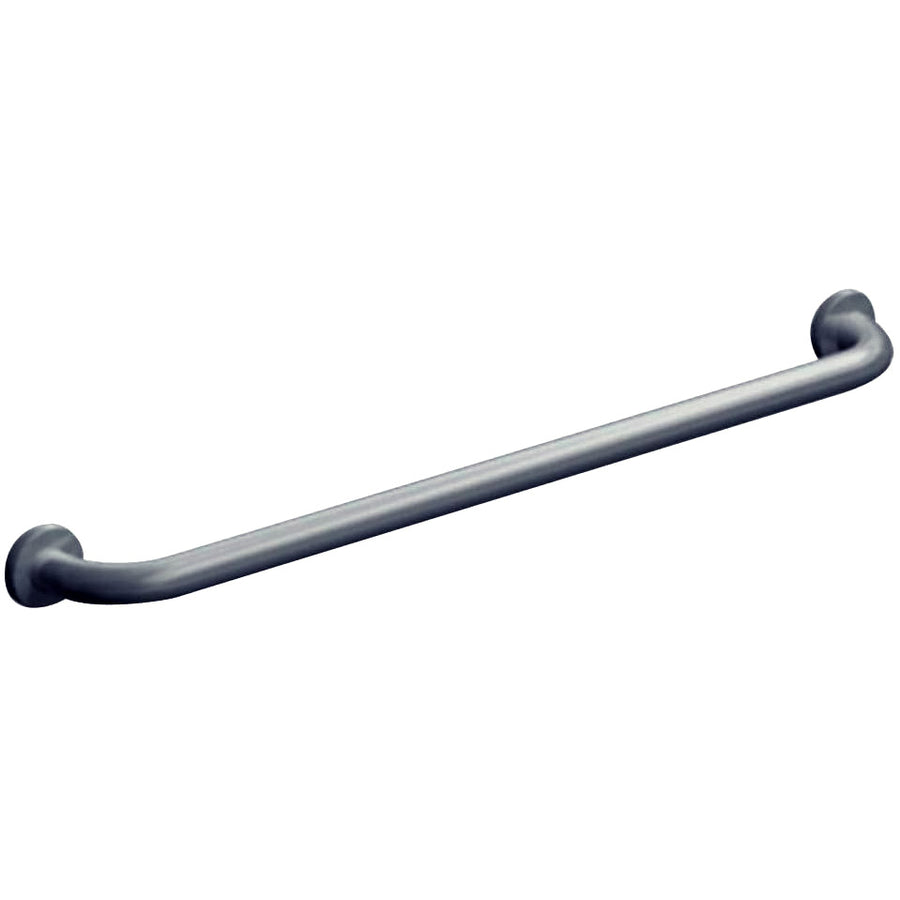

American Specialties 3801-18 Straight Grab Bar 18 inches

Product Description

The AMERICAN SPECIALTIES 3801-18 is a straight grab bar. Features a cover that snaps over mounting flange dimples to conceal screws and a concealed mounting flange of 3-1/8", 1/8" thick, type 304 stainless steel. The cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3/16" diameter.

• Cover that snaps over mounting flange dimples to conceal screws
• Concealed mounting flange
• Type 304 stainless steel

Product Highlights

The grab bar is constructed of stainless steel for durability with a secure mounting assembly and is ADA compliant.

Product Information

Standard Information

• Brand: AMERICAN SPECIALTIES
• Manufacturer Part Number: 3801-18
• Country of Origin: USA

Technical Specifications

• O.D.: 1-1/4" (32 mm)
• Mounting flange: 3-1/8" (79 mm) O.D. diameter with 2 screw holes and 3 locking dimples
• Cover: type 304 stainless steel with a satin finish and 22 gauge, 3-3/16" (81 mm) diameter
• Thickness: 1/8" (3 mm)
• Material: Stainless Steel
• Product Type: Grab Bar
• Nominal Size (In.): 18" X 1.5"
• Surface Type: Smooth
• Length (In.): 18"
• Dia. (In.): 1.5"
• Finish: Satin
• Gauge: 18 Gauge
• Stainless Steel Type: Type 304
• Style: Straight
• Type: Grab Bars
• Width: 18"
• Projection: 3 in.
• Bar Diameter: 1-1/2"
• Depth: 3 in.
• Escutcheon Height: 3.125 in.
• Escutcheon Width: 3.125 in.
• Height: 3.125 in.
• Escutcheon Included: Yes
• Installation Hardware Included: No
• Concealed Screws: Yes
• Escutcheon Shape: Round
• Installation Type: Wall Mounted
• Number of Bars: 1
• Shape: Straight
• Theme: Modern
• ADA: Yes
• Approved for Commercial Use: Yes
• Certifications: ANSI
• Made in America: Yes
