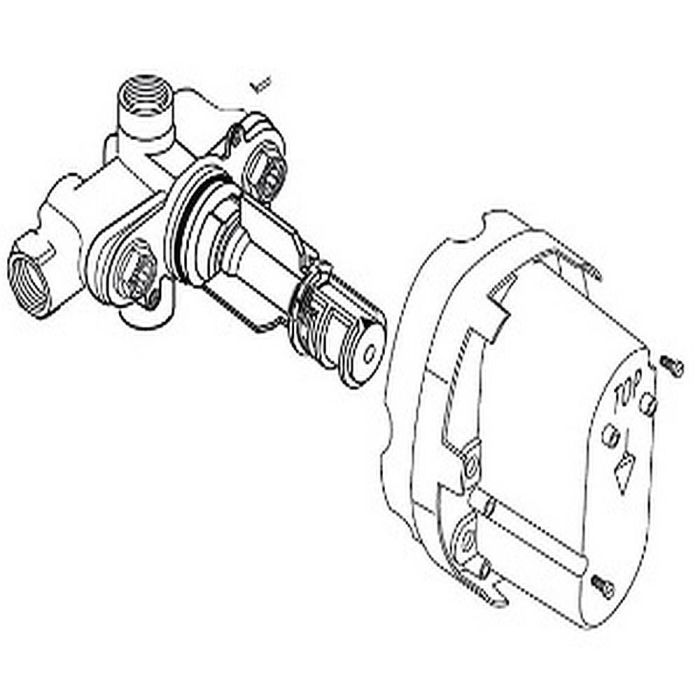

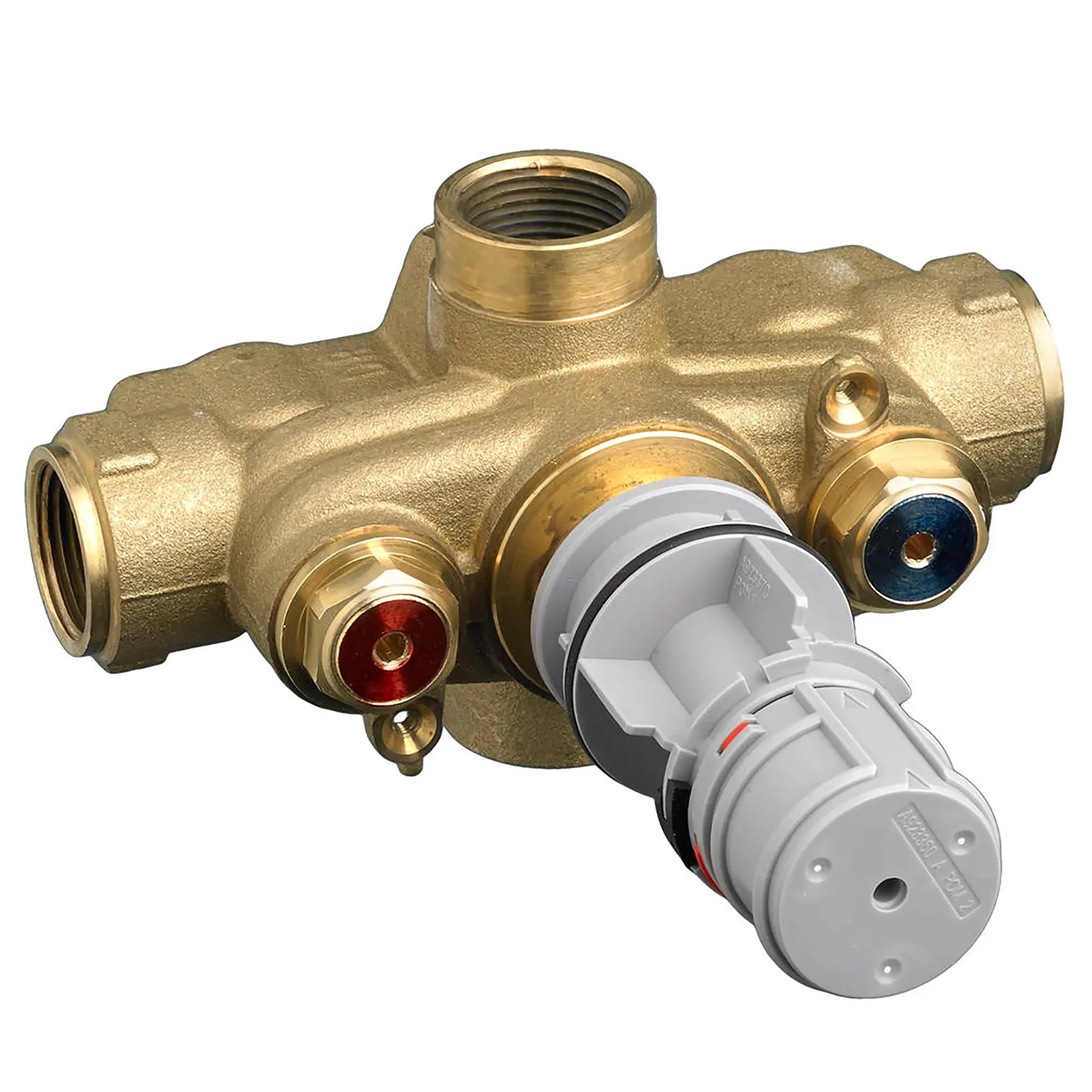

American R530 Central Thermostatic Rough-In Valve 3/4-Inch

Product Description

The American R530 is a three-quarter inch central thermostatic rough-in valve. Constructed from solid brass, this valve features spring-loaded check valves that prevent cross flow. It also includes integrated stop valves for easy service access, increasing reliability in your plumbing systems. An adjustable hot limit safety stop is included to help reduce the risk of scalding. Designed for IPS inlet and outlet connections, the valve supports back-to-back installation.

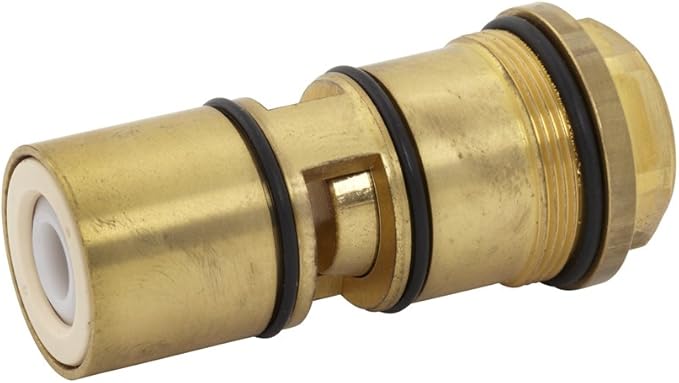

• Spring-loaded check valves prevent cross flow.
• Integrated stop valves allow for easy servicing.
• Hot limit safety stop reduces risk of scalding.

Product Highlights

This thermostatic valve maintains a constant water temperature by allowing the shuttle valve to move between hot and cold seats.

Product Information

Standard Information

• Brand: American
• MPN: R530

Technical Specifications

• UPC: 012611327605
• Inlet/Outlet Size: 0.75 inches
• Valve Function: Thermostatic
• Valve Type: Pressure Balanced
• Outlet Connection Type: NPT
• Number of Ports: 2
• Weight: 4.35 pounds
• Dimensions: 2.45 x 1 x 1.15 inches
